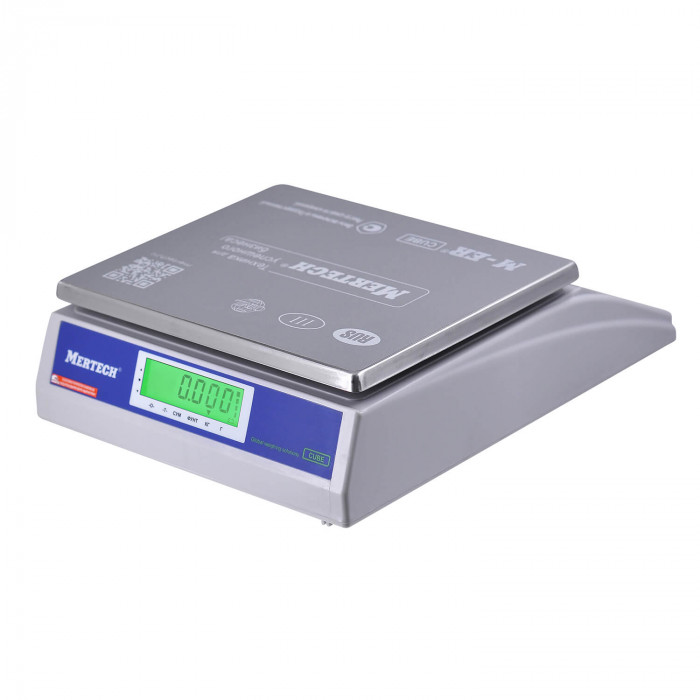

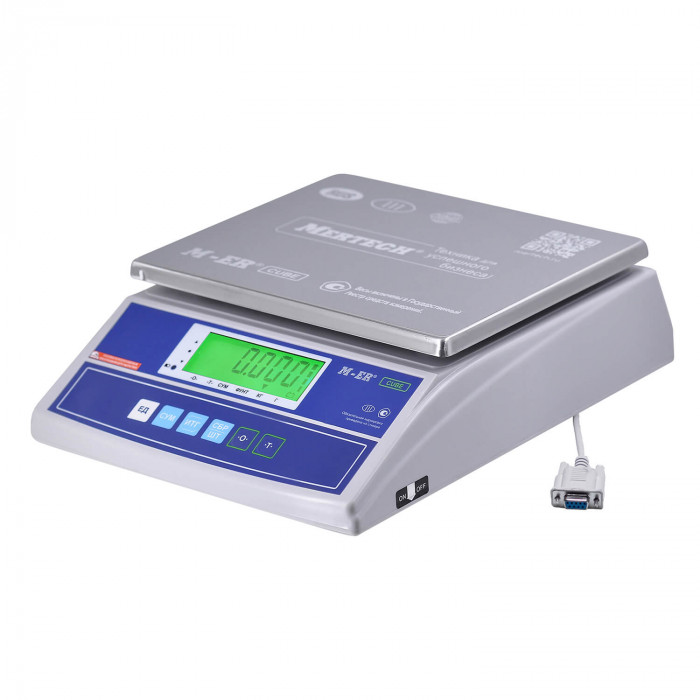

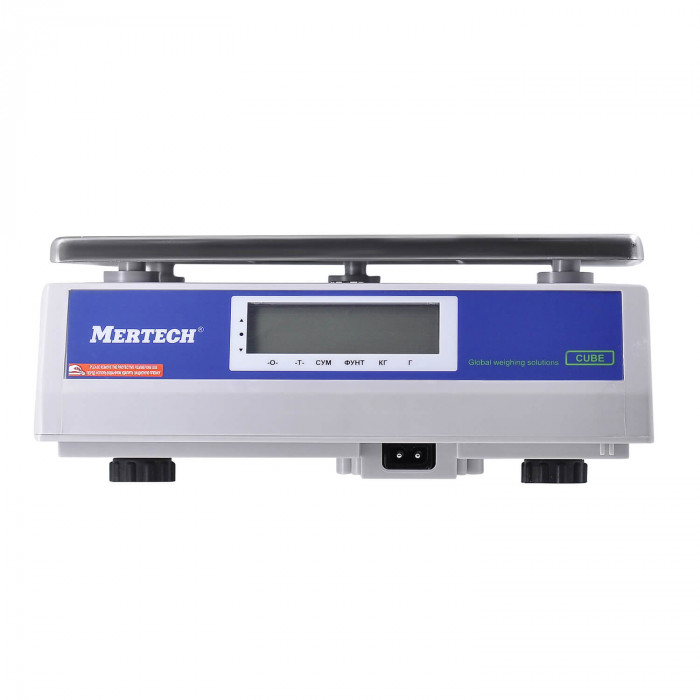

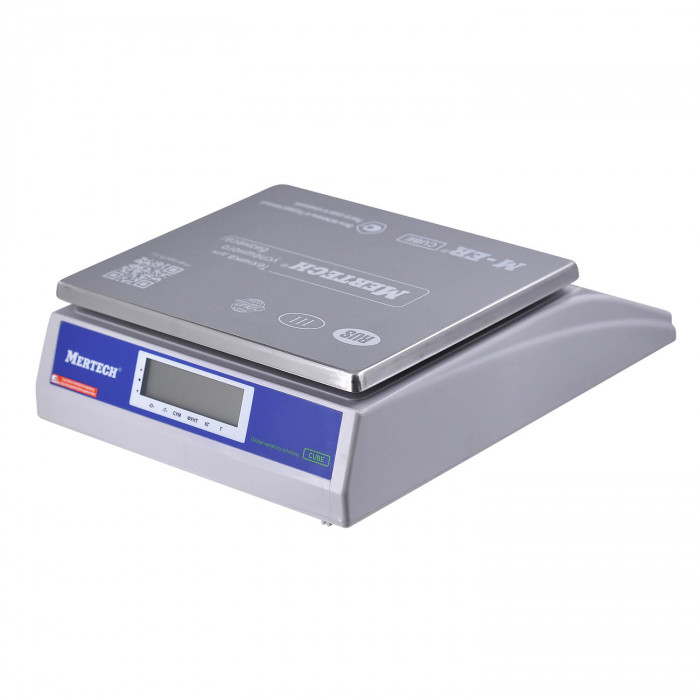

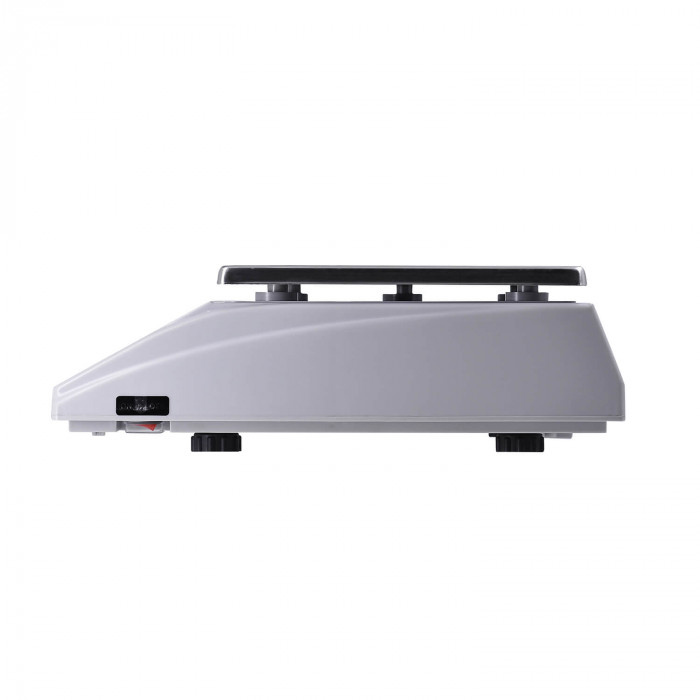

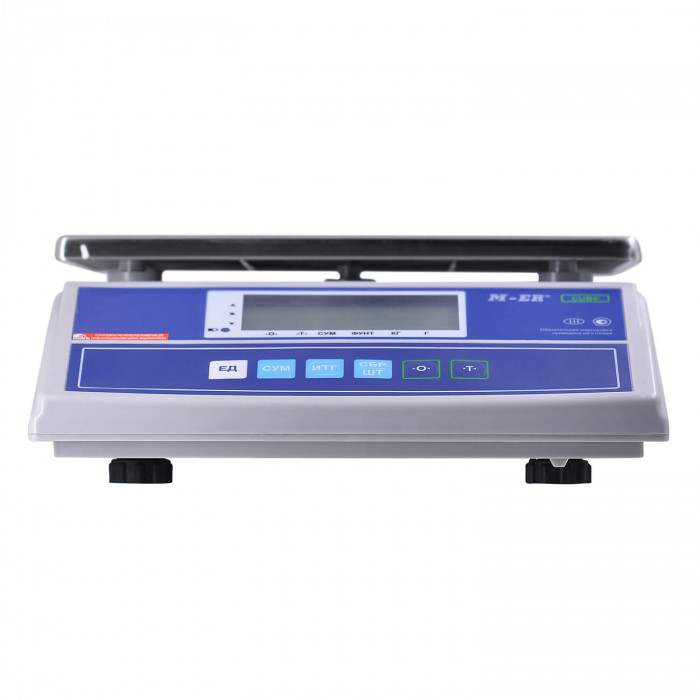

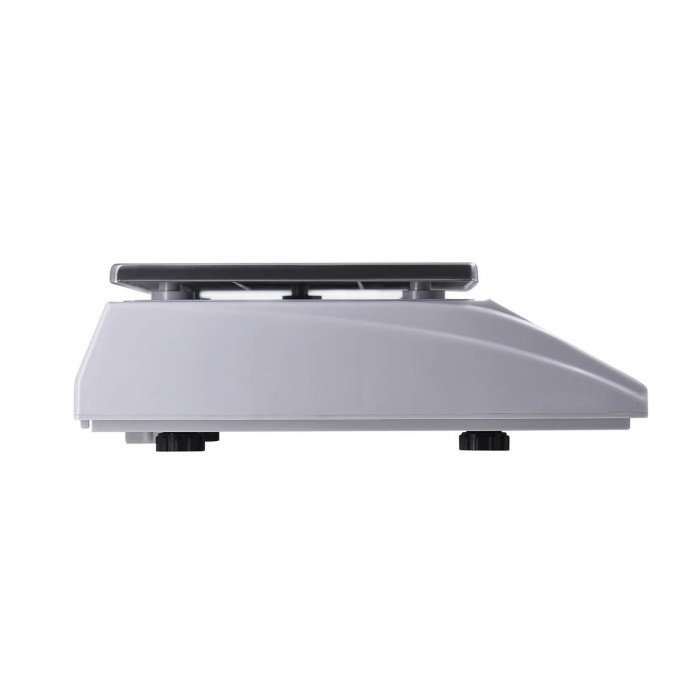

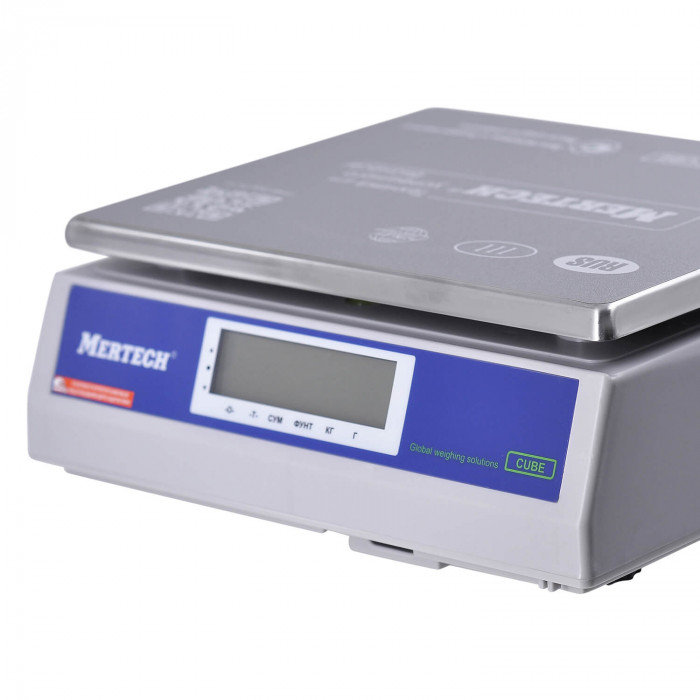

Packing table scales M-ER 326 AF-32.5 Cube LCD RS232 (dual display)

The new packing scales from the M-ER 326 AF "Cube" series are equipped with a dual LCD display. This model has a second screen to make it easier to weigh bulk goods. Now the results of packaging are visible not only to the operator, but also to the buyer, this solution increases the credibility of the store. Maximum weighing limit: 32 kg. The RS232 interface is used for data transmission.

Advantages of the model

The M-ER 326 AF-32.5 "Cube" table scale is suitable for weighing large retail shipments. Users often weigh bulk products on them: tea, coffee, spices, sweets, nuts, dried fruits. The "Cube" line has become popular due to its high measurement accuracy. We added a second LCD display to the case to make using the device even more convenient.

There are several programs in the control menu:

• classical weighing;
• summing multiple values;
• comparative weighing;
• correction for tare weight;
• counting mode (counting items);
• data transmission via RS232.

The model is included in the state register of measuring instruments. It can measure weight in kilograms, grams, and pounds. The display format of the results can be easily switched in the menu. Each device must be checked before it is delivered to the owner.

Specifications

The table scales have a reliable housing made of durable materials. The frame and panels are made of sturdy plastic. The weighing platform with an area of 255 by 210 mm is made of stainless steel. It is convenient to weigh goods on a large enough platform. All metal parts undergo double galvanization, which creates corrosion protection.

Metrological characteristics:

• Maximum value: 32 kg;
• price of one division: 5 gr;
• Minimum value: 100 grams.

A membrane keyboard is used for control. The results are displayed on two LCD screens with 6 digits of indication on each. The size of the symbols on the displays is 8 by 21 mm. Inside the case there is a load cell with an increased number of divisions. The mechanism can withstand short-term overloads, 3 times the maximum measurement limit. There is an RS232 port on the case.

The packaging scales are guaranteed for 2 years. You can work with them at a temperature not lower than -10 °C. A dust and moisture proof cover is provided for operation in difficult conditions. To order electronic scales at the lowest price, leave a request on the MERTECH website.
