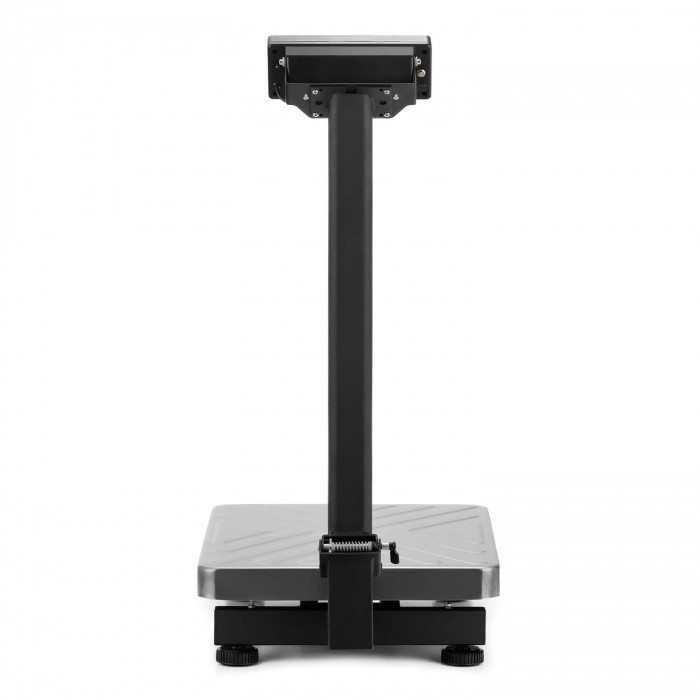

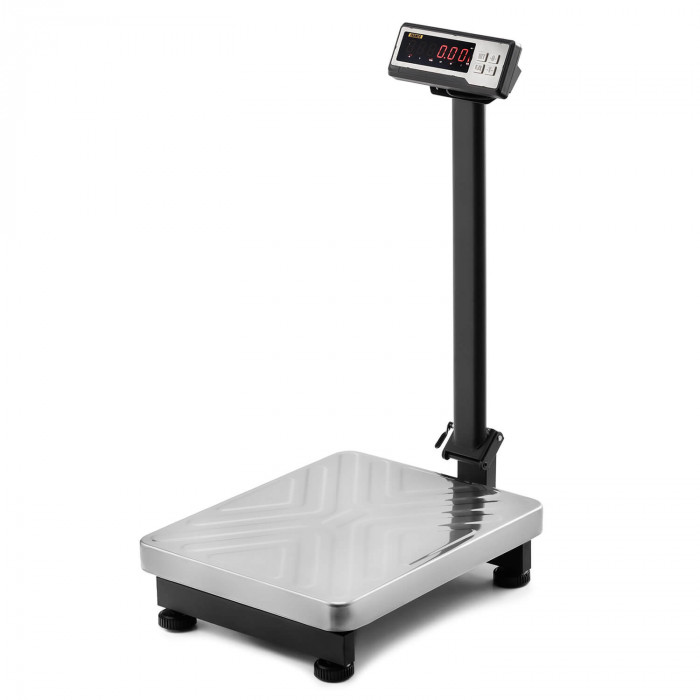

Filling floor scales M-ER 334 ACFP-150.20/50 (520*420) LED

The M-ER 334 ACFP-150.20/50 LED packing scales are a reliable solution for trade, warehouses, logistics centers and manufacturing enterprises. The model is included in the State Register of Measuring Instruments and is supplied with state verification, so it can be used in commercial calculations. The scales operate in the range from 0.4 kg to 150 kg and provide stable accuracy over the entire measurement range. When turned on, the device undergoes self-diagnosis and outputs data to a bright LED display with large characters that are easily readable in any light. It is a convenient and durable equipment for daily work.

Design features

The scales are based on a durable metal frame with powder coating, which protects the structure from corrosion and extends the service life of the equipment. The 420×520 mm platform is made of stainless steel. Overall dimensions are 425x625x865 mm. It is convenient to put boxes, containers, boxes and goods of various shapes on it. An accurate result is provided by one highly sensitive load cell, designed for multiple overloads and stable operation under intense load.

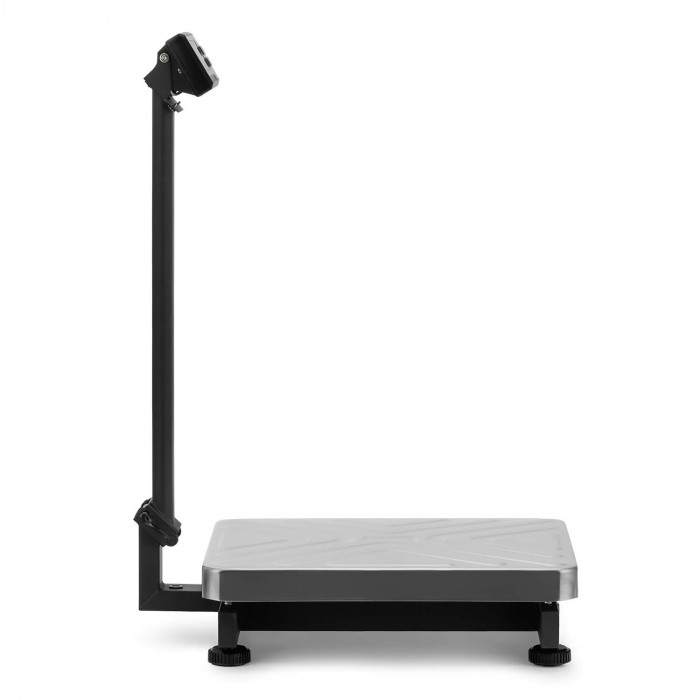

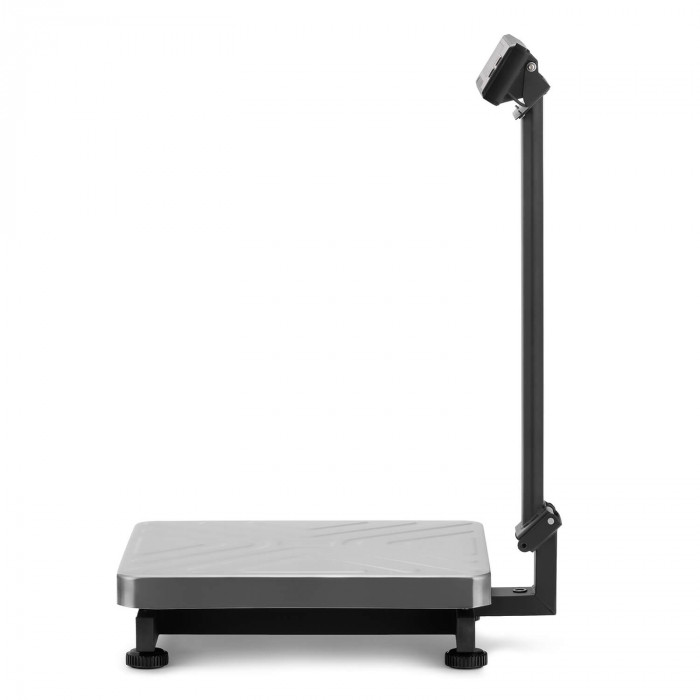

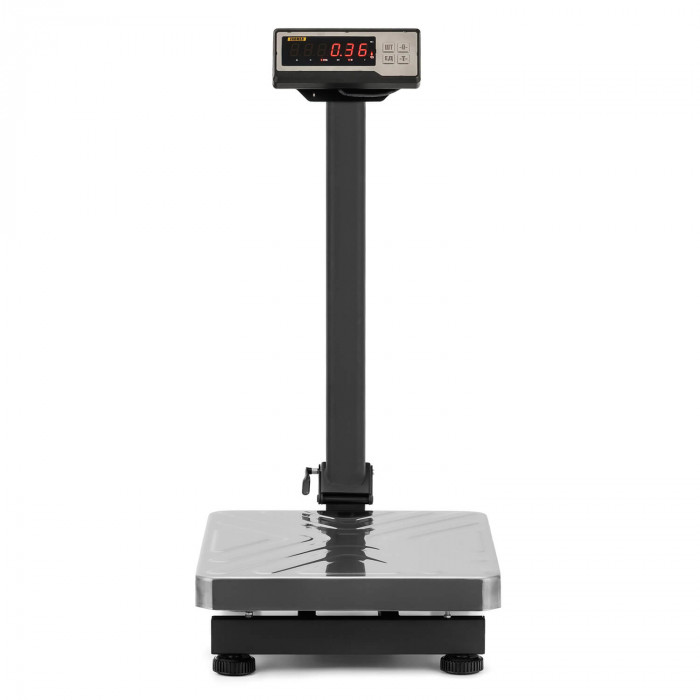

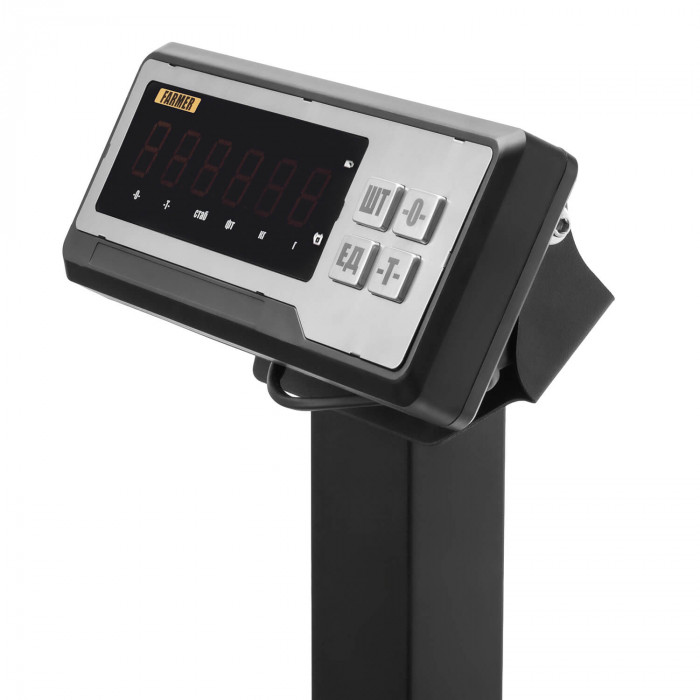

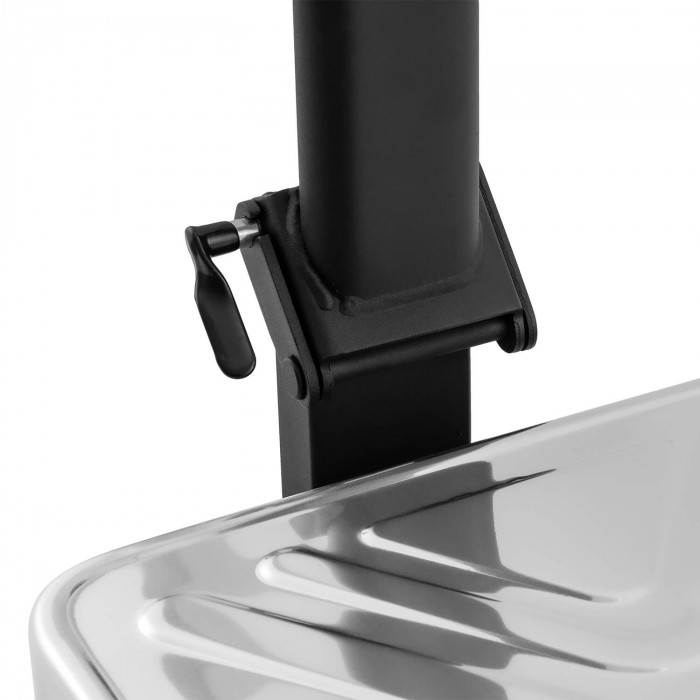

The folding stand makes it easier to place the scales in the workplace. It has an LED display with large 11×20 mm symbols. The display remains clearly visible at different angles and in low-light conditions. The push-button keyboard provides access to basic functions: zeroing, selecting units of measurement, working with containers, and counting mode. When the permissible load is exceeded, the scale provides an audible and visual signal, protecting the sensor from damage.

Key design elements that make the model comfortable and reliable:

• reinforced metal frame with powder-coated anti-corrosion coating;
• bright LED display with large indication on a folding stand;
• vandal-proof control panel and reinforced case sealing.

Advantages of the model

The scales support several modes of operation: simple weighing, packing according to preset limits, counting items of the same weight and sampling the weight of containers in the full range. The discreteness of 20/50 g ensures the accuracy required when working with medium and high-mass products.

The model operates according to a two-interval measurement scheme: up to 60 kg and up to 150 kg. In the first interval, the division price is 20 g, in the second — 50 g. This scheme provides more accurate readings in the lower range compared to single-band models. The dual-interval design also reduces the minimum load and makes the scales convenient for packing and handling containers.

The scales operate confidently at temperatures from -10 to +40 °C, so they are suitable for shops, warehouses and industrial premises. The built-in high-capacity battery ensures long-term autonomous operation, and MERTECH's energy-saving technology controls charge consumption. Each model undergoes state verification and meets the requirements of GOST. The scales have an official two-year warranty.

The main advantages of the model:

• accuracy, confirmed by state verification and registration in the State Register;
• large 420×520 mm platform for handling bulky loads;
• two-interval measurement scheme for increased accuracy in the lower range;
• bright LED display with high readability;
• autonomous operation from an increased capacity battery;
• resistance to intense loads and temperature fluctuations.

Offer

The M-ER 334 ACFP-150.20/50 LED packing scale is a reliable choice for those who value accuracy, stability and durability. Place an order on the official MERTECH website. We deliver equipment all over Russia, carry out verification, provide warranty and support customers at all stages of operation.
