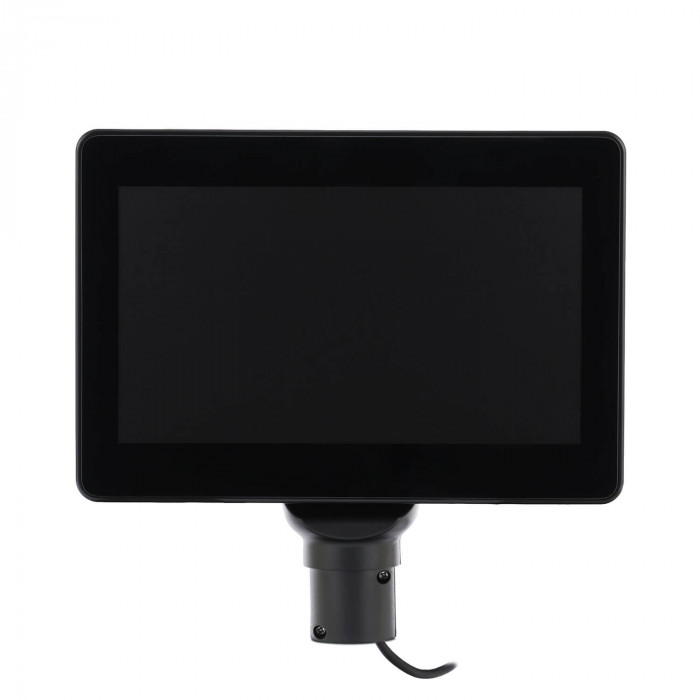

Buyer's CD700 (7 inch) additional display for the M-ER 725 scale

A modern customer's display with a TFT screen and support for multi-color display is an ideal solution for shops, supermarkets and retail outlets where not only functionality is important, but also aesthetics of service. The device was created taking into account modern requirements for the display of information and the visual comfort of customers.

Clear and bright screen

The TFT display with a resolution of 800x480 pixels and a brightness of up to 350 cd/m2 provides excellent readability of text and graphics even in bright light. The 24x48 dot matrix used guarantees high-definition characters, and the multi-color backlight allows you to flexibly design the display in the store's corporate colors or to focus on promotions and discounts.

Displaying information

2 lines of 20 characters are placed on the screen — a total of 40 characters at a time. 96 standard alphanumeric characters, 13 international character sets, and 1 custom character set are supported. This makes the display versatile for a multilingual environment and allows you to display both prices and marketing messages.

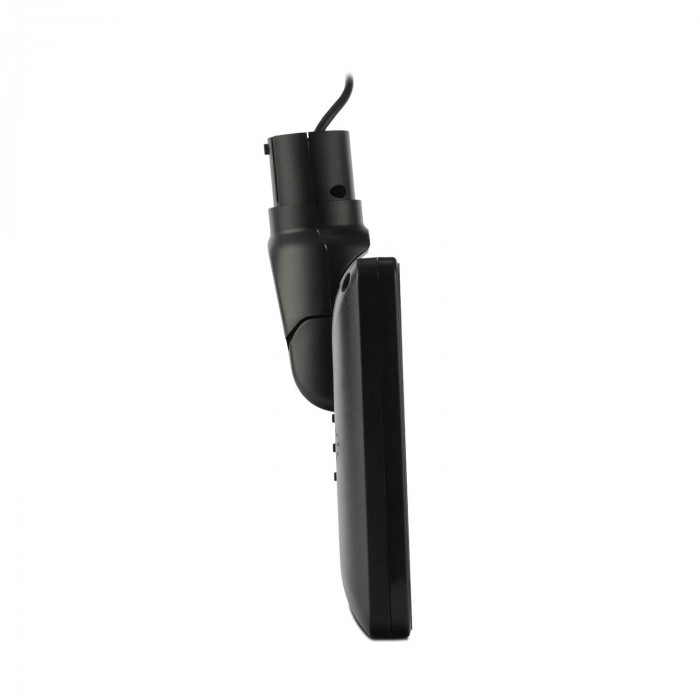

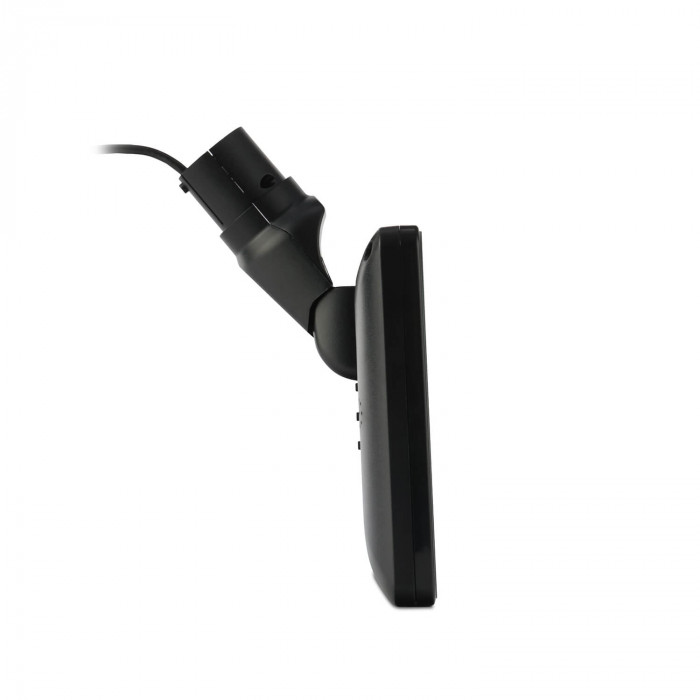

Flexibility and ergonomics

The device supports a variable tilt angle and adjustable rack height, which makes it easy to adjust the display to the features of the retail location. This flexibility makes it convenient to use at cash registers with different heights and layouts.

Reliability and durability

The average time to failure (MTBF) is 25,000 hours, which guarantees long-term and stable operation. The operating temperature range is from 0 to +40 °C, and the storage range is from -10 to +50 °C. The device operates in relative humidity conditions from 30% to 85% during operation and from 10% to 90% during storage. This makes the display resistant to temperature and humidity fluctuations in the trading floor.

Low power consumption

The power supply is from a 5 V source, the maximum power consumption is only 2.5 watts. The device can be used with an external power adapter, which simplifies its integration into various cash register systems.

Interfaces and compatibility

The display is compatible with common connection interfaces (to be specified depending on the model). It is also possible to support standard data exchange protocols, which makes it easy to integrate the device into a POS system. There is support for various image formats, including custom logos and simple graphics.

Structural strength

The case is made of durable ABS plastic, which provides protection against mechanical damage and wear. Although the IP rating is not specified, the device is designed for use in standard store or office conditions.

Due to the combination of high-definition images, multilingual support, ergonomic design and reliability, this buyer's display will be an excellent addition to the cash register equipment in any trade formats.
