MERTECH PayBox 181 QR Code Scanner

MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
MERTECH PayBox 181 QR Code Scanner
Product Code: 4089
Reviews: (0)
In Stock
$0.00
Buy in one click
Specifications: (see all)
Areas of application
For 1C, For alcohol, For labeling, For pharmacy, For perfumes, For EGAIS, For store, For labeling shoes, For cigarettes, For EVOTOR, Medical
Audio and visual indication
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes

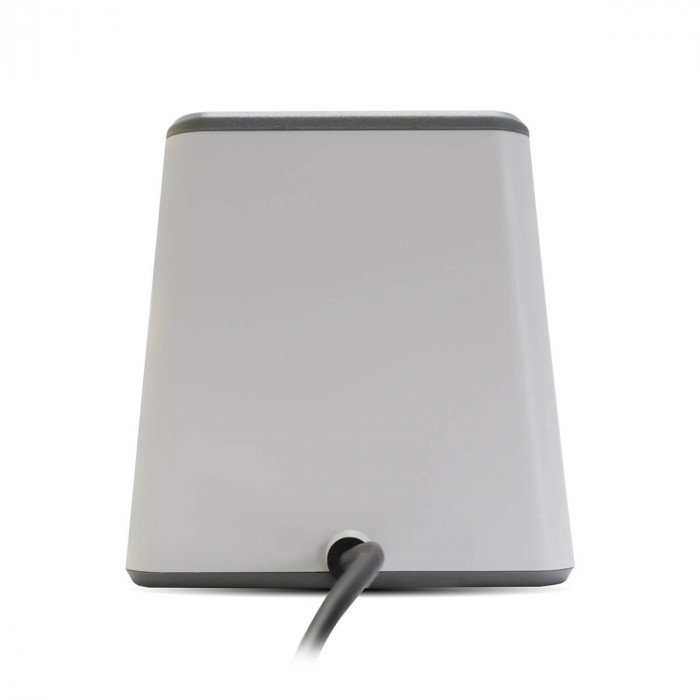

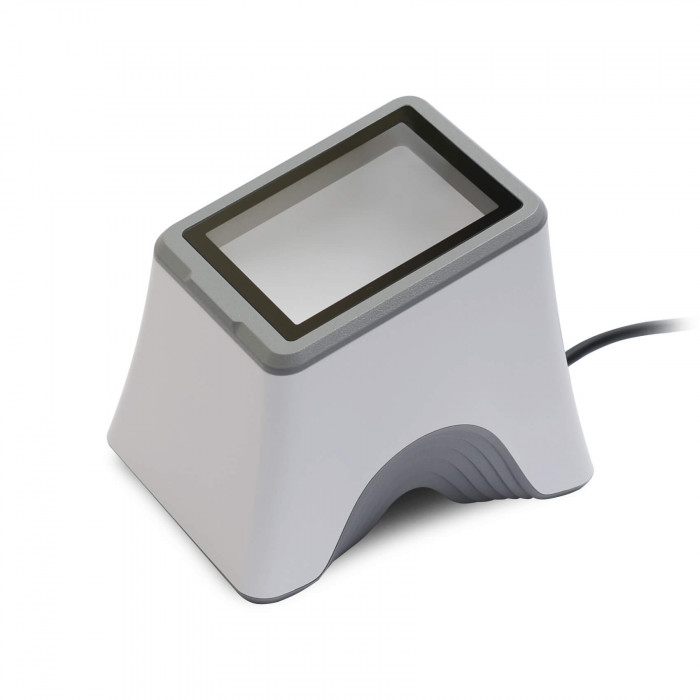

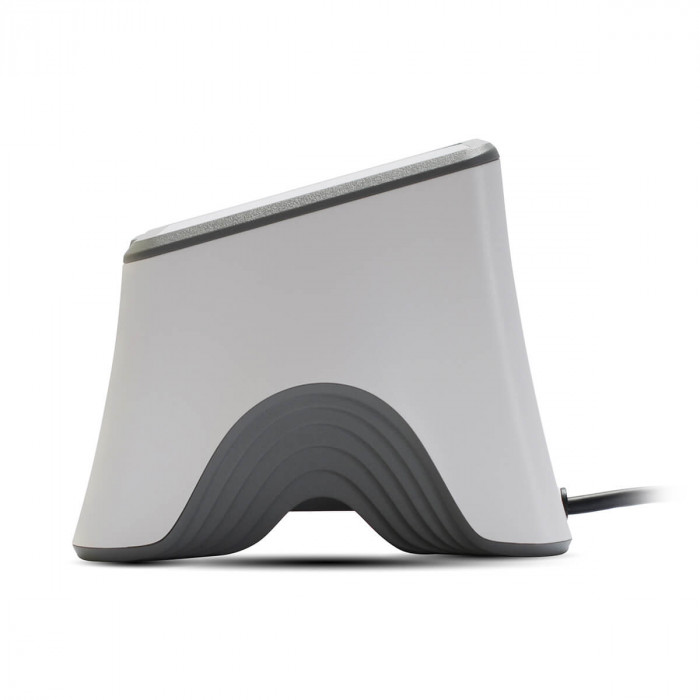

The MERTECH PayBox 181 scanner is designed to read QR codes. It is perfect for working in cinemas, museums, as well as retail outlets with a heavy flow of visitors. The Photo 2D Image scanning module recognizes 1D and QR codes.

Technical specifications

The innovative SuperLead technology is implemented in the design. It was developed by MERTECH . SuperLead technology provides ultra-high recognition speed: up to 300 scans in 1 second.

Technical characteristics of the device:

  • Recognition range: 110 mm.
  • Minimum contrast ratio: 20%.
  • Resolution: 3.9 mil.
  • The LED 6500K backlight is white.
  • Dust and moisture protection class: IP 54.

The case is made of durable plastic. Device size 135*105*110 mm. The structure can withstand heavy impacts. Falls from a height of up to 150 cm will not affect the operation of the device.

A USB and USB-COM interface are used to connect to the database. The wired scanner can be connected to online sales registers of Evotor, Mercury, Shtrik, Atol and other manufacturers.

Advantages of the model

The MERTECH PayBox 181 is not inferior to expensive models in terms of reading speed. At the same time, the price of the device is affordable for a wide range of entrepreneurs. Let's list the advantages of a stationary scanner:

  • Reads barcodes from glossy and mirrored surfaces.
  • Recognizes damaged and indistinct markings.
  • It does not take up much space in the cash register area.
  • Syncs with the database without lengthy configuration.

The well-thought-out case shape makes it easier to pay for purchases via smartphone. The customer does not need to turn the phone around, risking dropping it on the floor. It is enough to attach the smartphone to the top panel for quick reading of information.

Place an order

We offer to buy a MERTECH PayBox 181 wired scanner at the factory price. Orders are delivered to all regions of Russia. Choose the supplier closest to you from the list of dealers to buy the equipment at no extra charge. Leave your request in the online store and wait for the manager's call.

Areas of application
For 1C, For alcohol, For labeling, For pharmacy, For perfumes, For EGAIS, For store, For labeling shoes, For cigarettes, For EVOTOR, Medical
Audio and visual indication
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes
Barcode sensitivity
± 65° / 360° / ± 60°
Body material
ABS plastic
Colour
White
Connection type
Wired
Drop test
It can withstand multiple falls from a height of 1.5 m.
Equipment
Scanner; Power cable; Instructions; Warranty card
Food
5 V DC
Gross weight
0.297 kg
Guarantee
3 years old
Interface
USB-HID; USB-COM emulation
Masterbox sizes
46.5x44.5x27 cm
Masterbox weight, kg
8,036 kg
Minimum barcode contrast
20%
Operating temperature
-20°C ~ +50°C
Overall dimensions (WxDxH), mm
135x105x100
Package dimensions (1 pc.)
14x11x12.5 cm
Permissible humidity
0% ~ 95%
Quantity in the masterbox, pcs
24 pieces
Resistance to external influences
IP54
Scanner resolution
640(H)x480(V)Px
Scanner type
Stationary
Scanning coverage angle
40.5° (H) x 31 ° (V)
Scanning range
Up to 110 mm
Scanning speed
300 scans/sec
Storage temperature
-30°C ~ +80°C
Supported 1D barcodes
UPC; EAN; Code 128; Code 39; Code 93; Code 11; Matrix 2 of 5; Codabar; Interleaved 2 of 5; Mis Plessey; GSI DataBar; China Postal; Korean Postal
Supported 2D barcodes
QR Code
The backlight
White 6500K LED
Type of scanning module
2D image
Weight
305 grams
