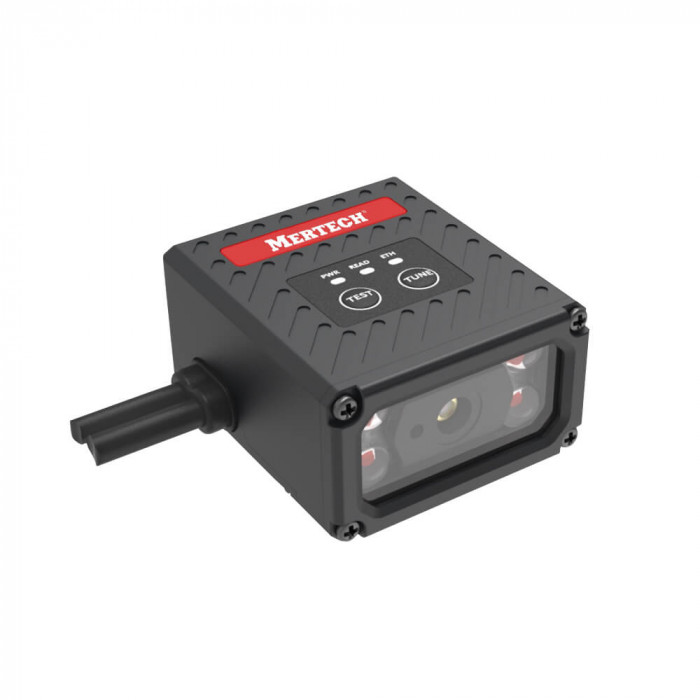

MERTECH X27 L-ARF-V Industrial Barcode Scanner

Attention: The X27 L-ARF-V series scanners are available in various versions, differing in functionality, connection interfaces and mounting method. Before buying, make sure that the selected model meets the requirements of your project. All modifications have an industrial design and high reading accuracy, but they are focused on different automation tasks.

Configuration and decoding of the modification

The scope of delivery includes the MERTECH X27 L-ARF-V industrial scanner, a 3 m long RS-232 control cable for the X27/X25/C20 scanner and an Ethernet interface cable for the X27/X35 scanner. RS-232 control cable number: 61ME.0262.E.00. Ethernet interface cable number: 61ME.0166-A-01.

The name of the modification MERTECH X27 L-ARF-V reflects the key features of the device:

• L — standard decoding.
• A — Autofocus.
• R — red backlight.
• F — The lens is 6 mm.
• V — 1.3 MP resolution.

The X27 L-ARF-V modification is suitable for projects that require industrial barcode reading, autofocus, red backlight, 6 mm lens and 1.3 MP resolution. The included cables allow you to connect the scanner via RS-232 and Ethernet.

The X27 L-ARF-V is an industrial scanner with artificial intelligence and liquid autofocus. It is designed for ultra-fast and accurate reading of 1D and 2D codes, including Data Matrix, QR, PDF417, Aztec, even at high speeds of objects and variable lighting.

The X27 model is available in several versions. The main version is the X27 L-ARF-V. Additional variants of this series are considered separately.

Key Advantages of X27 L-ARF-V

• AI decoding: multithreading and speeds of up to 120 codes per second.
• Autofocus on a liquid lens: focusing without mechanics, range 80-600 mm.
• Combined illumination: automatic selection between red and white light for all surfaces.
• High resolution: 1280×1080 pixels, frequency up to 120 Hz — reliable reading of microcodes and DPM.
• Reliability: IP65, ESD protection up to ±8 kV, temperature range from -10°C to +50°C.

Application of X27 L-ARF-V

• Honest Mark labeling: reading Data Matrix codes on any product, from milk to shoes and medicines.
• Production lines: marking control on high-speed packaging and sorting systems.
• Warehouse logistics: acceptance, aggregation, sorting of labeled goods, installation over conveyors.
• Electronics and DPM: recognition of micro and laser markings on chips, boards, and components.
• Automotive industry: reading codes in areas of vibration, bending, at different heights of the object.
• Pharmaceuticals: working with ampoules, vials, and blisters in conditions of transparency and curvature.

Interfaces and compatibility

• Ethernet: TCP/IP, Modbus TCP, Profinet.
• RS232 for serial communication.
• Isolated inputs/outputs: NPN, PNP, relay.

The X27 L-ARF-V can be easily integrated into MES, SCADA, 1C, PLC systems and any modern production platforms.

Analytics: X27 L-ARF-V in marking and "Fair Sign" systems

The X27 L-ARF-V was created with an eye to government and corporate labeling tasks. It stably processes even complex codes in real time and is able to completely solve the tasks of automated product traceability.

In production

• It is ideal for code control on the packaging line or at the aggregation stage.
• Eliminates errors when applying and reading codes, especially at high speeds up to 2 m/s.
• Supports code verification in on-the-fly mode, without stopping production.

In logistics

• Allows you to organize acceptance with aggregation and verification of codes without slowing down the processes.
• Reads codes from unstable objects, including pallets and crates.
• It is suitable for integration into sorting modules, conveyors, receiving posts.

Thus, the X27 L-ARF-V is a versatile and productive scanner that ensures compliance with labeling requirements and at the same time increases the overall efficiency of logistics and production processes.

Advantages of X27 L-ARF-V for labeling and logistics

• Processing speed is up to 120 codes/sec.
• Autofocus — stable scanning without adjustment.
• Working with DPM, micro-Data Matrix, and corrupted codes.
• Support for Honest Sign, USAIS, 1C, and WMS.
• Industrial reliability — IP65, anti-ESD, vibration resistance.

The MERTECH X27 L-ARF-V is a strategic labeling digitalization solution that combines AI, autofocus, industrial reliability, and high integrability. By choosing the X27 L-ARF-V, you gain speed, accuracy, and confidence in every scan.
