Wired Barcode Scanner MERTECH NS031 Ai 2Core P2D USB, USB Emulation RS232 Black, 3m Cable

The MERTECH NS031 P2D is a new generation wired handheld 2D scanner designed for intensive work in retail, logistics and service areas. The model is focused on high scanning flow and difficult reading conditions, where speed, accuracy and stability of the equipment are important.

The scanner is equipped with a highly sensitive image module and a modern computing platform with support for intelligent image processing algorithms, which allows you to confidently work with labeling and small barcodes without loss of performance.

Advantages of the scanning module and performance

The MERTECH NS031 is based on a modern 2D Image scanner and a high-performance ARM Cortex A7 Dual Core processor with an additional NPU core. This architecture provides parallel data processing and high decoding speed — up to 350 scans per second while maintaining stable recognition quality.

Intelligent image processing algorithms allow you to confidently read small barcodes from 3 mil, as well as codes with reduced contrast — up to 15-20%. The scanner works correctly with damaged, faded labels, as well as with codes on mobile device screens and other complex surfaces.

A wide viewing angle of 40° × 31° and high sensitivity to the barcode position (tilt up to ±65°, deviation up to ±60°, 360° rotation) allow the operator to scan goods without precise alignment, which speeds up work at the checkout and during acceptance.

MERTECH NS031 supports all major 1D and 2D barcodes, including Data Matrix, QR Code, MicroQR, PDF417, and is fully ready to work with Honest SIGN and USAIS systems. The safe reading range reaches 380 mm, depending on the type and density of the code.

Housing, reliability and ergonomics

The scanner body is made of durable ABS + PC material (plastic and polycarbonate) and is designed for daily use in working conditions. The IP52 protection level ensures resistance to dust and accidental splashes.

The device can withstand multiple falls from a height of 1.5 m and up to 50 falls from a height of 1.8 m on a concrete surface, which reduces the risk of downtime and breakdowns during active operation.

The trigger button resource is designed for 5 million triggers. Light, sound and vibration indications are used to confirm successful reading, which is convenient when working in noisy areas.

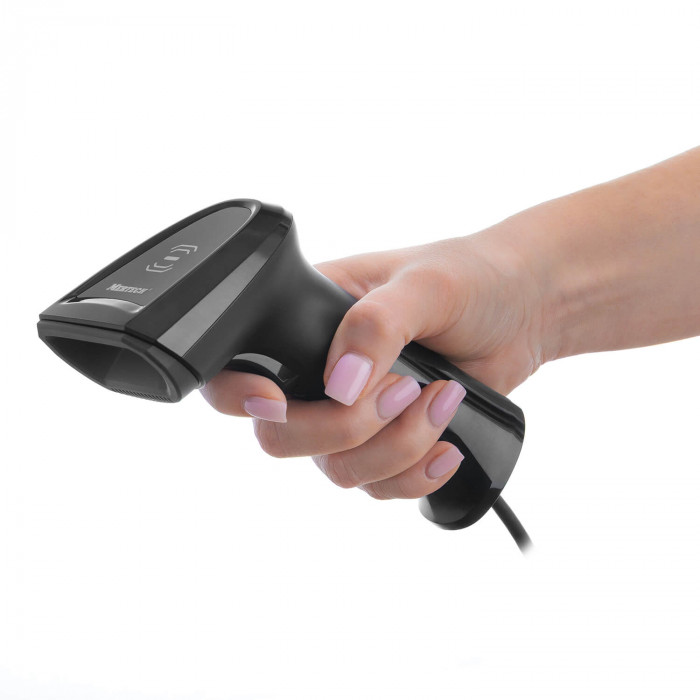

Light weight — only 132 g — and compact dimensions of 168×78×70 mm make the scanner convenient for long-term operation without increased load on the brush.

Connection and integration

The MERTECH NS031 is connected via USB 2.0 and supports USB-HID and USB-COM (emulation) modes, as well as RS232 (optional). The scanner does not require complex configuration and can be easily integrated with cash register and commodity accounting systems.

Automatic scanning mode (hands-free) is supported, which allows you to use the device as an additional hand scanner for self-service cash registers and kiosks.

Scope of application

MERTECH NS031 P2D is suitable for retail stores and supermarkets, pharmacies and medical institutions, warehouses and logistics centers, self-service cash desks, pick-up points, catering and service companies. The model is designed for scenarios with a large flow of goods and high service speed requirements.

Order the MERTECH NS031 from the manufacturer

On the MERTECH company's website, you can buy a MERTECH NS031 P2D wired barcode scanner at the manufacturer's price. The equipment comes with an official warranty and is equipped with a 3-meter-long USB cable. We deliver throughout Russia and will help you find a solution for your business needs.
