Stationary Barcode Scanner MERTECH 7800 Ai 2Core P2D USB, USB Emulation RS232 black

Name: Stationary Barcode Scanner MERTECH 7800 Ai 2Core P2D USB, USB Emulation RS232 black
SKU: 4236
Availability: OutOfStock

Sold

Product Code: 4236

Reviews: (0)

$0.00

Specifications: (see all)

13 MIL

0-200 mm

5 MIL

0-80 mm

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical

Audio and visual indication

Yes

Automatic scanning

Yes

The MERTECH 7800 Ai 2Core P2D USB is a professional—level stationary 2D presentation image scanner designed to read one-dimensional and two-dimensional barcodes, including codes of the Honest MARK and USAIS marking system. Thanks to the new ARM Cortex A7 Dual Core processor with a clock frequency of up to 1.2 GHz, the device demonstrates high processing speed and stable operation even under heavy load.

The scanner confidently reads codes from paper labels, packages, smartphone screens and glossy surfaces. A color CMOS sensor with a resolution of 1280×1080 pixels provides accurate recognition of even small and low-contrast characters. The scanning speed reaches 350 scans per second, which makes the model optimal for retail outlets, pharmacies, pick-up points and warehouse areas.

The MERTECH 7800 Ai 2Core P2D USB supports manual and automatic scanning modes, as well as USB-HID and USB-COM interfaces (RS232 emulation). The rugged IP54 enclosure can withstand falls from a height of up to 1.5 m, protects against dust and moisture, ensuring a long service life of the equipment. Sound and light indications confirm successful reading.

Advantages

Dual-core ARM Cortex A7 Dual Core processor up to 1.2GHz
High resolution CMOS sensor 1280×1080 pixels
Up to 350 scans per second
Recognition of codes with a contrast ratio of 15%
Reading from screens and reflective surfaces
The minimum barcode element is from 3 mil
Field of view 78° × 66°
Supports USB 2.0 (HID/COM) interfaces, optional RS232
Durable IP54 housing, resistant to drops up to 1.5m
Support for Russian accounting and labeling systems

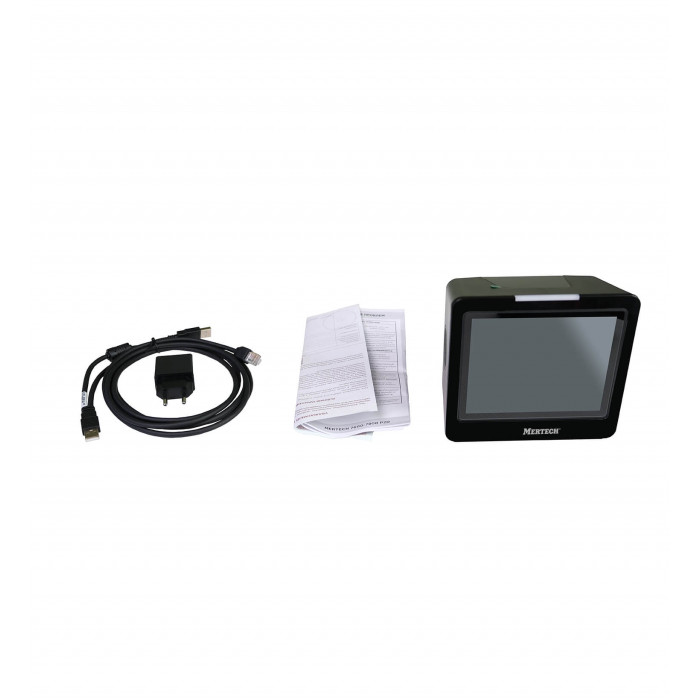

Equipment

MERTECH 7800 Ai 2Core P2D Scanner
USB Type A Cable (205 cm)
User's Instructions
Warranty card

Appointment

The MERTECH 7800 Ai 2Core P2D USB is designed for professional use in retail, pharmacy chains, warehouses and self-service cash desks. The model combines speed, accuracy and reliability, ensuring stable reading of any barcodes in conditions of high load and heavy flow of customers.

13 MIL

0-200 mm

5 MIL

0-80 mm

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Box dimensions, mm

152*149*80

Colour

Black

Connection type

Wired

Drop test

It can withstand multiple falls from a height of 1.5 m.

Equipment

Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging

Food

5V/1000mA

Gross weight

630

Guarantee

3 years old

Interface

USB-HID, USB-COM emulation, RS232 — optional

Minimum barcode contrast

15%

Minimum scan resolution

3 MIL

Operating temperature

0°C ~ +50°C

Overall dimensions (WxDxH), mm

151mm*141mm*93mm

Permissible humidity

0% ~ 95%

Processor

ARM Cortex A7 Dual Core up to 1.2GHz

Resistance to external influences

IP54

Scanner resolution

1280(H)x1080(V)Px

Scanner type

Stationary

Scanning coverage angle

78º(h)x66º(v)

Scanning range

Up to 210 mm

Scanning speed

350 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

Supported 2D barcodes

PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin

The backlight

Red 617nm LED

Type of scanning module

2D image

USAIS support

Yes

Weight

595 g
