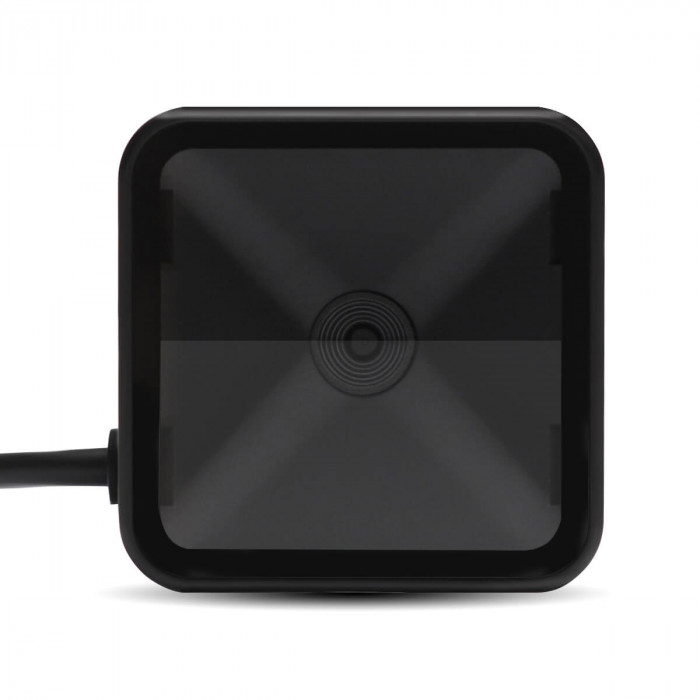

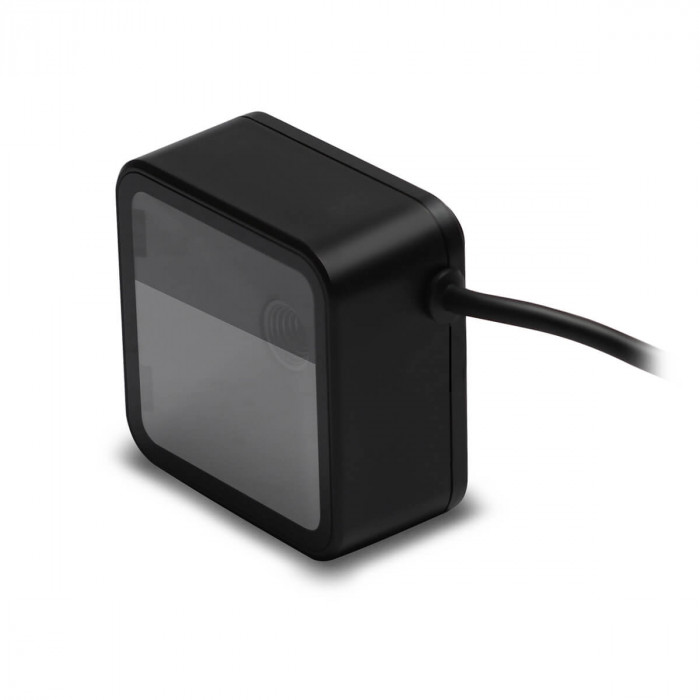

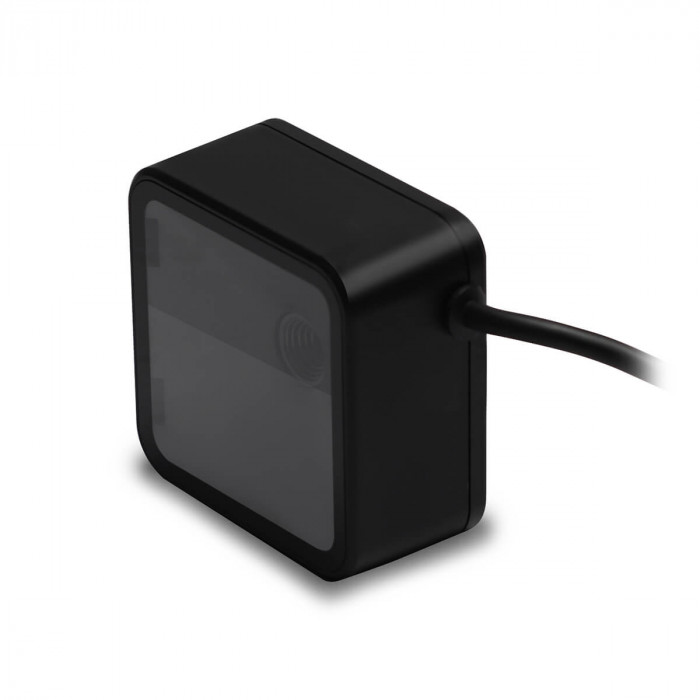

Embedded Barcode Scanner MERTECH N122 P2D USB, USB Emulation RS232 black

Name: Embedded Barcode Scanner MERTECH N122 P2D USB, USB Emulation RS232 black
SKU: 4260
Availability: OutOfStock

Sold

Product Code: 4260

Reviews: (0)

$0.00

Specifications: (see all)

13 MIL

0-50 mm

5 MIL

0-20 mm

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

The MERTECH N122 P2D is an embedded two-dimensional scanner from MERTECH. It recognizes all known 1D and 2D barcodes. Thanks to the patented SuperLead technology, the reading is instantaneous. The compact scanner is suitable for installation in vending machines. You can also use it as a mobile barcode reader.

Technical specifications

The size of the device is 67*67*35 mm. The small device weighs only 100 g. The body of the model is made of primary plastic and polycarbonate (ABC +PC). The reinforced structure can withstand mechanical shocks and falls from a height of up to 1.5 m. Degree of protection of the case from dust and moisture: IP54.

Let's list the main characteristics of the model:

Reading speed: 100 scans per second.
Scanning range: 100 mm.
Minimum barcode contrast: 20%.
Coverage angle: 65*360*60 degrees.
Built-in backlight: 6500K white LED.
Scanner resolution: 752(H)x480(V)Px.
Power supply: 5V/220mA.

The MERTECH N122 P2D scanner is connected via a wired connection. USB-HID, USB-COM (emulation), and RS232 interfaces (optional) can be used to connect to the system. The package includes a USB cable with a wire length of 205 cm.

Advantages of the model

The embedded MERTECH N122 P2D scanner recognizes markings in difficult conditions. It can read data even from mirrored surfaces, from mobile phone screens. Thanks to the built-in backlight, the device recognizes damaged and poorly typed codes.

The device automatically wakes up from sleep mode if you bring a product with a barcode to it. The automatic mode speeds up customer service. The reading procedure is accompanied by an audible and visual indication.

The scanner connects to online sales registers of Mercury, Evotor, Shtrik, ATOL and other brands. Synchronization drivers are included in the package. The model is suitable for labeling alcohol and tobacco products, shoes, clothing, medicines and other goods.

Place an order

You can buy an embedded MERTECH N122 P2D scanner at the factory price. We sell equipment without a trade mark-up. The equipment is delivered through a well-developed dealer network. You can order the delivery of equipment to any city in Russia. Place an order in the online store or leave a request on the website to make a purchase.

13 MIL

0-50 mm

5 MIL

0-20 mm

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Box dimensions, mm

100*80*105

Colour

Black

Connection type

Wired

Drop test

It can withstand multiple falls from a height of 1.5 m.

Equipment

Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging

Gross weight

0.224 kg

Guarantee

3 years old

Interface

USB-HID; USB-COM emulation; RS232 - optional

Masterbox sizes

52x42x45 cm

Masterbox weight, kg

24.6 kg

Minimum barcode contrast

20%

Minimum scan resolution

5 MIL

Operating temperature

-0°C ~ +50°C

Overall dimensions (WxDxH), mm

67*67*35

Package dimensions (1 pc.)

10x8x10.5 cm

Permissible humidity

0% ~ 95%

Quantity in the masterbox, pcs

100 pieces

Resistance to external influences

IP54

Scanner resolution

752(H)x480(V)Px

Scanner type

Embedded

Scanning coverage angle

115º(h)x90º(v)

Scanning range

Up to 100 mm

Scanning speed

100 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal

Supported 2D barcodes

PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin

The backlight

White 6500K LED

Type of scanning module

2D image

USAIS support

Yes

Weight

100 g
