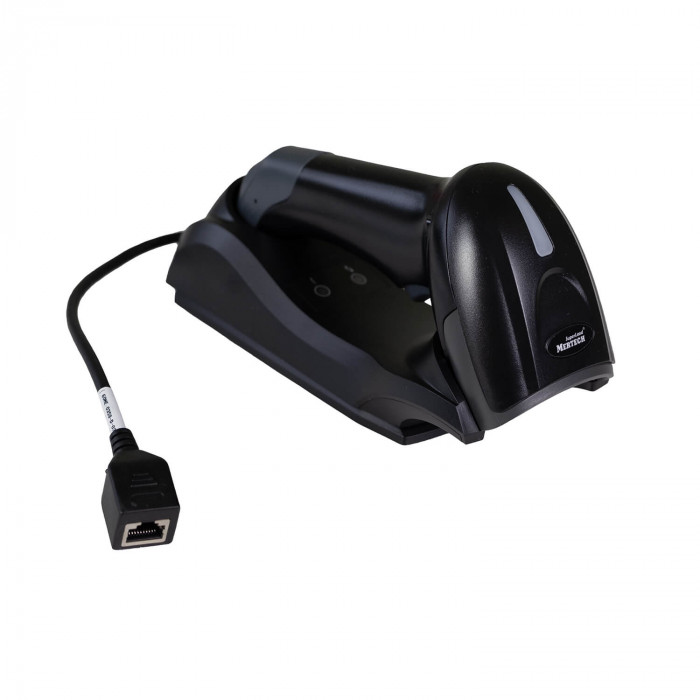

MERTECH CL-2310 BLE Dongle USB Black Wireless Barcode Scanner with Cradle

Sold
MERTECH CL-2310 BLE Dongle USB Black Wireless Barcode Scanner with Cradle
MERTECH CL-2310 BLE Dongle USB Black Wireless Barcode Scanner with Cradle
MERTECH CL-2310 BLE Dongle USB Black Wireless Barcode Scanner with Cradle
MERTECH CL-2310 BLE Dongle USB Black Wireless Barcode Scanner with Cradle
Product Code: 4851
Reviews: (0)
$0.00
Specifications: (see all)
13 MIL
40-170 mm
5 MIL
30-90 mm
Analogues of manufacturers
Proton, Cipherlab, Globalpos, Urovo, Idzor, Moyros, Poscenter, Cino
Areas of application
For 1C, For VLSI, For alcohol, For labeling, For pharmacy, For perfumes, For EGAIS, For store, For labeling shoes, For cigarettes, For warehouse, For Honest sign, For PVZ, For EVOTOR
Audio and visual indication
Yes

The kit includes a MERTECH CL-2310 BLE wireless scanner (black) and a Cradle stand. The kit is designed to work with the scanner in mobile or stationary mode. When the device is mounted on the holder, the "Hands-free" function is activated. A USB receiver is attached to the reader to transfer data from the scanner.

Brief presentation of the scanner

The model is synchronized with the online sales register using Bluetooth Low Energy 5.0 technology. The distance for wireless connection is 300 meters. BLE 5.0 technology saves battery power during operation. One charge is enough for 4 hours of active use.

Advantages of this model:

  • SUPERLEAD barcode scanning technology.
  • Bright white LED backlight for scanning.
  • Antireflect technology for glare suppression during reading.
  • Laser point target for easy targeting of the label.
  • 512 kilobytes of memory (4,000 USAIS codes, 15,000 DataMatrix).
  • Compatibility with online sales registers of any brands has been verified.
  • Easy adjustment of the device functions according to the instructions.

The wireless scanner is adapted to work with any barcodes. You can use it to register alcohol according to the USAIS, to work in the Honest Sign system. This model is suitable for any category of labeled products.

Cradle Stand Functions

The cradle rack is used for wireless device connection. It serves as a receiver and transmitter of the BLE signal. The holder can be mounted on the desktop or on the wall. The installation angle of the device is easily adjustable.

When the device is on the Cradle stand, the "Hands-free" function is activated. Barcode reading is performed automatically when the label enters the coverage area. If the device is not used for a long time, it goes into "Sleep mode". To activate it, it is enough to bring the label to the scanning module.

13 MIL
40-170 mm
5 MIL
30-90 mm
Analogues of manufacturers
Proton, Cipherlab, Globalpos, Urovo, Idzor, Moyros, Poscenter, Cino
Areas of application
For 1C, For VLSI, For alcohol, For labeling, For pharmacy, For perfumes, For EGAIS, For store, For labeling shoes, For cigarettes, For warehouse, For Honest sign, For PVZ, For EVOTOR
Audio and visual indication
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes
Barcode sensitivity
Tilt ± 65° / 360° Rotation / Deviation ± 60 °
Battery capacity
2600 mAh
Body material
ABC + PC (plastic + polycarbonate)
Box dimensions, mm
215*75*100
Built-in memory
Yes
Colour
Black
Connection type
Wireless
Drop test
It can withstand 30 falls from a height of 1.8 m on a concrete surface or multiple falls from a height of 1.5 m.
Equipment
Scanner, Cradle, USB Receiver, USB type A - micro USB Cable (105 cm), Instruction manual, Warranty Card, Packaging
Food
5V/100mA
Gross weight
290
Guarantee
3 years old
Interfaces
USB-HID; USB-COM emulation; RS-232 - optional; Bluetooth - BLE 5.0
Minimum barcode contrast
20%
Minimum scan resolution
3,9 MIL
Number of trigger triggers without breakdowns
5 million
Operating temperature
0°C ~ +50°C
Overall dimensions (WxDxH), mm
180*95*70
Permissible humidity
0% ~ 95%
Receiver power supply
5V/100mA
Resistance to external influences
IP54
Scanner power supply
5V/1000mA
Scanner resolution
640(H)x480(V)Px
Scanner type
Manual
Scanning coverage angle
40º(h)x32º(v)
Scanning range
Up to 370 mm
Scanning speed
100 scans/sec
Storage temperature
-40°C ~ +70°C
Support is an honest SIGN
Yes
Supported 1D barcodes
UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal
Supported 2D barcodes
PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin
The amount of internal memory
512 KB (more than 4,000 USAIS codes)
The backlight
White 3500K LED
Transmission range
Up to 300 m
Type of scanning module
2D image
USAIS support
Yes
Weight
210 g
