MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand

Sold
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
MERTECH CL-2210 BLE Dongle USB Black Wireless Barcode Scanner with Cradle Stand
Product Code: 4852
Reviews: (0)
$0.00
Specifications: (see all)
13 MIL
40-200 mm
5 MIL
30-90 mm
Analogues of manufacturers
Datalogic, Zebra, Mindeo, Sunlux, Newland
Areas of application
For 1C, For VLSI, For alcohol, For labeling, For pharmacy, For perfumes, For EGAIS, For store, For labeling shoes, For cigarettes, For warehouse, For Honest sign, For PVZ, For EVOTOR
Audio and visual indication
Yes

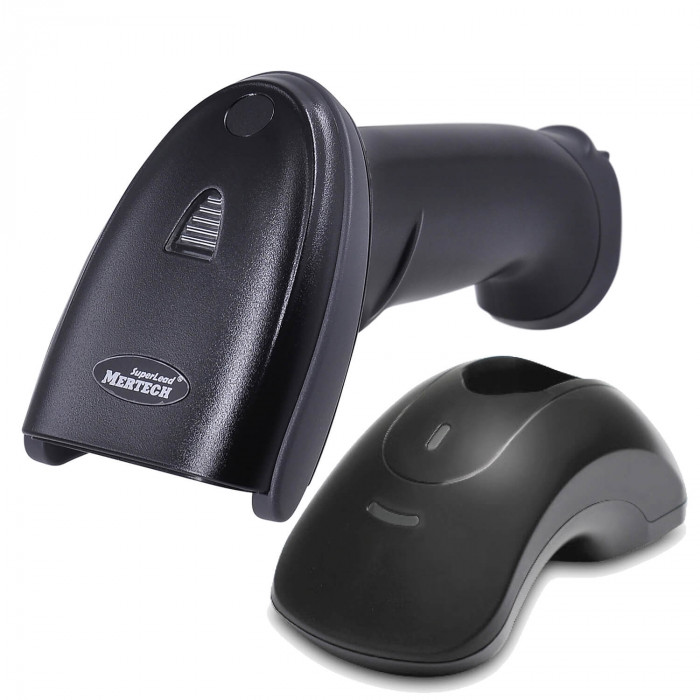

The kit includes a MERTECH CL-2210 BLE wireless barcode scanner (black) and a Cradle stand. The device is equipped with a USB receiver for transmitting information. The Cradle rack is used for remote connection and for work at the checkout.

Characteristics of the wireless scanner

The CL-2210 line belongs to the new generation of wireless scanners from MERTECH. In the new models, we have implemented improved SUPERLEAD technology and added the Antireflect glare suppression system. The device quickly recognizes barcodes of any size, reads labels from glare surfaces.

Main Features:

  1. Data processing speed: 100 scans/sec.
  2. Label reading distance: up to 370 mm.
  3. 3500K LED Antireflect backlight system.
  4. A bright contrasting target for targeting.
  5. Built-in memory of 512 kilobytes.

The reader recognizes all types of 2D and 1D barcodes, including Data Matrix codes. The device can be used to work with labeled goods. The device's operation meets all the requirements of the Honest SIGN system. The reader is suitable for alcohol metering.

The CL-2210 model connects to the online sales register using Bluetooth Low Energy technology. The receiver and transmitter of the BLE 5.0 signal is a stand. Transmission range: up to 300 m. In mobile mode, the device runs for 4 hours. The design provides a USB interface for wired connection.

Cradle Rack Application

Cradle is a charging and communication stand. The holder can be mounted on a table or mounted on a wall. The holder design allows you to adjust the angle of the device.

The device is fixed to the rack using a magnetic lock. After installing the device on the stand, the "Hands-free" mode is activated. You can use the configuration code to switch to USB-COM mode.

13 MIL
40-200 mm
5 MIL
30-90 mm
Analogues of manufacturers
Datalogic, Zebra, Mindeo, Sunlux, Newland
Areas of application
For 1C, For VLSI, For alcohol, For labeling, For pharmacy, For perfumes, For EGAIS, For store, For labeling shoes, For cigarettes, For warehouse, For Honest sign, For PVZ, For EVOTOR
Audio and visual indication
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes
Barcode sensitivity
Tilt ± 65° / 360° Rotation / Deviation ± 60 °
Battery capacity
2600 mAh
Body material
ABC + PC (plastic + polycarbonate)
Box dimensions, mm
215*75*100
Built-in memory
Yes
Colour
Black
Connection type
Wireless
Drop test
It can withstand 30 falls from a height of 1.8 m on a concrete surface or multiple falls from a height of 1.5 m.
Equipment
Scanner, Cradle, Receiver, USB, USB type A - micro USB Cable (105 cm), Brief instructions, Warranty card, Packaging
Food
5V/500mA
Gross weight
290
Guarantee
3 years old
Interfaces
USB-HID; USB-COM emulation; RS-232 - optional; Bluetooth - BLE 5.0
Minimum barcode contrast
20%
Minimum scan resolution
3,9 MIL
Number of trigger triggers without breakdowns
5 million
Operating temperature
0°C ~ +50°C
Overall dimensions (WxDxH), mm
170*95*70
Permissible humidity
0% ~ 95%
Receiver power supply
5V/100mA
Resistance to external influences
IP54
Scanner power supply
5V/1000mA
Scanner resolution
640(H)x480(V)Px
Scanner type
Manual
Scanning coverage angle
40º(h)x32º(v)
Scanning range
Up to 370 mm
Scanning speed
100 scans/sec
Storage temperature
-40°C ~ +70°C
Support is an honest SIGN
Yes
Supported 1D barcodes
UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal
Supported 2D barcodes
PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin
The amount of internal memory
512 KB (more than 4,000 USAIS codes)
The backlight
Antireflect, 3500K LED
Transmission range
Up to 300 m
Type of scanning module
2D image
USAIS support
Yes
Weight
192 g
