MERTECH 1300 GS P2D Wired Barcode Scanner black 3 m cable

Name: MERTECH 1300 GS P2D Wired Barcode Scanner black 3 m cable
SKU: 4877
Availability: InStock

Product Code: 4877

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

13 MIL

40-200 mm

5 MIL

30-100 mm

Analogues of manufacturers

Proton, Cipherlab, Globalpos, Urovo, Idzor, Moyros, Poscenter, Cino

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

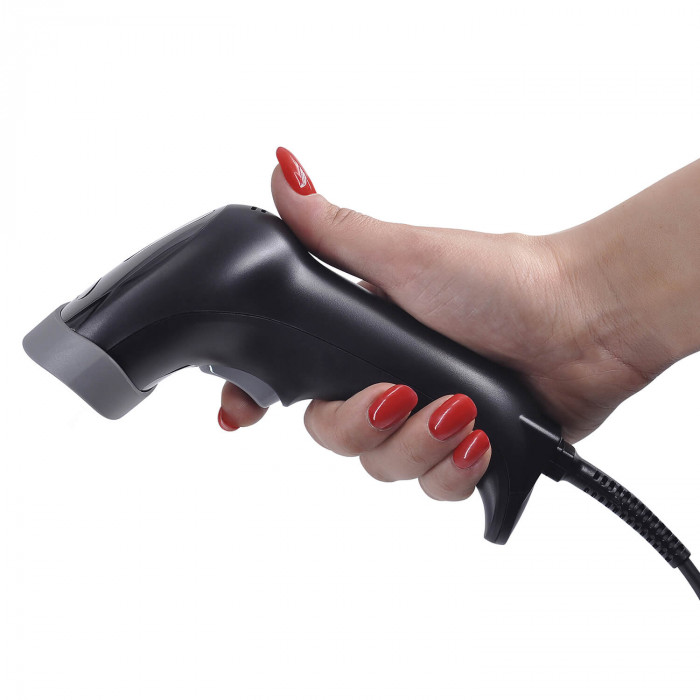

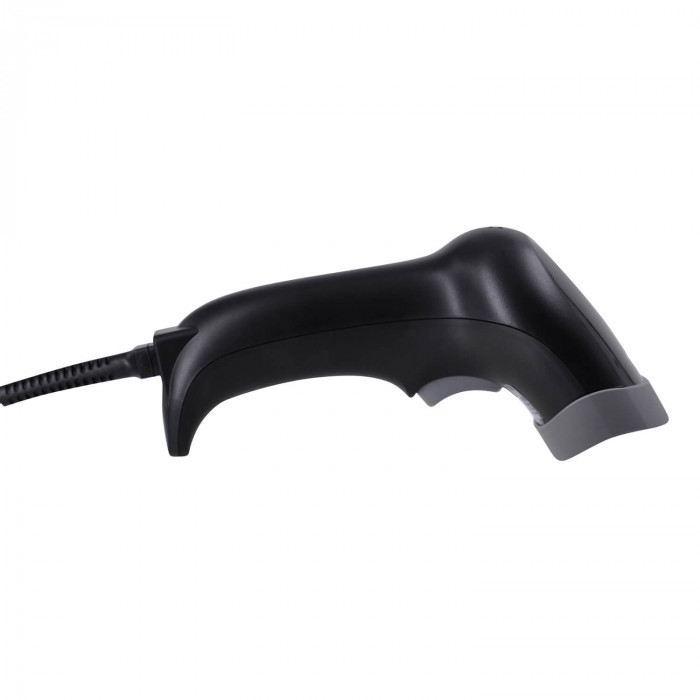

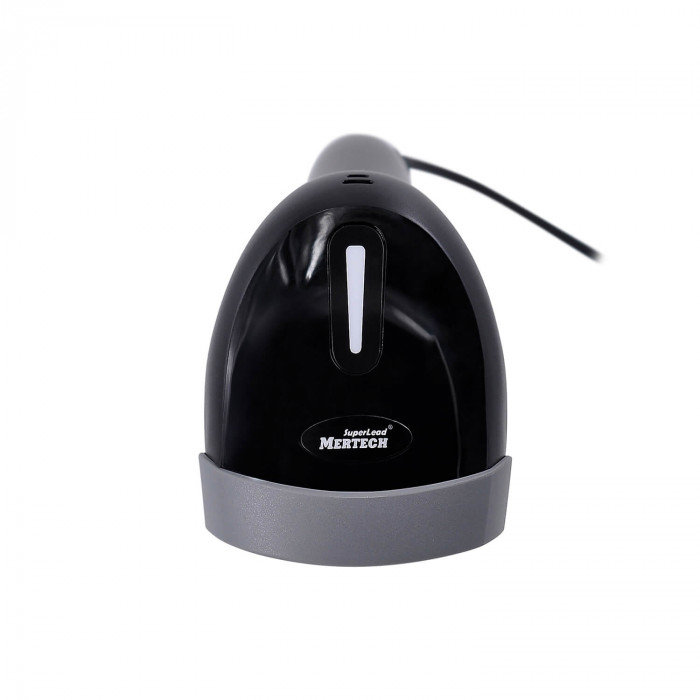

The MERTECH 1300 P2D SUPERLEAD wired barcode Scanner is a reliable and highly efficient barcode reader equipped with SUPERLEAD technology, which allows the device to recognize all popular encoding formats, including 1D and 2D codes such as PDF417, Data Matrix and QR. The scanner is ideal for use in retail and wholesale stores, as well as in the HoReCa industry. The device supports the USAIS and Honest SIGN systems, and also integrates seamlessly with 1C, VLSI and EVOTOR.

The difference between the scanning module

A special feature of the MERTECH 1300 P2D SUPERLEAD black 3m cable GS model is the use of a 2D Image Global Shutter scanning module. This module, unlike the version with the Roller Shutter, allows you to read data without distortion during movement, providing stable and accurate scanning, which is especially important for recognizing poorly printed or non-standard labels. Global Shutter captures the entire image at one point in time, which avoids blurring when the scanner or object moves, unlike the Rolling Shutter, which captures the image line by line and can lead to distortion.

Advantages of the model

The MERTECH 1300 P2D SUPERLEAD scanner is equipped with a powerful 3500K LED backlight, which allows you to read barcodes even at low light levels. Antireflected ® glare suppression technology ensures reliable scanning of codes from various surfaces, including glass, film, and mobile device screens. The bright sight helps to accurately aim the device, which ensures stable operation at any angle of inclination and distance from the label.

Technical specifications

Scanning speed: up to 100 scans/sec.
Reading range: up to 350 mm.
Label contrast: from 20%.
Coverage angle: 40º(h) x 32º(v).
Permission Size : 640 x 480 Px.
Minimum resolution: 3,9 MIL.

The scanner body is made of durable plastic and polycarbonate, which protect the device from accidental falls from a height of up to 150 cm, which is confirmed by the IP54 standard. The ergonomic design and weight of 120 grams contribute to user-friendliness and reduce operator fatigue.

Equipment

The kit includes a 3-meter-long USB-HID cable, which provides additional convenience when connected to PCs, POS systems and online sales registers, increasing the radius of the operator's workspace.

13 MIL

40-200 mm

5 MIL

30-100 mm

Analogues of manufacturers

Proton, Cipherlab, Globalpos, Urovo, Idzor, Moyros, Poscenter, Cino

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Colour

Black

Connection type

Wired

Drop test

It can withstand 50 drops on a concrete surface from a height of 1.5 m.

Equipment

Scanner, USB type A cable (305 cm), Instructions, Warranty card, Packaging

Food

5V/300mA

Gross weight

0.267 kg

Interfaces

USB-HID; USB-COM emulation; RS-232 - optional

Masterbox sizes

52x41x38 cm

Masterbox weight, kg

14.373 kg

Minimum barcode contrast

20%

Minimum scan resolution

3,9 MIL

Number of trigger triggers without breakdowns

5 million

Operating temperature

-20°C ~ +50°C

Overall dimensions (WxDxH), mm

170mm*83mm*70mm

Package dimensions (1 pc.)

18x10x7.5 cm

Permissible humidity

0%- 95%

Quantity in the masterbox, pcs

50 pcs

Resistance to external influences

IP54

Scanner resolution

640(H)x480(V)Px

Scanner type

Manual

Scanning coverage angle

40º(h)x32º(v)

Scanning range

Up to 350 mm

Scanning speed

100 scans/sec

Storage temperature

-40°C ~ +70°C

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal

Supported 2D barcodes

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin

The backlight

Antireflected, 3500K LED

Type of scanning module

2D image Global Shutter

USAIS support

Yes

Weight

120 gr.
