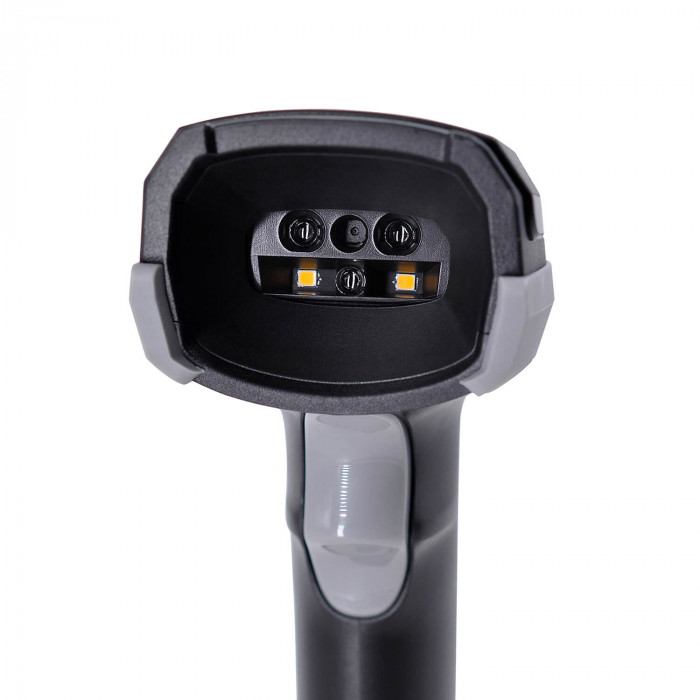

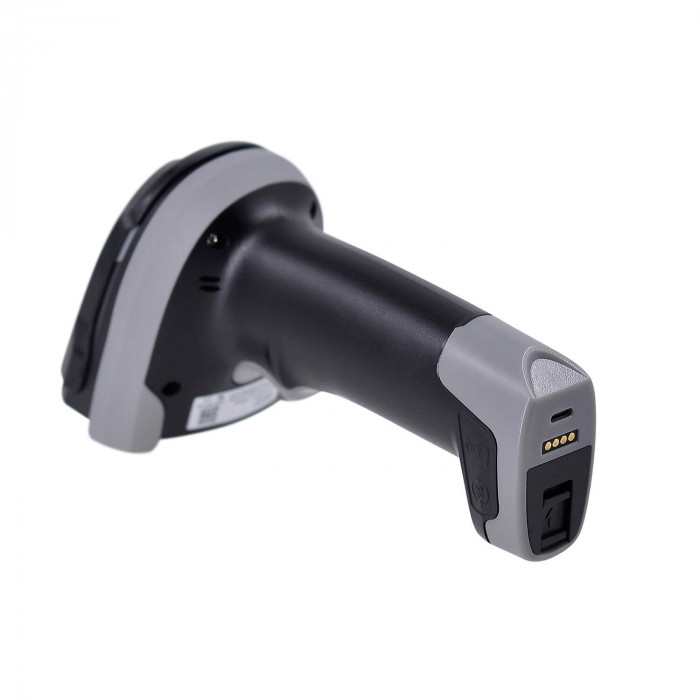

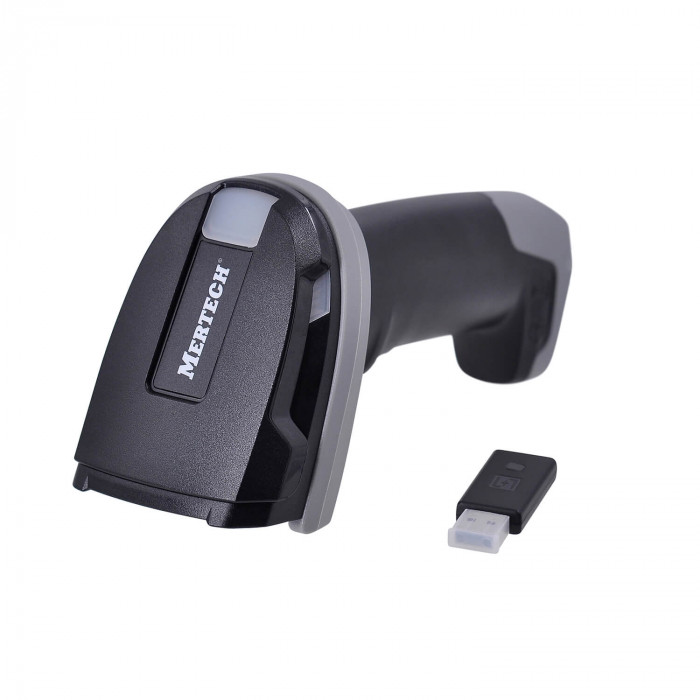

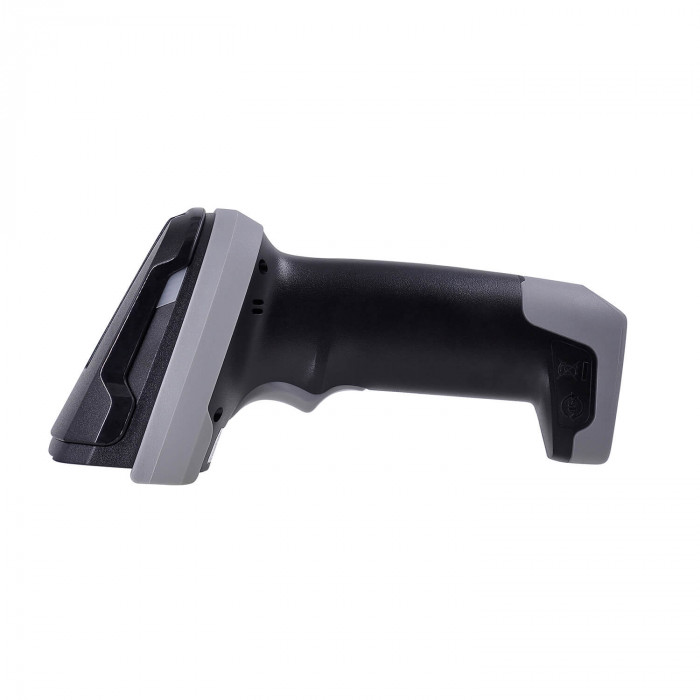

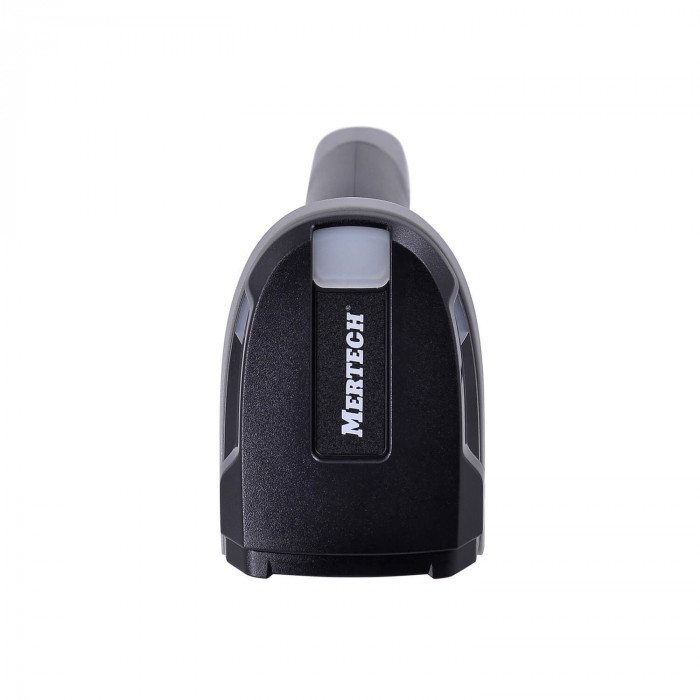

MERTECH CL-2410 BLE Dongle P2D USB Black Wireless Barcode Scanner

Name: MERTECH CL-2410 BLE Dongle P2D USB Black Wireless Barcode Scanner
SKU: 4878
Availability: InStock

Product Code: 4878

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

Aim

525 nM, Triangle

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

The MERTECH CL-2410 wireless scanner transmits data at a distance of up to 300 meters. Bluetooth and BLE 5 are used to connect to the computer.2. The model is designed to work in large warehouses, supermarkets and hypermarkets. The scanning device is suitable for any line of business.

Advantages of the model

A 2D Image scanning module is installed in the MERTECH CL-2410 model. The 525 nM high-contrast triangular sight helps to aim the wireless scanner. When the camera is activated, a bright backlight turns on. Successful recognition is accompanied by an audible signal.

The innovative Antireflected® technology provides glare suppression. As a result, the scanner recognizes barcodes from glare surfaces such as glass, metal, or a touchscreen. For successful scanning, the label contrast must be at least 20%.

The camera can be activated at the touch of a button or automatically when the label enters the coverage area. The photo scanner resource is designed for 5 million triggers without breakdowns.

The scanner supports the recognition of popular barcode formats. It quickly decodes even formats such as Data Matrix, QR and MicroQR. The device can work with excise stamps in the USAIS system. The equipment is suitable for the Honest MARK marking system.

Specifications

Main features of the model:

Scanning module operation speed: 100 scans/sec.
Trigger distance: up to 380 mm.
The resolution of the photo scanner is 640x480 Px.
Camera coverage range: 40° x 31 °.
Wireless connection: Bluetooth + BLE 5.2.
Distance for information transmission: up to 300 m.
512 KB memory (more than 4,000 USAIS codes).
The manufacturer's warranty is valid for 3 years.

The panels of the wireless scanner are made of plastic and polycarbonate. The robust housing protects the scanning module from impacts. The device can withstand 50 drops from 1.8 m onto a concrete surface.

You can use the photo scanner in heated rooms where the temperature is above zero. Outdoor work is allowed in warm weather. Enclosure stability class: IP65. The equipment weighs 260 grams. You can work a full shift with it and not feel tired in your wrist.

You can buy wireless scanners at a low price on the MERTECH website. Delivery is carried out all over Russia. Leave an online request or call us to discuss pre-order terms.

Aim

525 nM, Triangle

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Battery capacity

2600 mAh

Body material

ABC + PC (plastic + polycarbonate)

Colour

Black, Grey

Connection type

Wireless

Drop test

It can withstand 50 falls from a height of 1.8 m on a concrete surface or multiple falls from a height of 1.5 m.

Equipment

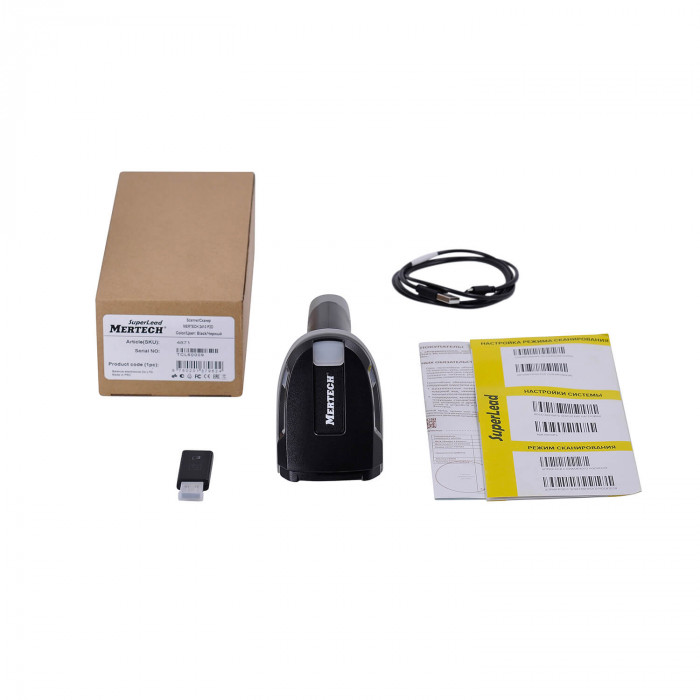

Scanner, USB Receiver, USB type C Cable, Instructions, Warranty Card, Packaging

Gross weight

0.356 kg

Interfaces

USB-HID, USB-COM emulation, Bluetooth, BLE 5.2

Masterbox sizes

52x43x45 cm

Masterbox weight, kg

19.046 kg

Minimum barcode contrast

20%

Minimum scan resolution

3 MIL

Number of trigger triggers without breakdowns

5 million

Operating temperature

0 ° C - 40 °C

Overall dimensions (WxDxH), mm

188mm*90mm*70

Package dimensions (1 pc.)

21x7.5x10 cm

Permissible humidity

5%- 95%

Quantity in the masterbox, pcs

50 pcs

Receiver power supply

5V/100mA

Resistance to external influences

IP65

Scanner power supply

5V/1000mA

Scanner resolution

640(H)x480(V)Px

Scanner type

Manual

Scanning coverage angle

40º(h)x31º(v)

Scanning range

Up to 380 mm

Scanning speed

100 scans/sec

Storage temperature

-40 °C - 70 °C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal

Supported 2D barcodes

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin

The backlight

Antireflected, 3500K LED

Transmission range

Up to 300 m

Type of scanning module

2D image

USAIS support

Yes

Weight

260 g
