MERTECH X21 BLE Dongle P2D SR USB Ring Scanner (Kit)

Name: MERTECH X21 BLE Dongle P2D SR USB Ring Scanner (Kit)
SKU: 4879
Availability: InStock

Product Code: 4879

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

Areas of application

For 1C, For VLSI, For a store, For marking shoes, For a warehouse, For an Honest sign

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

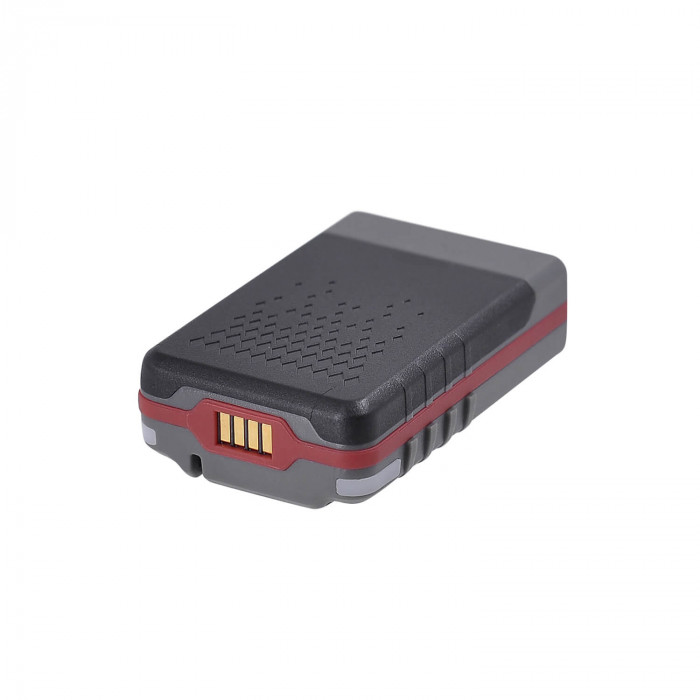

Optionally, it can be equipped with an additional removable battery for the X21 scanner ring.

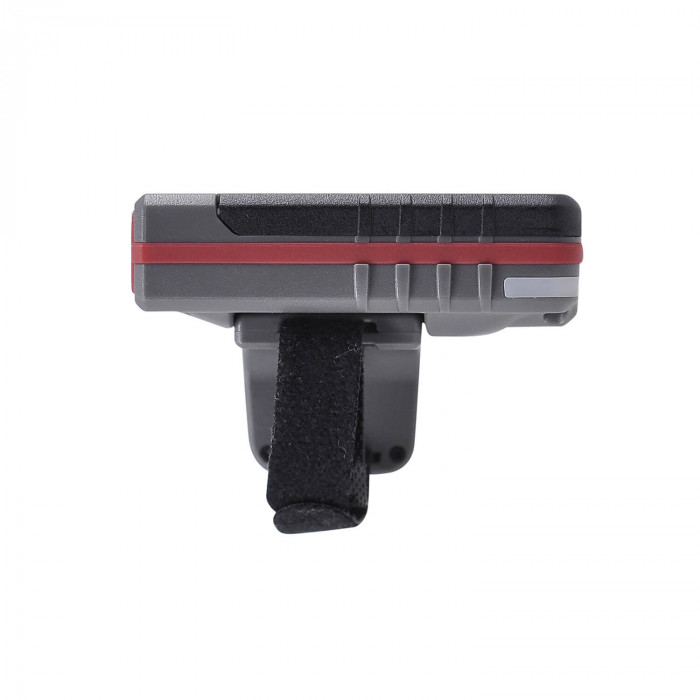

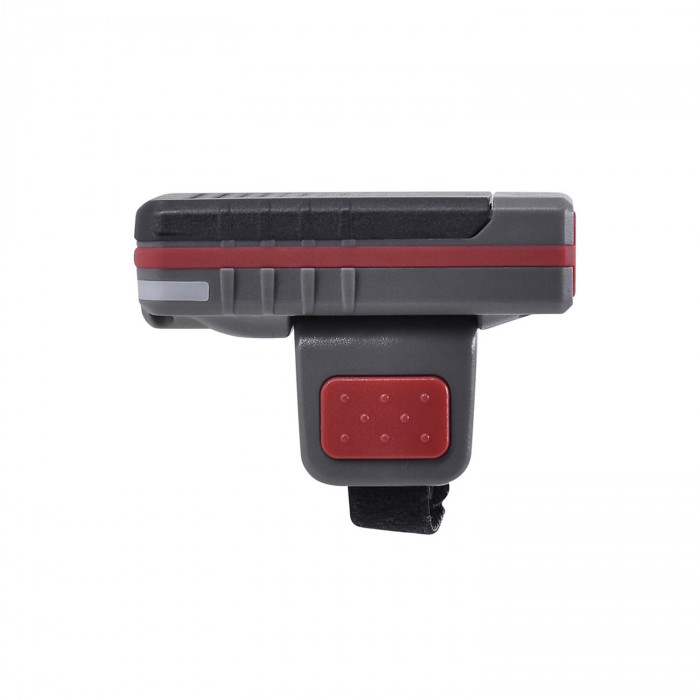

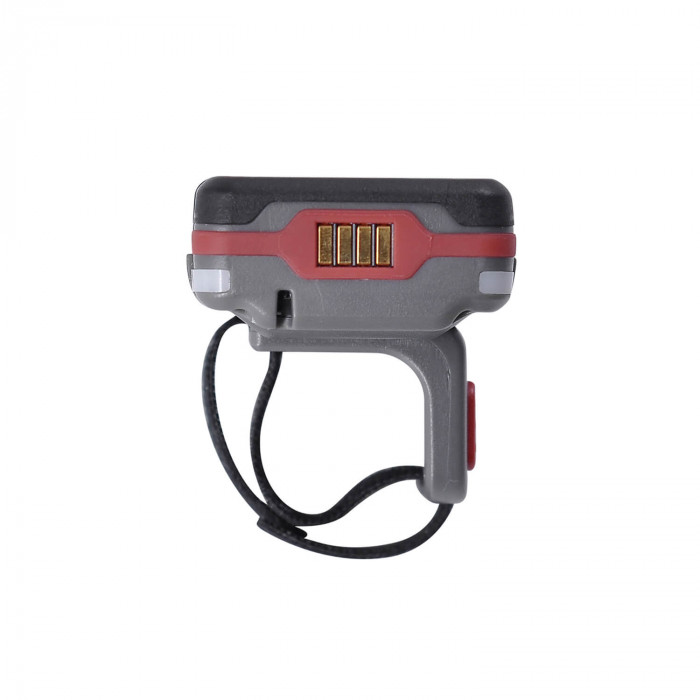

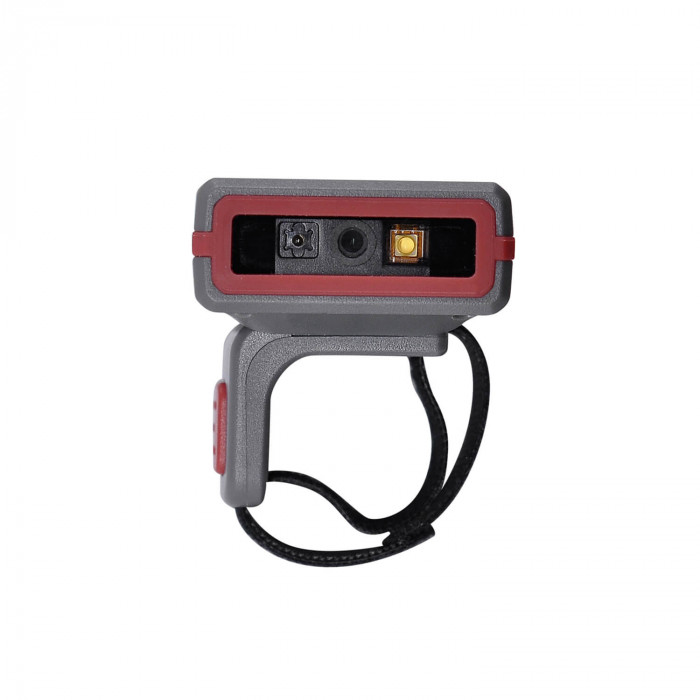

The MERTECH X21 ring scanner is designed to automate warehouse accounting. It is a functional and convenient device that simplifies the work of storekeepers. It quickly recognizes barcodes and transmits the data to the computer. The small scanner is convenient to carry on your finger and point it at labels. The package includes a receiver and a USB cable for charging the battery.

Advantages of the model

The 2D image scanning module recognizes all popular barcodes that are used in Russia. The scanner can recognize DataMatrix, QR Code and PDF417. It is suitable for marking an "Honest MARK" and for working with the Unified State Register of Legal Entities.

The scanning element reacts to barcodes with a contrast of at least 25%. It can scan codes from complex surfaces. The trigger is designed for 3 million triggers. An LED sight in the shape of a red square helps to point it at the labels. When the code is scanned successfully, a visual and audible alarm is triggered, as well as a vibration response.

The wireless scanner supports a connection to a computer at a distance of 100 m. It has built-in memory. If the signal is temporarily lost, the data will not be lost. Bluetooth and BLE 5.0 are used for wireless connection.

The scanner is powered by a 1050 mAh battery. After a full charge, you can make up to 10,000 scans. A USB cable is used to recharge the battery.

Technical specifications

Characteristics of the MERTECH X21 ring scanner:

Scanning speed: 100 scans/sec.
The angle of coverage of the built-in camera: 40°(H)x32 °(V).
Response distance: from 370 mm.
Bright 4000K LED backlight.
Warranty period: 3 years.

The ring scanner has a high level of enclosure protection: IP 54. It can be used at temperatures from -20 °C to +50 °C. The device weighs only 60 grams.

You can order a scanner ring at the lowest price only on the MERTECH website. Discounts are available for wholesale buyers. Leave a request to place an order.

Areas of application

For 1C, For VLSI, For a store, For marking shoes, For a warehouse, For an Honest sign

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Battery capacity

1050 mAh (up to 10 thousand scans)

Battery charge time

from 2 hours

Body material

ABC + PC (plastic + polycarbonate)

Built-in memory

Yes

Code39 100MIL

1,3

Colour

Black, Red, Grey

Connection type

Wireless

Consumption during scanning

265mA

Drop test

It can withstand 30 falls from a height of 1.5 m on a concrete surface or multiple falls from a height of 1.2 m.

Equipment

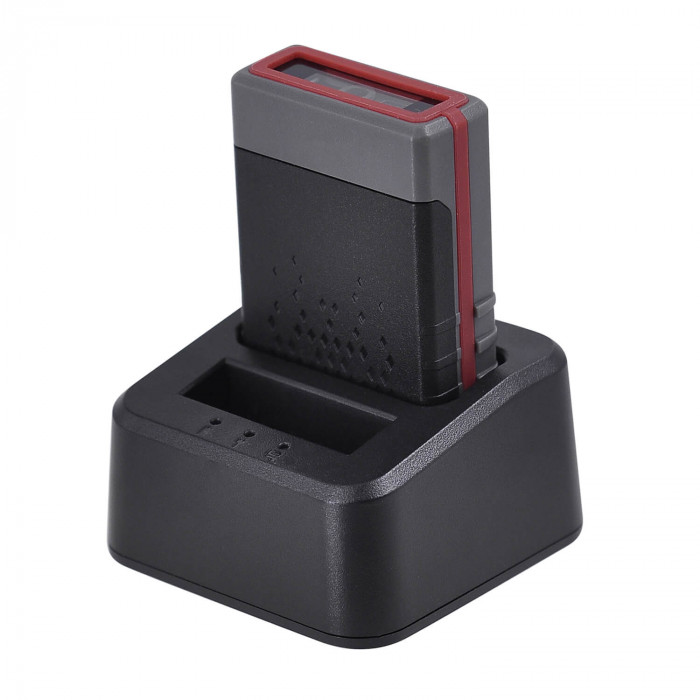

Scanner, USB Receiver, USB Cable, Instruction, Warranty Card, Packaging, Charging Station, Ring Button

Gross weight

0.222 kg

Guarantee

3 years old

Interfaces

USB-HID, USB-COM Emulation, Bluetooth, BLE 5.0

Masterbox sizes

52x40x27 cm

Masterbox weight, kg

12 kg

Minimum barcode contrast

25%

Minimum scan resolution

Code39 3,13 MIL

Number of trigger triggers without breakdowns

3 million

Operating temperature

-20°C ~ +50°C

Overall dimensions (WxDxH), mm

65mm*40mm*20.2mm

Package dimensions (1 pc.)

12.5x7.5x10 cm

Permissible humidity

0% ~ 95%

Protection class

IP54

QR 250 MIL

2,5 m

Quantity in the masterbox, pcs

50 pcs

Scanner resolution

640(H)x480(V)Px

Scanner type

Ring Scanner

Scanning coverage angle

40º(h)x32º(v)

Scanning range

Up to 370 mm

Scanning speed

100 scans/sec

Standby consumption

32mA

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal

Supported 2D barcodes

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin

The backlight

4000K LED

Transmission range

Up to 100 m

Type of scanning module

2D image

Type of scope

LED, red square

USAIS support

Yes

Vibration response

Yes

Weight

60 g
