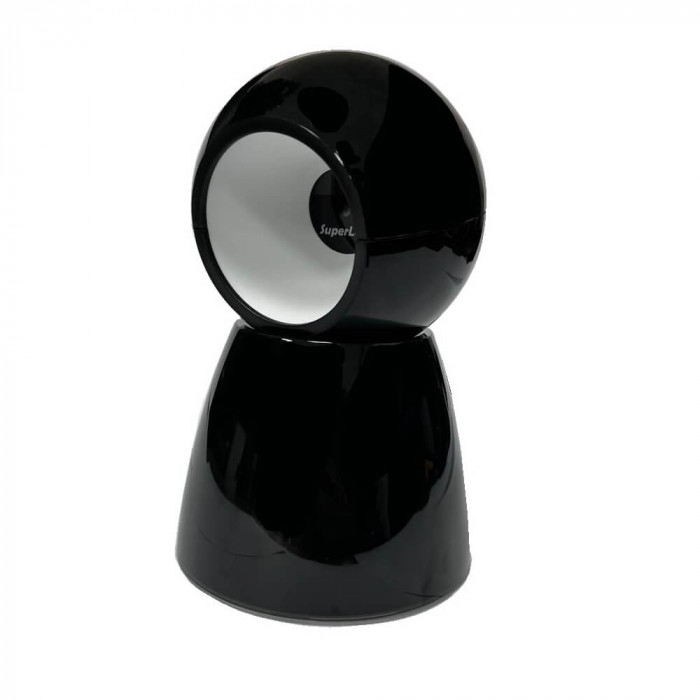

MERTECH 9010 P2D Stationary Barcode Scanner

Name: MERTECH 9010 P2D Stationary Barcode Scanner
SKU: 4892
Availability: InStock

Product Code: 4892

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

13 MIL

0-120 mm

5 MIL

0-30 mm

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical

Audio and visual indication

Yes

Automatic scanning

Yes

The MERTECH 9010 P2D is a stationary 2D scanner with a modern body design. It is suitable for working with a wide range of products. The model is designed for shops, supermarkets and hypermarkets with a large flow of visitors. The warranty for the equipment is valid for 3 years.

Advantages

The MERTECH 9010 P2D stationary scanner quickly recognizes all common barcode formats, including EAN, DataMatrix, PDF417 and QR. The device is suitable for scanning Honest MARK product labeling codes and EGAIS excise stamps.

The patented Superlead technology ensures high recognition speed. The device reads barcodes of non-standard size and poorly printed labels. The photo scanner has a wide angle of coverage, it recognizes labels the first time.

The model has a bright red LED backlight of 617 nm. High-quality illumination ensures that codes are read from complex surfaces. The recognition is accompanied by a light and sound signal, and a clear indication speeds up the work of the checkout operator.

Technical specifications

Characteristics of the stationary scanner:

Reading speed: 100 scans/sec.
Camera angle: 53 ° x 41 °.
Scanning distance: up to 150 mm.
The minimum barcode contrast is 20%, with a resolution of 4 MIL.
Interfaces: USB-HID, USB-COM emulation.

The device with a case size of 150x102x102 mm does not take up much space on the desktop. The body panels are made of sturdy materials: plastic and polycarbonate. Commercial equipment is characterized by high-quality assembly. The device works stably at room temperature and humidity.

You can buy MERTECH 9010 P2D stationary barcode scanners on the official MERTECH website at the lowest prices. We provide fast delivery of equipment across Russia and help with the connection of equipment. To place an order, leave a request on the website.

13 MIL

0-120 mm

5 MIL

0-30 mm

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Box dimensions, mm

195*120*140

Colour

Black

Connection type

Wired

Drop test

It can withstand 3 falls from a height of 0.5 m.

Equipment

Scanner, USB type A cable (140 cm), Instructions, Warranty card, Packaging

Food

5V/400mA

Gross weight

0.423 kg

Guarantee

3 years old

Interface

USB-HID, USB-COM emulation

Masterbox sizes

61.5x43x30.5 cm

Masterbox weight, kg

9.519 kg

Minimum barcode contrast

20%

Minimum scan resolution

4 MIL

Operating temperature

0°C ~ +50°C

Overall dimensions (WxDxH), mm

150mm*102mm*102

Package dimensions (1 pc.)

20x14x12 cm

Permissible humidity

0% ~ 95%

Quantity in the masterbox, pcs

20 pcs

Resistance to external influences

IP54

Scanner resolution

640(H)x480(V)Px

Scanner type

Stationary

Scanning coverage angle

53º(h)x41º(v)

Scanning range

150 mm

Scanning speed

100 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal

Supported 2D barcodes

PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin

The backlight

red, 617nm LED

Type of scanning module

2D image

USAIS support

Yes

Weight

272 grams
