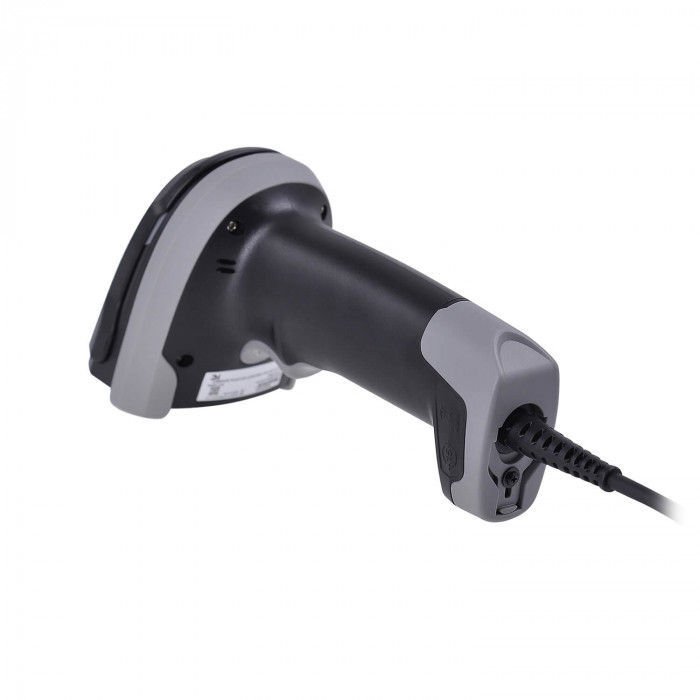

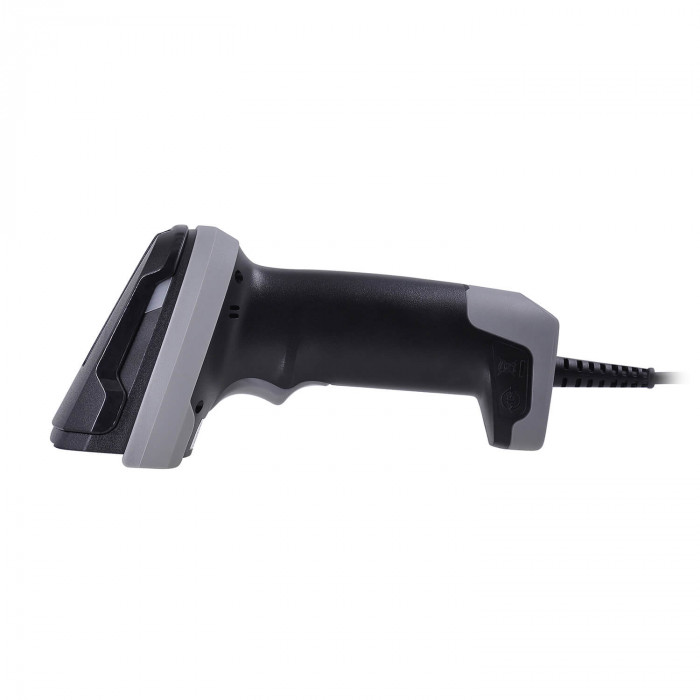

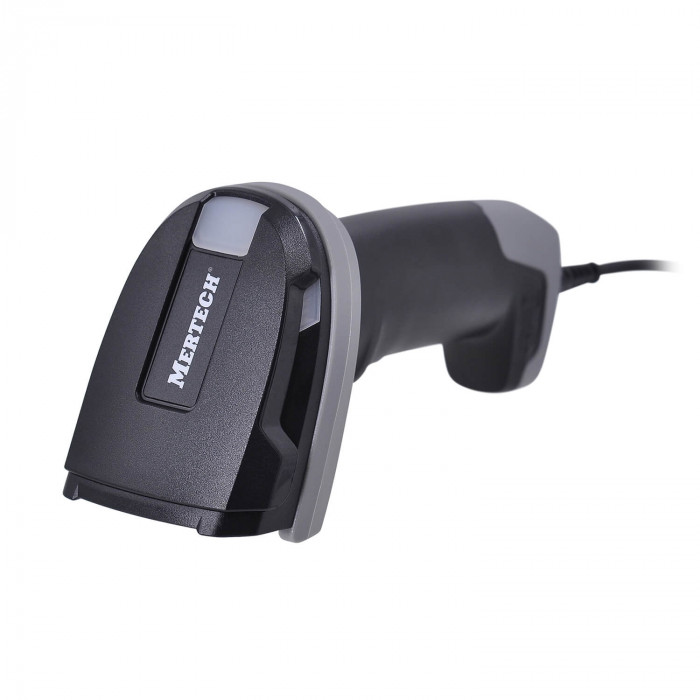

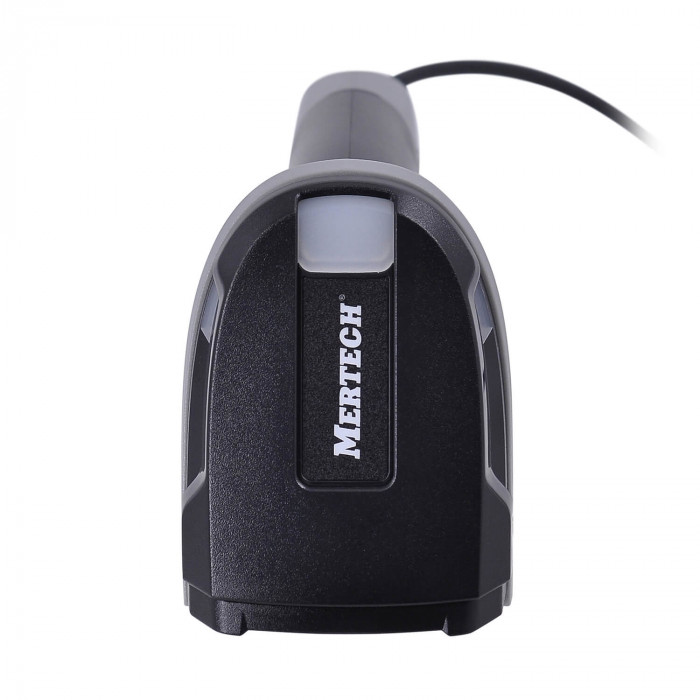

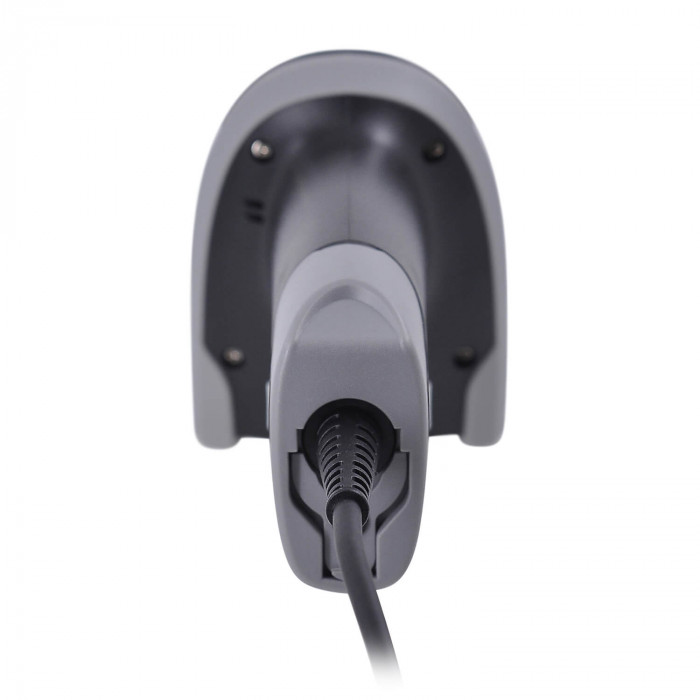

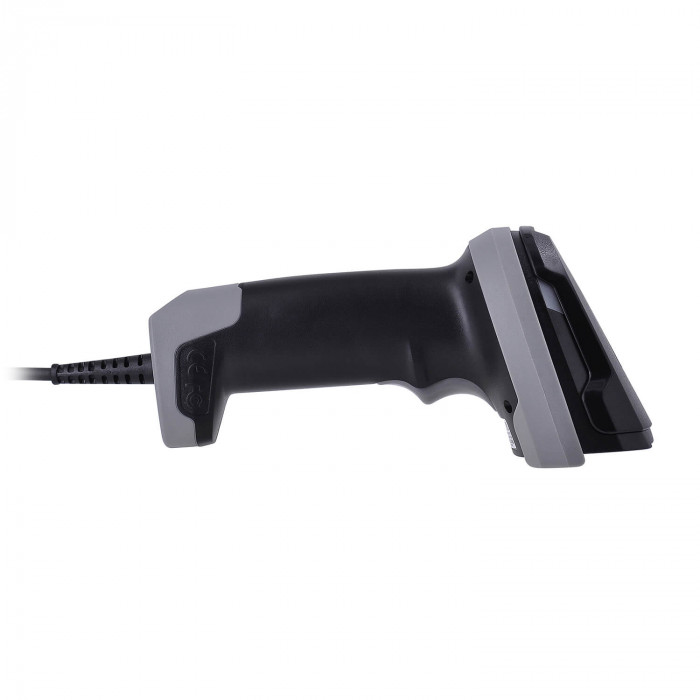

Wired Barcode Scanner MERTECH 2425 HR Ai 2Core XLaser USB, RS232 Emulation Black

Product Code: 4894

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

Aim

525 nM, Red Laser with red cross

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

The MERTECH 2425 HR Ai 2Core XLaser USB wired Barcode Scanner performs fast and accurate reading of popular barcodes. It is suitable for working in the cash register area, for checking goods in a warehouse, for serving guests in cafes and restaurants, and for other professional industries.

Advantages of the model

The scanner is equipped with a high-tech 2Core Xlaser scanning module. The module's design uses a combination of a laser sight and a dual-core processor. This solution ensures high scanning speed, accuracy and reliability.

The 2Core Xlaser scanning module provides the following advantages::

High performance. The dual-core processor processes data quickly, which increases the scanning speed. This is especially important when working with a large amount of information.

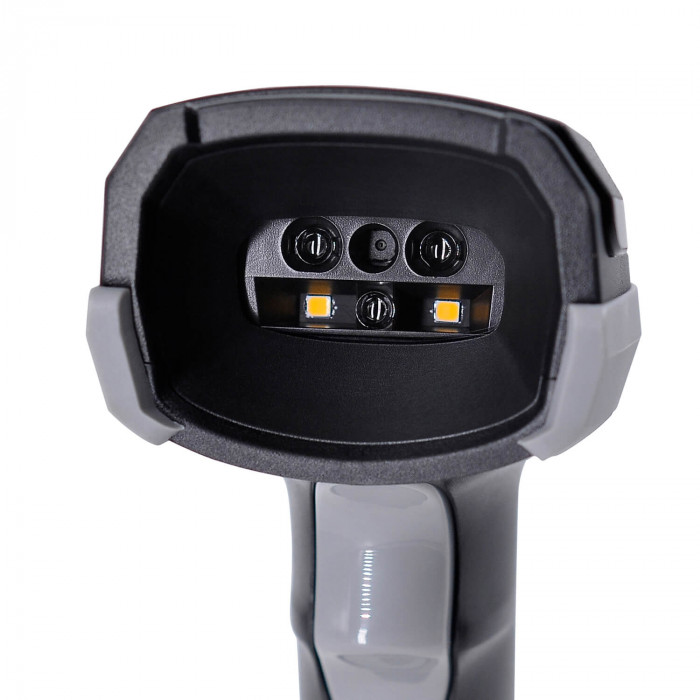

The accuracy of the scan. The wireless scanner has a bright white LED backlight and an Xlaser laser sight in the shape of a red cross. It is convenient to aim the sight at barcodes even in low light conditions.
Energy efficiency. The 2Core dual-core processor consumes little power due to optimized data processing.

The model implements the vibration response technology Vibrocheck©. After each successful reading, the handle emits a vibration signal that cannot be ignored. The vibration duplicates the light and sound alerts about the scan. This technology makes it easier to work in well-lit and noisy areas, such as warehouses or supermarket salesrooms.

Specifications

The MERTECH 2425 HR Ai 2Core XLaser USB Handheld Scanner, USB emulation RS232 black has the following characteristics:

Reading speed: 100 scans/sec.
Recognition range: up to 380 mm.
Image recognition with up to 20% contrast.
The backlight is 4000K white LED.
Enclosure protection level: IP54.

The scanning module recognizes linear or two-dimensional encodings. The equipment is suitable for working with USAIS excise stamps and marking codes for the "Honest Mark". The device has a reliable design. The trigger of the scanner is designed for 5,000,000 triggers. MERTECH's warranty is valid for 3 years.

To buy a MERTECH 2425 HR Ai 2Core XLaser USB scanner, leave a request on the website. When making a purchase through the manufacturer's website, the lowest prices apply. The equipment is delivered to all regions of Russia through a dealer network.

Aim

525 nM, Red Laser with red cross

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Code 39 5 MIL

40-170 mm

Colour

Black, Grey

Connection type

Wired

Drop test

It can withstand 50 falls from a height of 1.8 m on a concrete surface or multiple falls from a height of 1.5 m.

Equipment

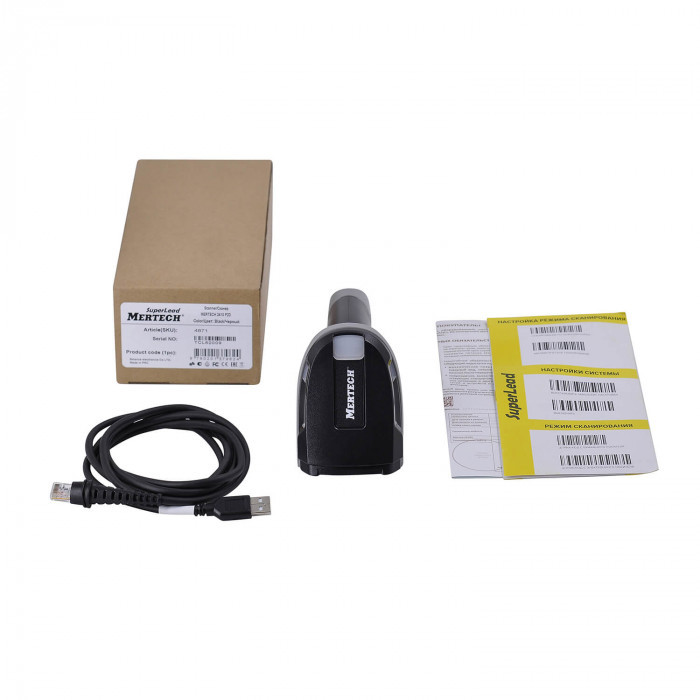

Scanner, USB type A cable , Instructions, Warranty card, Packaging

Food

5V/300mA

Gross weight

0.369 kg

Interfaces

USB-HID, USB-COM emulation, RS-232 — optional

Masterbox sizes

52.5 x 42.5 x 45 cm

Masterbox weight, kg

19.564 kg

Minimum barcode contrast

20%

Minimum scan resolution

3 MIL

Number of trigger triggers without breakdowns

5 million

Operating temperature

0 ° C - 40 °C

Overall dimensions (WxDxH), mm

188mm*90mm*70

Package dimensions (1 pc.)

21x10x7.5 cm

Permissible humidity

5%- 95%

QR 20 MIL

20-320 mm

Quantity in the masterbox, pcs

50 pcs

Resistance to external influences

IP54

Scanner resolution

1280(H)x1080(V)px

Scanner type

Manual

Scanning coverage angle

38°(H) x 32°(V)

Scanning range

Up to 380 mm

Scanning speed

100 scans/sec

Storage temperature

-20 °C - 70 °C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal

Supported 2D barcodes

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin

The backlight

White, 4000K LED

Type of scanning module

2D image

UPC-A 13 MIL

40-370 mm

USAIS support

Yes

Vibration response

Yes

Weight

165 g
