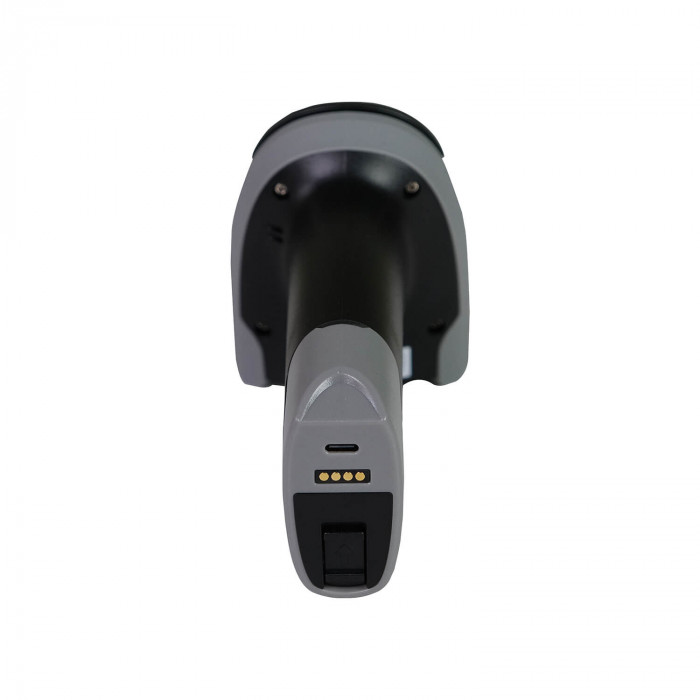

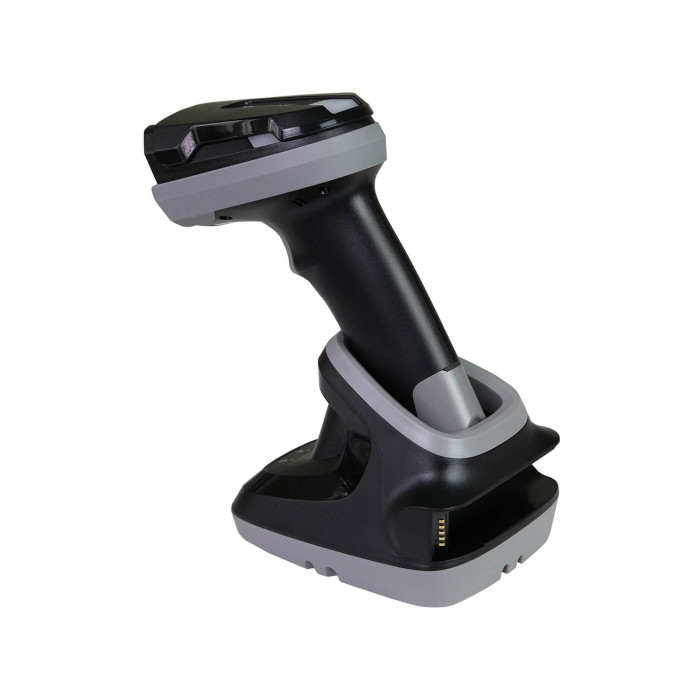

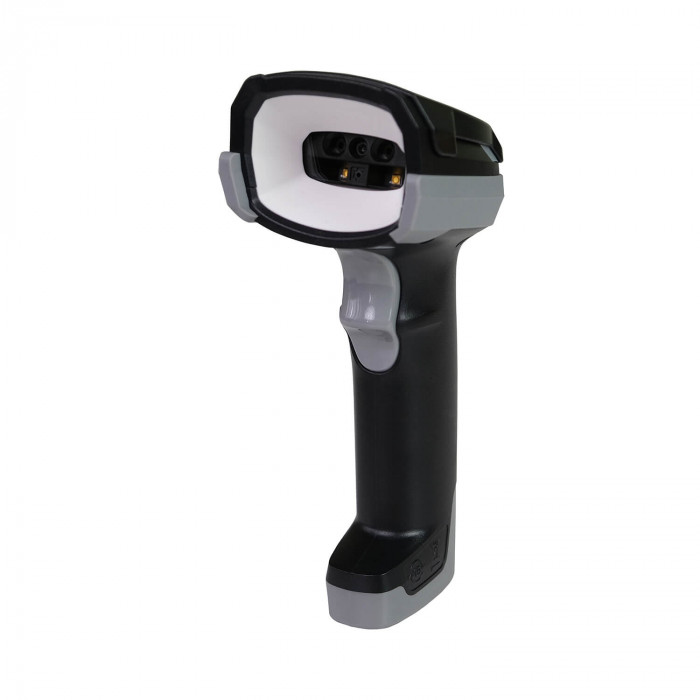

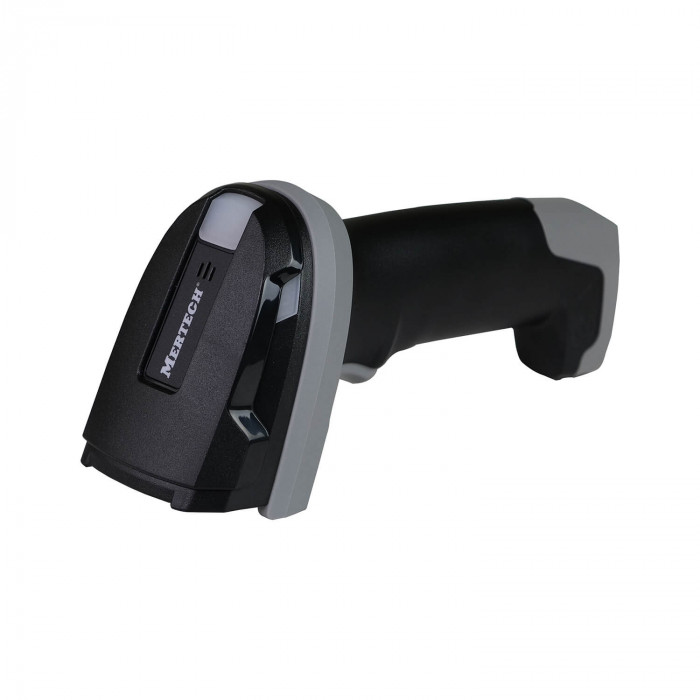

MERTECH CL-2425 Ai HR 2Core XLaser BLE SPP Dongle P2D USB Black Wireless Barcode Scanner

Name: MERTECH CL-2425 Ai HR 2Core XLaser BLE SPP Dongle P2D USB Black Wireless Barcode Scanner
SKU: 4903
Availability: InStock

Product Code: 4903

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

Aim

525 nM, Red Laser Cross

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

The MERTECH CL-2425 Ai HR universal wireless scanner is a powerful solution for businesses where speed, accuracy and reliability are important. The scanner reads all popular 1D and 2D codes, supports USAIS and Fair SIGN, works at a distance of up to 100 meters and can withstand falls on concrete. An excellent choice for labeling, retail, pharmacies and warehouses.

Main advantages

Reads codes from damaged, glare, and curved surfaces.
Support for all 1D/2D standards, including USAIS and Fair SIGN
Offline operation with Bluetooth transmission up to 100 m
Built-in memory: up to 4,000 codes
IP65 enclosure protection and resistance to drops up to 1.6 m
Convenient laser reticle and LED backlight
Compatible with 1C, Evotor, VLSI and other systems

Detailed description

The MERTECH CL-2425 Ai HR is a new generation professional handheld 2D scanner with intelligent image processing, high speeds of up to 100 scans/sec and a reading range of up to 380 mm. It instantly recognizes complex barcodes: damaged, low-contrast, flashing, on curved surfaces. Thanks to the high resolution of 1280×1080 pixels and laser guidance with a coverage angle of 34°×40°, it is easy for the operator to accurately position the scanner even under heavy load.

The scanner supports labeling shoes, alcohol, perfumes, cigarettes, pharmacy products, and any Fair Sign codes. It works via Bluetooth 5.0 (SPP), and can also be connected via USB in HID and COM modes.

The 2600 mAh battery provides long-term offline operation, and the built-in memory allows you to scan offline and transfer data later. The IP65 degree of protection and resistance to 30 drops make the model suitable for intensive use in trade, logistics and manufacturing.

Specifications

Characteristic	Meaning
Scanner type	Manual, 2D Image
Scanning speed	100 scans/sec
Scanner resolution	1280×1080 px
Reading distance	Up to 380 mm / up to 100 m via Bluetooth
Code support	1D and 2D, including QR, DataMatrix, USAIS, Fair SIGN
Interfaces	USB-HID, USB-COM (emulation), Bluetooth 5.0 SPP
Aim	Laser cross, 525 nm
The backlight	LED white, 4000K
Memory	512 KB (more than 4000 codes)
Stability	IP65, drops from 1.6 m
Battery	2600 mAh, 5V/1000mA
Weight	262 g
Body color	Black / Grey
Auto-scan support	Yes
Compatibility	1C, Evotor, VLSI, etc.

Aim

525 nM, Red Laser Cross

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Battery capacity

2600 mAh

Body material

ABC + PC (plastic + polycarbonate)

Built-in memory

Yes

Code 39 20 MIL

25-350 mm

Code 39 3,13 MIL

45-120 mm

Code 39 3.9 MIL

35-150 mm

Code 39 5 MIL

35-240 mm

Colour

Black, Grey

Connection type

Wireless

DM10 MIL

10- 260 mm

Drop test

It can withstand 30 falls from a height of 1.6 m on a concrete surface or multiple falls from a height of 1.2 m.

Equipment

Scanner, USB type C Cable, Receiver, USB, Instruction, Warranty Card, Packaging

Gross weight

0.348 kg

Interfaces

USB-HID, USB-COM Emulation, Bluetooth 5.0 SPP

Light scattering resistance

100,000 Lux

Masterbox sizes

53x42.5x45.5 cm

Masterbox weight, kg

18.56 kg

Minimum barcode contrast

20%

Minimum scan resolution

3 MIL

Number of trigger triggers without breakdowns

5 million

Operating temperature

0 ° C - 40 °C

Overall dimensions (WxDxH), mm

188mm*90mm*70

Package dimensions (1 pc.)

21x7.5x10 cm

PDF417 6.88 MIL

10-260 mm

Permissible humidity

5%- 95%

QR 20 MIL

10-370 mm

Quantity in the masterbox, pcs

50 pcs

Receiver power supply

5V/100mA

Resistance to external influences

IP65

Scanner power supply

5V/1000mA

Scanner resolution

1280(H)x1080(V)px

Scanner type

Manual

Scanning coverage angle

34°(H) x 40°(V)

Scanning range

Up to 380 mm

Scanning speed

100 scans/sec

Storage temperature

-40 °C - 70 °C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

Supported 2D barcodes

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.

The amount of internal memory

512 KB (more than 4,000 USAIS codes)

The backlight

White, 4000K LED

Transmission range

Up to 100 m

Type of scanning module

2D image

UPC-A 13 MIL

30-350 mm

USAIS support

Yes

Vibration response

Yes

Weight

262 grams
