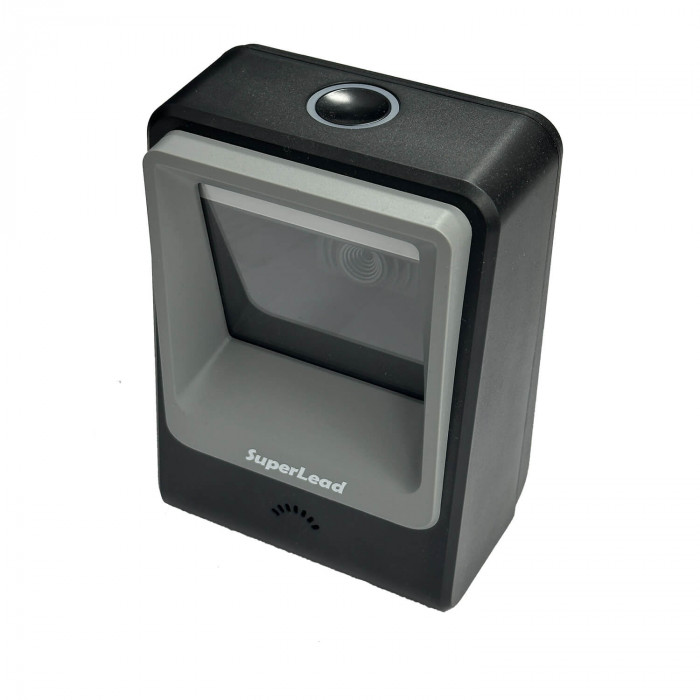

MERTECH CL-8400 P2D Superlead USB Barcode Scanner, USB RS232 Emulation
Product Code:4922
Reviews:(0)
In Stock
$0.00
Specifications:(see all)
13 MIL
0-120 mm
5 MIL
0-30 mm
Areas of application
For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical
The MERTECH CL-8400 P2D Superlead USB combines the form factor of a stationary scanner with the convenience of a wireless connection. It quickly recognizes all popular barcodes, including PDF417 stamps for the Unified State Register of Legal Entities and Data Matrix marking codes for the "Honest Mark". The model is suitable for automation of work in the field of retail, medicine, warehousing and logistics.
Advantages and characteristics
The best technological solutions are implemented in the design of the MERTECH CL-8400 scanner. It has many advantages:
Wireless form factor. The external device is connected via Bluetooth 5.0, which allows you to free the cashier's workplace from wires.
High performance. SUPERLEAD technology provides high recognition speed (300 scans/seconds) and data processing.
Wide angle of coverage. The scanning angle of 53(h) x 41(v) simplifies the operator's work, he does not need to spend time turning the package to read the barcode.
Advanced functionality. The device recognizes barcodes with low contrast: up to 25%. The 4 MIL resolution allows you to work even with small labels. Barcode reading is carried out even from complex surfaces.
Convenient operation. The automatic mode speeds up scanning and reduces customer service time. After successful barcode reading, an audible and visual indication is triggered.
Long-term work. The 5,000 mAh battery capacity provides up to 14 hours of active operation or up to 17 hours of standby time.
The stationary scanner has a reliable housing made of ABS plastic and polycarbonate. The compact case size of 146x105x70 mm makes it easy to place the device in the cash register area. The scan is performed at temperatures from 0 °C to +50 °C. The IP54 protection class ensures resistance to dust and moisture when working indoors. MERTECH's warranty is valid for 3 years.
Place an order
You can buy a stationary MERTECH CL-8400 P2D Superlead USB scanner on the official MERTECH website. When making purchases on the manufacturer's website, the lowest prices for commercial equipment apply. Additional discounts are available for wholesale buyers. Delivery of orders in Russia is carried out through the dealer network in a short time. Leave a request to purchase stationary scanners for your business.
13 MIL
0-120 mm
5 MIL
0-30 mm
Areas of application
For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical
Audio and visual indication
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes
Barcode sensitivity
Tilt ± 65° / 360° Rotation / Deviation ± 60 °
Battery capacity
5000mAh
Body material
ABC + PC (plastic + polycarbonate)
Box dimensions, mm
195*120*140
Colour
Black, Grey
Connection type
Wireless
Drop test
It can withstand 3 falls from a height of 0.5 m.
Equipment
Scanner, USB type C cable, Instructions, Warranty card, Packaging
Food
5V/500mA
Guarantee
3 years old
Interface
USB-HID, USB-COM Emulation, Bluetooth 5.0
Minimum barcode contrast
25%
Minimum scan resolution
4 MIL
Operating temperature
0°C ~ +50°C
Overall dimensions (WxDxH), mm
146mm*105mm*70mm
Permissible humidity
0% ~ 95%
Resistance to external influences
IP54
Scanner resolution
640(H)x480(V)Px
Scanner type
Stationary
Scanning coverage angle
53º(h)x41º(v)
Scanning range
Up to 200 mm
Scanning speed
300 scans/sec
Storage temperature
-40°C ~ +70°C
Support is an honest SIGN
Yes
Supported 1D barcodes
UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal
Supported 2D barcodes
PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin
The backlight
Red, 5000K LED
Type of scanning module
2D image
USAIS support
Yes
Weight
420 g
Working hours
17 hours standby time, 13-14 hours uninterrupted scanning
