MERTECH X21 SPP MR BLE Dongle P2D USB Ring Scanner (Kit)

Name: MERTECH X21 SPP MR BLE Dongle P2D USB Ring Scanner (Kit)
SKU: 4951
Availability: InStock

Product Code: 4951

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

Areas of application

For 1C, For VLSI, For a store, For marking shoes, For a warehouse, For an Honest sign

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

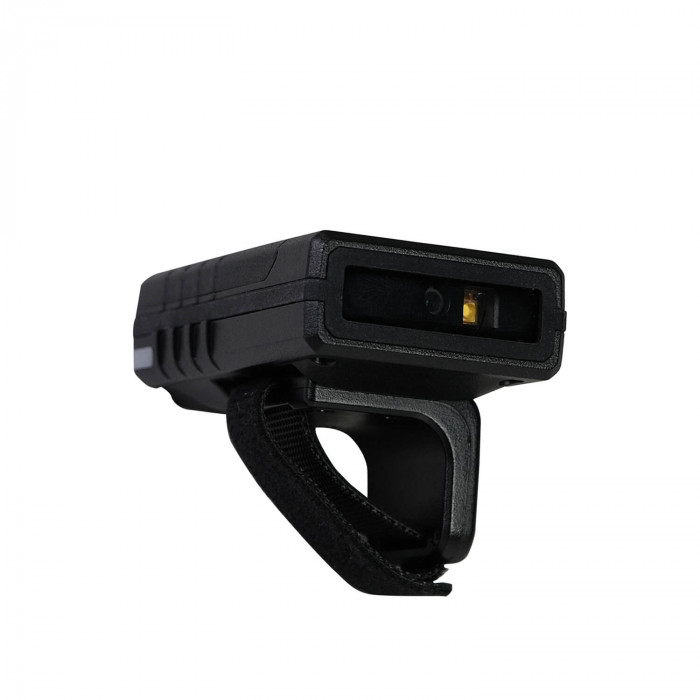

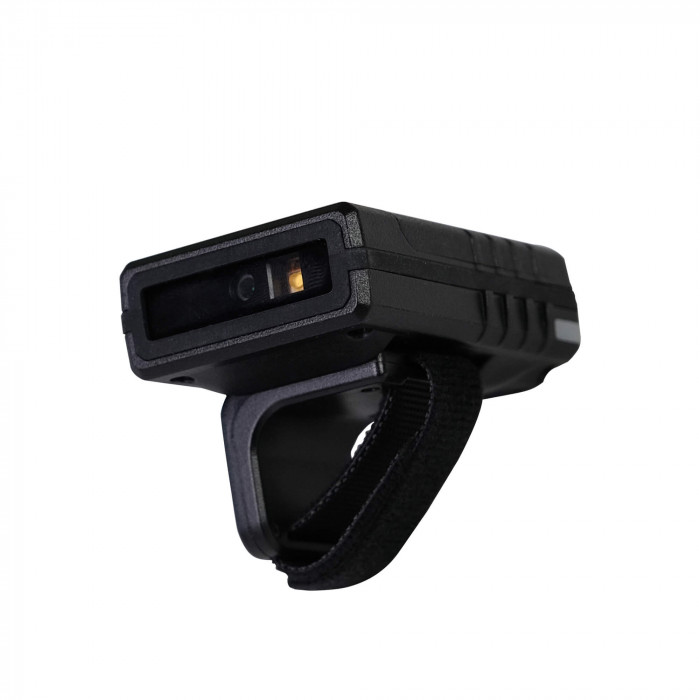

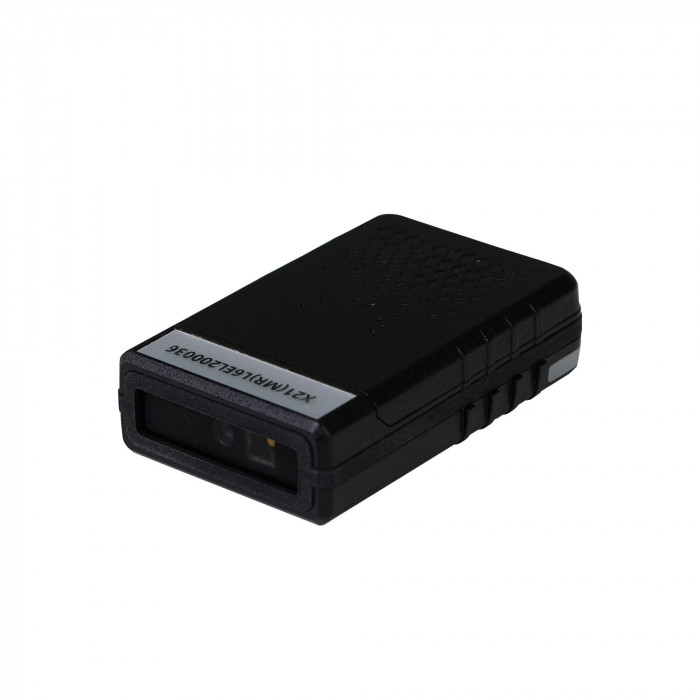

The MERTECH X21 SPP MR is a new—generation high-precision ring scanner with a laser sight, extended scanning range, and a powerful 1280×800 px optical module. The device is designed for intensive use in warehouse, industrial and retail environments, providing free hands and high-speed operation.

Scanner-ring design

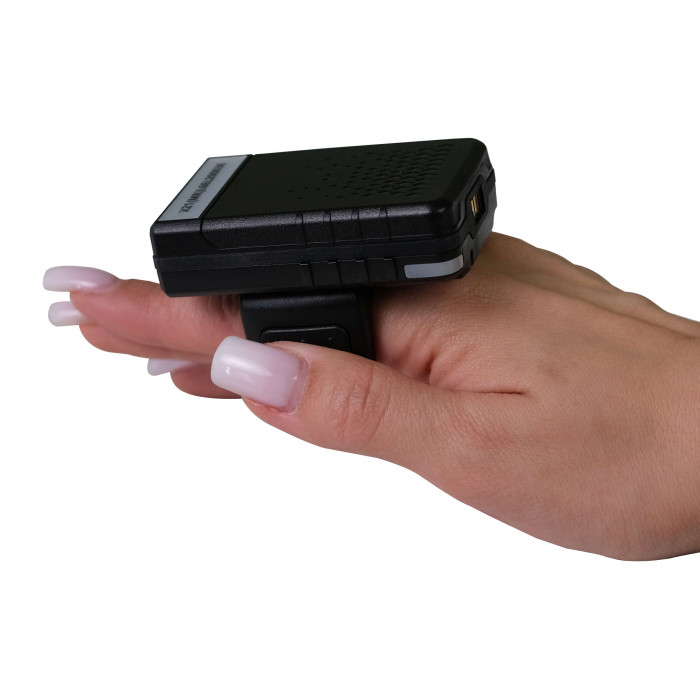

The device is made in the form of a ring, worn on a finger, with a remote control button. This design increases employee mobility and optimizes work processes, especially when assembling orders, taking inventory, and accepting labeled goods. The durable plastic and polycarbonate (ABC + PC) housing can withstand multiple falls from a height of up to 1.5 m, meeting the IP54 protection class.

Advantages of the scanner

Increased scanning range: up to 805 mm (Code 39 20MIL), up to 5.5 m (QR 250MIL).
High-resolution optical module: 1280×800 px with laser sight (red dot).
Wireless connectivity: Bluetooth 5.0, BLE, SPP, USB-HID and USB-COM (emulation).
Wide format support: all popular 1D and 2D codes, including QR, Data Matrix, Aztec, PDF417, etc.
Intelligent functions: vibration response, light and sound indication, built-in memory, Fair Sign and USAIS support.
Reliable in all conditions: operating temperature range from -20 °C to +50 °C, humidity up to 95%, resistant to vibrations and drops.
Capacious battery: 1050 mAh with a fast charge of 2 hours.
A 3-year warranty and a complete set of supplies for immediate operation.

Briefly about the technical characteristics

Scanner Type: Ring
Scanning element: 2D image, 1280×800 px
Grip angle: 40°(H) × 30°(V)
Sight type: Laser, red dot
Scanning speed: 100 scans/sec
Sensitivity: tilt ±65°, 360° rotation, deviation ±60°
Support codes: 1D, 2D, Honest SIGN, USAIS
Interfaces: USB HID, USB-COM, Bluetooth, BLE 5.0, SPP
Battery: 1050 mAh
Case: 65×40×20.2 mm, 60 g, material — plastic + polycarbonate
Protection class: IP54
Operating conditions: -20°C ~ +50°C, humidity up to 95%

Offer

The MERTECH X21 SPP MR is a reliable solution for scanning labeled products, quick assembly and industrial accounting. Due to its high precision, durability and versatility, it is ideal for shops, warehouses and automated workplaces.

Place an order on the official Mertech website with delivery throughout Russia and a 3-year warranty!

Areas of application

For 1C, For VLSI, For a store, For marking shoes, For a warehouse, For an Honest sign

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Battery capacity

1050 mAh

Battery charge time

from 2 hours

Body material

ABC + PC (plastic + polycarbonate)

Built-in memory

Yes

Code 39 20 MIL

50mm- 805mm

Code 39 5.13 MIL

125mm- 290mm

Colour

Black

Connection type

Wireless

Consumption during scanning

265mA

Data Matrix 10MIL

130mm- 310mm

Drop test

It can withstand 30 falls from a height of 1.5 m on a concrete surface or multiple falls from a height of 1.2 m.

Equipment

Scanner, USB Receiver, USB Cable, Instruction, Warranty Card, Packaging, Charging Station, Ring Button

Guarantee

3 years old

Interfaces

USB-HID, USB-COM emulation, Bluetooth, BLE 5.0, SPP

Minimum barcode contrast

25%

Minimum scan resolution

Code39 5.13 mil

Number of trigger triggers without breakdowns

3 million

Operating temperature

-20°C ~ +50°C

Overall dimensions (WxDxH), mm

65mm*40mm*20.2mm

Permissible humidity

0% ~ 95%

QR 20 MIL

45mm- 450mm

Resistance to external influences

IP54

Scanner resolution

1280(H)x800(V)Px

Scanner type

Ring Scanner

Scanning coverage angle

40º(h)x30º(v)

Scanning range

Up to 370 mm

Scanning speed

100 scans/sec

Standby consumption

32mA

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal

Supported 2D barcodes

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin

The backlight

4000K LED

Transmission range

Up to 100 m

Type of scanning module

2D image

Type of scope

Laser, red dot

UPC-A 13 MIL

125mm- 320mm

USAIS support

Yes

Vibration response

Yes

Weight

60 g
