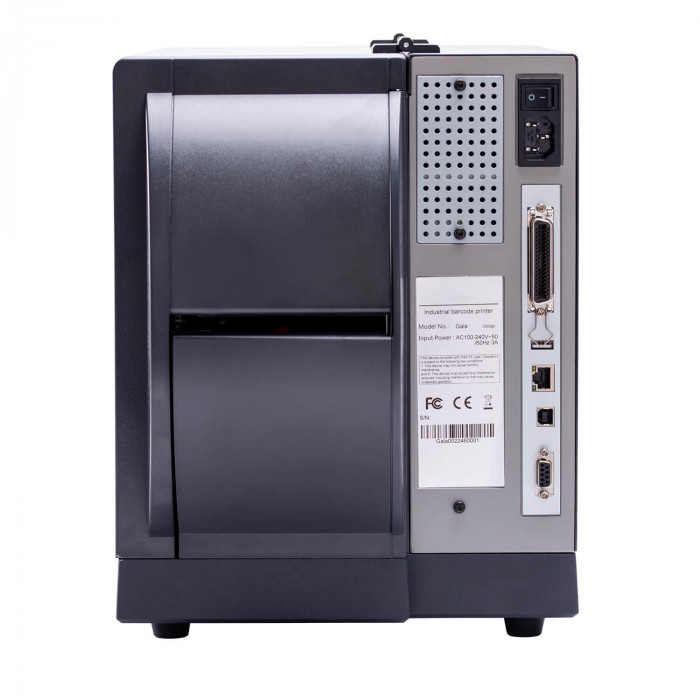

MERTECH G700 Thermal Transfer Label Printer (300 DPI) Ethernet, USB, RS-232

Name: MERTECH G700 Thermal Transfer Label Printer (300 DPI) Ethernet, USB, RS-232
SKU: 9190
Availability: InStock

Product Code: 9190

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

Audio and visual indication

Yes

Bartender Support

Yes

Body material

ABC + PC (plastic + polycarbonate)

Built-in sensors

Paper availability, Ribbon availability, Lid opening, Label Gap, Printhead Temperature, Black Marks, Tape Termination, Engine Overheating temperature

Colour

Black, Grey

The MERTECH G700 thermal transfer printer is designed for label printing on an industrial scale. He can print up to 30,000 labels per working day. Printing is carried out at speeds up to 203.2 mm/sec. Thermal transfer printing technology ensures the durability of inscriptions and images.

Technical specifications

The industrial model prints any 1D and 2D barcodes with a resolution of 203 DPI. Supported encodings include QR Code and Data Matrix. The model is suitable for the manufacture of excise stamps for the USAIS and labels for marking "Honest MARK".

Advantages of the device:

Thermal transfer technology.
Information application rate: 203.2 mm/sec.
The maximum width of the label tape is up to 120 mm.
Production of up to 30,000 labels per shift.
The diameter of a roll with labels is up to 254 mm.
Compatible with all ribbon types.
Convenient replacement of the tape using the Easy Load system.
High-quality housing assembly.
Connecting to a Windows and Linux PC.

A wide range of interfaces can be implemented in the MERTECH G700 model. The basic version is equipped with USB Type B, RS232, Ethernet, USB HOST (3 pcs) and Parallel ports. Optionally, Wi-Fi and RFID interfaces are available.

The complete set of the device may include a label cutter and a label separator, an external roll holder (for an additional fee). The cutting knife has a life of 1 million. labels.

When you purchase a printer, you will get access to the Bartender program for managing templates. This program allows you to create and edit printing templates and add new fonts.

Order an industrial printer

On the MERTECH company's website, you can buy a MERTECH G700 industrial printer at a low price from the manufacturer. The equipment is delivered to all regions of Russia. To place an order, leave a callback request, and our manager will contact you soon.

Audio and visual indication

Yes

Bartender Support

Yes

Body material

ABC + PC (plastic + polycarbonate)

Built-in sensors

Paper availability, Ribbon availability, Lid opening, Label Gap, Printhead Temperature, Black Marks, Tape Termination, Engine Overheating temperature

Colour

Black, Grey

Diameter of the roll sleeve

1.5 inches (38.1 mm), 3 inches (76.2 mm)

EasyLoad

Yes

Equipment

Printer, Interface connection cables (RS232 and USB), Power supply, CD with instructions and software, Warranty card, Packaging

External holder

Yes (optional)

Flash memory

256 Mb

Food

AC 220V, 50Hz

Gross weight

16.8 kg

Guarantee

2 years old

Interface

USB Type B, RS232, Ethernet, USB HOST (3 pcs), Parallel. Wi-Fi — optional, RFID — optional

Label Separator

Yes (optional)

Length of the printing area, mm

15 - 1524

Operating temperature

5 ~ 40°C

OS Support

Windows 2000, Vista, 7, 8, 10, 11, IOS

Overall dimensions (WxDxH), mm

460x263x330

Package dimensions (1 pc.)

61.5x50x41.5 cm

Paper thickness, mm

0.08 - 0.25 (76 microns - 250 microns)

Paper width, mm

25-120

Permissible humidity

30 - 85% (operation); 10 - 90% (storage)

Print resolution

300 dpi

Print speed

Up to 203.2 mm/sec

Print type

Thermal transfer

Print width, mm

104

Printer Class

Industrial

Printer frame Material

Metal

Printing material

Paper, textile and synthetic tapes, labels

Printing protocol

TSPL, ZPL, EPL, DPL

QR Code Printing

Yes

RAM memory

512 Mb

Recommended print volume per day

30,000 labels

Ribbon band width (min/max), mm

25-120

Ribbon roll winding length

450 mm (600 mm optional)

Ribbon sleeve diameter

25.4 mm (1 inch)

Ribbon type

Wax-based; wax- and resin-based; resin-based

Ribbon winding

OUT

Roll diameter, mm

Up to 250 (up to 10 inches)

Roll winding length, m

450

Software compatibility

GBS.Market, Service+, Triar, Labeling.Simply

Storage temperature

-20°C ~ +50°C

Supported 1D barcodes

Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock

Supported 2D barcodes

PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code

Supported code pages

PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)

Tape rewinding function

Yes

The ability to download fonts

Yes

The cutter

Yes (optional)

The cutter's resource

1 million

Thermal head resource

50 km

USAIS support

Yes

Weight

12.5 kg

Width of the tape (min/max), mm

30 - 110
