MERTECH MovFast S45 GRIP Data Acquisition Terminal

Name: MERTECH MovFast S45 GRIP Data Acquisition Terminal
SKU: 9262
Availability: InStock

Product Code: 9262

Reviews: (0)

In Stock

$0.00

Specifications: (see all)

Areas of application of TSD

For USAIS, For warehouse, For 1C, For inventory, For labeling

Audible and visual indication during scanning

Yes

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Slope ± 60 ° / 360° rotation / Deviation ± 60 °

Battery capacity

5100 mA

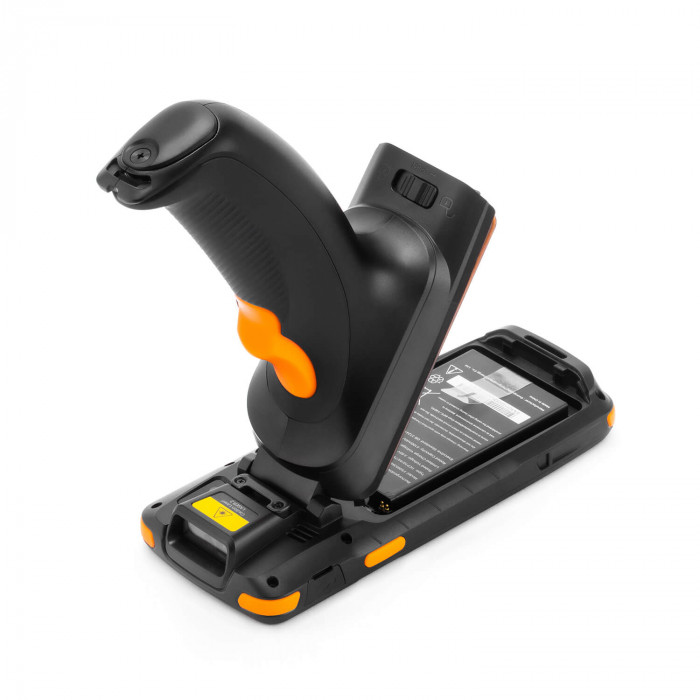

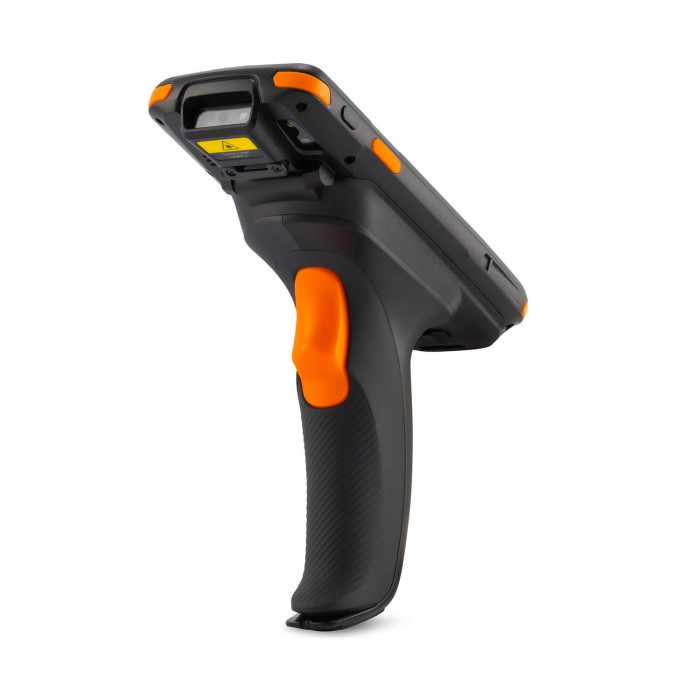

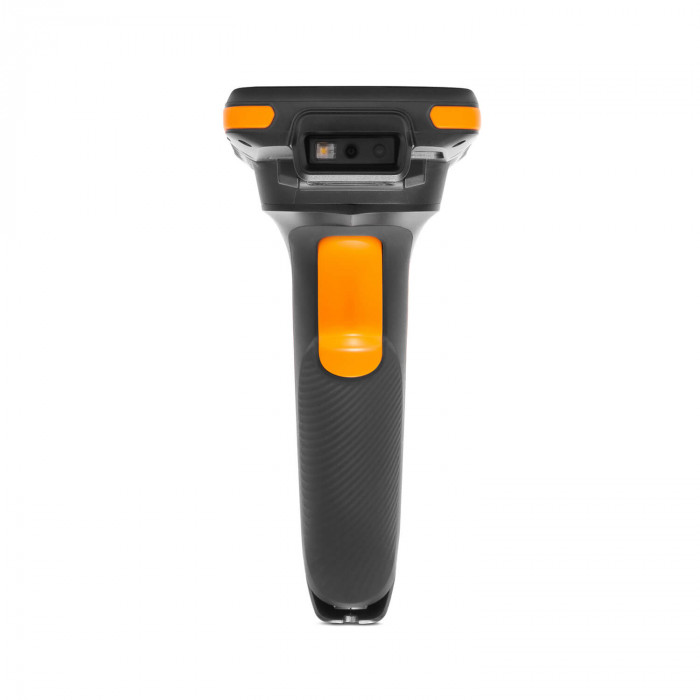

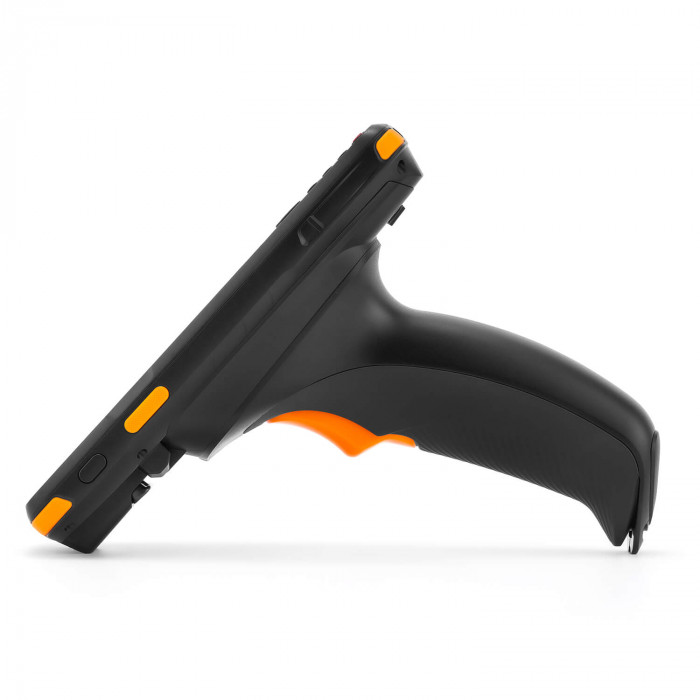

The MERTECH MovFast S45 GRIP data acquisition terminal has a non-standard shape. His pistol grip is an extension of the body, not a removable accessory. This solution provides convenience for staff and speeds up preparation for work. The pistol-grip CD is comfortable to hold, and the scan button is located under the operator's finger. The design of the device speeds up the work of the staff.

Main Features

The built-in E4 scanning module is equipped with a 2700K white backlight. The wide coverage angle of 42° by 27° allows you to recognize labels the first time. Scanning is performed at a distance of up to 40 cm. The scanner responds to fuzzy barcodes with a contrast of more than 20%. TSD recognizes all popular barcode formats, including Data Matrix, QR Code, and PDF417. The model is suitable for working with the USAIS and the "Honest Sign".

Technical specifications:

An eight-core MTK 8-core processor.
Rear camera: 13 MP.
Front camera: 2 MP.
Flash memory: 32 GB.
RAM memory: 3 GB.
Platform: Android 11.

A touch screen and a push-button keyboard are used for input. A 4-inch capacitive touchpad with a pixel density of 233 ppi ensures high image quality. A reliable safety glass is installed on top of the screen. The terminal can withstand many falls from a height of up to 1.5 m.

Advantages of the model

TSDs with a non-removable pistol grip are convenient to use. If the TSD is not properly attached to the removable handle, it may fall off. Removable accessories are sometimes lost during operation, which leads to increased costs. The pistol-shaped model is devoid of these drawbacks.

The MERTECH MovFast S45 GRIP connects to Wi-Fi and Bluetooth wireless networks, as well as 2G-4G mobile networks. The 5100 mA battery provides up to 14 hours of wireless operation. The TSD supports hot-swapping the battery using a backup power source. The battery charges from 0 to 100% in an average of 3 hours.

The base amount of memory can be expanded. The terminal has slots for installing Micro SD Card and SDHC 128 GB. Two nanoSIM cards can be installed in the device for communication. There is a USB Type-C port for connecting to a PC. Enclosure protection class: IP65. The device is suitable for outdoor use or in an unheated warehouse.

Place an order

You can buy the MovFast S45 GRIP TSD on the official MERTECH website. When placing an order on the website, low prices from the manufacturer are available. There is a favorable discount system for wholesale buyers. Leave a request to order a pistol-grip terminal.

Areas of application of TSD

For USAIS, For warehouse, For 1C, For inventory, For labeling

Audible and visual indication during scanning

Yes

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Slope ± 60 ° / 360° rotation / Deviation ± 60 °

Battery capacity

5100 mA

Battery charge time

from 3 hours

Bluetooth (WPAN)

Bluetooth 5.0 (BLE support)

Body material

ABC + PC (plastic + polycarbonate)

Brightness

Typical 450cd/m2；Minimum: 400cd/m2

Buttons

Keyboard 23 buttons on the front, Power on button (screen lock button), Scan button *3

Camera

The back: 13 Megapixels, with autofocus and flash Front-facing: 2 Megapixels with fixed focus

Cellular communication (WWAN)

LTE 2G/3G/4G

Colour

Black

Display Type

Touch screen

Drop test

It can withstand multiple falls from a height of 1.5 m.

Duration of operation on a single battery charge

up to 14 hours

Fingerprint Scanner

Optional

Flash Memory

32 GB

Food

DC 5V 2A

GMS Support

GPS

GPS, Beidou, GLONASS

Gross weight

0.467 kg

Guarantee

2 years old

Hot battery replacement

Yes

Keyboard

Physical

Masterbox sizes

40x23x21 cm

Masterbox weight, kg

4.032 kg

Matrix Type

IPS

Minimum barcode contrast

20%

NFC

Operating temperature

-20 °C - +60 ° C

Overall dimensions (WxDxH), mm

160*68*140

Package dimensions (1 pc.)

19x8x16.5 cm

PC connection interface

USB Type-C, OTG support

Permissible humidity

5%- 95%

Permission

WVGA, 800×480

Pixel density

233 ppi

Processor

MTK 8-core MT6762 8*2.0GHz

Quantity in the masterbox, pcs

RAM memory

3 GB

Resistance to external influences

IP65

RFID

Scanner Model

Scanner resolution

1280(H)x800(V)Px

Scanning coverage angle

42º(h)x27º(v)

Scanning range

Code39 (20mil) 150-570mm, QR (15mil) 50-420 mm

Sensor type

Industrial

Sensors

G-sensor, proximity sensor, gyroscope, electronic compass, light sensor

Slots

Micro SD Card, 128GB SDHC compatible, 2*nanoSIM

Software compatibility

Marking.It's just AN Honest SIGN.Business, Cleverance, Bifit Mobile TSD, AllegroSoft, Mercury-ERP, Contour Market, OPTIMUM SUMS, NEMIKA WMS CLOUD

Storage temperature

- 40 °C - +70 °C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal

Supported 2D barcodes

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin

The backlight

White, 2700K

The diagonal

4,0

The operating system

Android 11

The scanning module

2D image

Touch panel

Capacitive

Touch panel glass

Panda MN 228 (equivalent to Corning Gorilla 3)

Type of TSD

Industrial, Mobile

USAIS support

Yes

Weight

370 gr

Wi-Fi (WLAN)

2.4G/5G, IEEE 802.11a/b/g/n/ac standards, 802.11 d/e/h/i/j/k/r/v/w protocols
