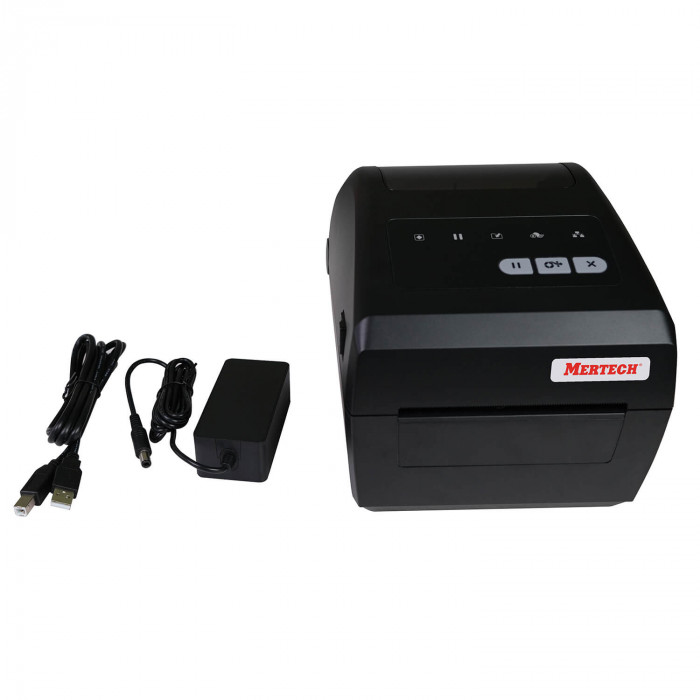

MERTECH LP4 ZENITH Label Printer

The MERTECH LP4 ZENITH is a direct thermal desktop printer for intensive daily work in retail, warehouse, logistics and marketplaces. The device prints up to 152 mm/s, the recommended daily volume is up to 10,000 labels, and the thermal head has a life of 50 km. The printer is compatible with key drivers and software, supports USAIS and QR code printing, connects via USB and Ethernet, and confidently works with a wide range of materials.

Advantages of the printer

• High performance: Speeds of up to 152 mm/s and a daily load of up to 10,000 labels are available for streaming printing without queues.
• Ready for labeling: QR code printing, USAIS support and "Fair Sign" scenarios (shoes, alcohol, textiles, etc.).
• Flexible formats: printing width from 25 to 108 mm; label length from 10 to 250 mm — for tasks from narrow labels to full-size labels.
• Compatibility without surprises: TSPL, ZPL and DPL protocols simplify migration and integration; works with Marking.Simply, BarTender and 1C.
• Stability and quality: 203 dpi for clear barcodes and text; built-in sensors for lumen, black mark (adjustable) and head opening.
• Multilingual printing: support for extended code pages (Windows-1250...1258, ISO-8859-1/2/3/4/5/6/8/9/15, PC437, etc., as well as DBCS 932/936/949/950) for international logistics.
• Minimum downtime: EasyLoad for fast refueling, Tape rewinding and Feed function — fast calibration and smooth unwinding.
• Flexibility in materials: self-adhesive thermal labels, black label, receipt tape; thickness 60-250 microns; rollers up to Ø127 mm, 0.5"/1" sleeve.
• Network and workstations: USB for local printing and Ethernet for network access from multiple PCs/cash registers.
• Reliability from design to service: 50 km head life, 2-year warranty, audible and visual status indication.

Main Features

Class and type of printing

Desktop label printer, direct thermal printing, resolution 203 dpi.

Speed and Resource

lt;dd;Up to 152 mm/s; recommended volume — up to 10,000 labels/day; thermal head life — 50 km.

Printing Area

lt;dd;Width 25-108 mm; length 10-250 mm; material support width 25.4–118 mm.

Materials

lt;dd;Thermal labels, black label, receipt tape; thickness 0.06–0.25 mm (60-250 microns); roll diameter up to 127 mm; sleeve 0.5" (12.7 mm) / 1" (25.4 mm); external holder is optional.

Compatibility and Protocols

lt;dd>TSPL + ZPL + DPL; Windows 7/8/8.1/10/11 OS support; Software compatibility Marking.Simply, BarTender, 1C, marketplaces (Ozon, Wildberries) and cash solutions (including EVOTOR).

Barcodes

lt;dd>1D: Code 39/93/128 (UCC/A/B/C), Codabar, Interleaved 2 of 5, EAN-8/13/128, UPC-A/E, MSI, GS1 DataBar, etc. 2D: QR, DataMatrix, PDF417, Aztec, Maxicode.

Printing Functions

QR code printing, USAIS support, Font loading, EasyLoad, Tape Rewinding function, Feed function.

Memory

lt;dd;Flash 128 MB, RAM 32 MB — for storing fonts, logos and templates, stable printing of long queues.

Sensors

lt;dd;Lumen sensor, black mark sensor (adjustable), head opening sensor — accurate calibration and protection against feed errors.

Interfaces

lt;dd;USB, Ethernet — local and network printing.

Power Supply

lt;dd;Input: AC 100-240 V, 2.0 A, 50/60 Hz; Output: DC 24 V, 2 A (48 W); power supply cable length — 2.5 m.

Operation and Storage

lt;dd;Operation: +5...+40 °C, humidity 25-85%; storage: -20...+50 °C, humidity 10-90%.

Equipment

lt;dd;Printer, USB cable, power supply, warranty card, packaging.

Other

lt;dd;gt;Support for extended code pages (Windows-1250...1258, ISO-8859-1/2/3/4/5/6/8/9/15, PC437, etc.; DBCS 932/936/949/950); audio and visual indication.

Housing and materials

The body and frame are made of durable black ABC plastic, which is resistant to everyday loads and has a neat appearance in the shopping area. Compact dimensions 175×160×219 mm and a weight of 1.65 kg allow you to place the device in any workplace without redevelopment. Sound and light indications promptly inform about the printer's status, simplifying the work of operators.

The design is focused on easy maintenance: quick access to feed paths, EasyLoad roll loading, accurate label position sensors and black label adjustment minimize defects and downtime.

Buy with delivery

Order the MERTECH LP4 ZENITH on the manufacturer's website and get a reliable label printing solution ready to work with labeling and marketplaces. Fast delivery throughout Russia, integration advice and assistance in the selection of consumables are available. Place an order now — optimize printing processes and reduce transaction costs in the coming days.
