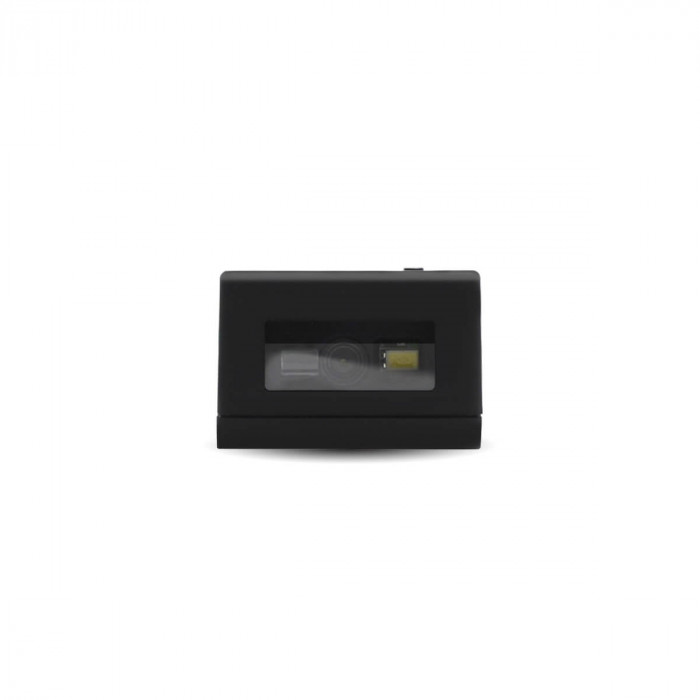

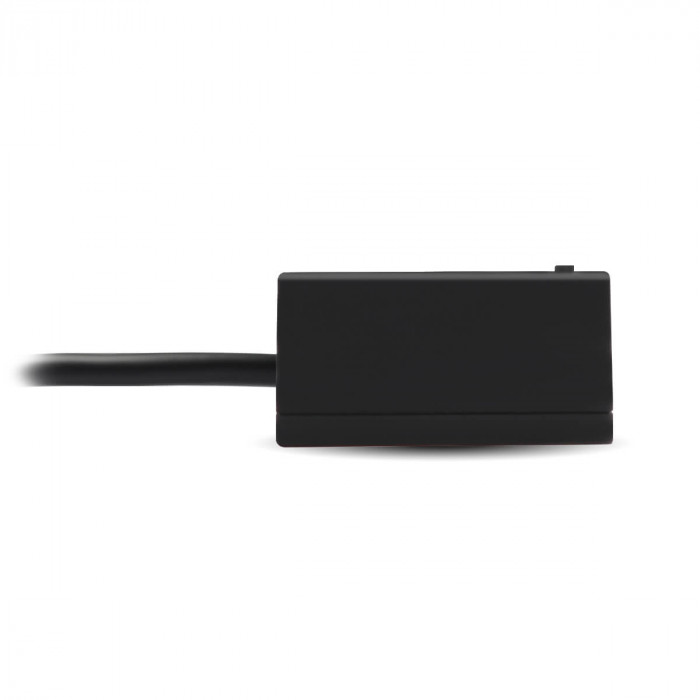

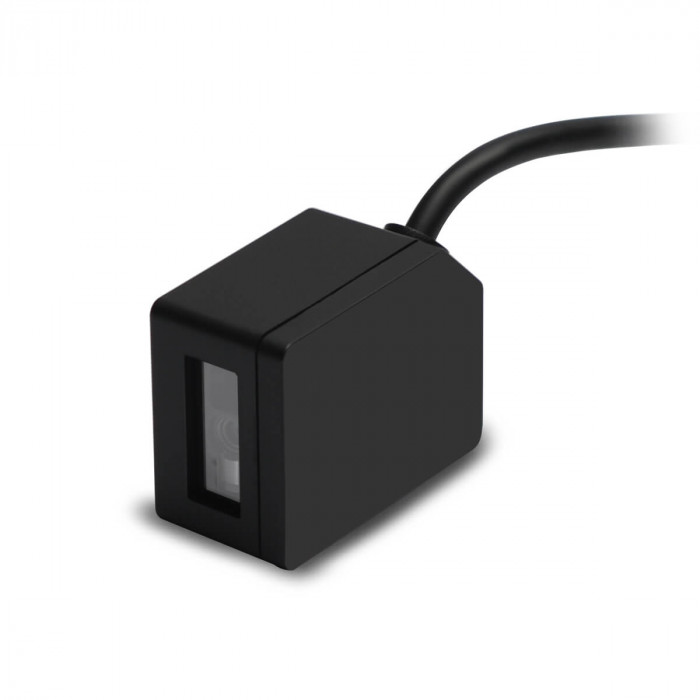

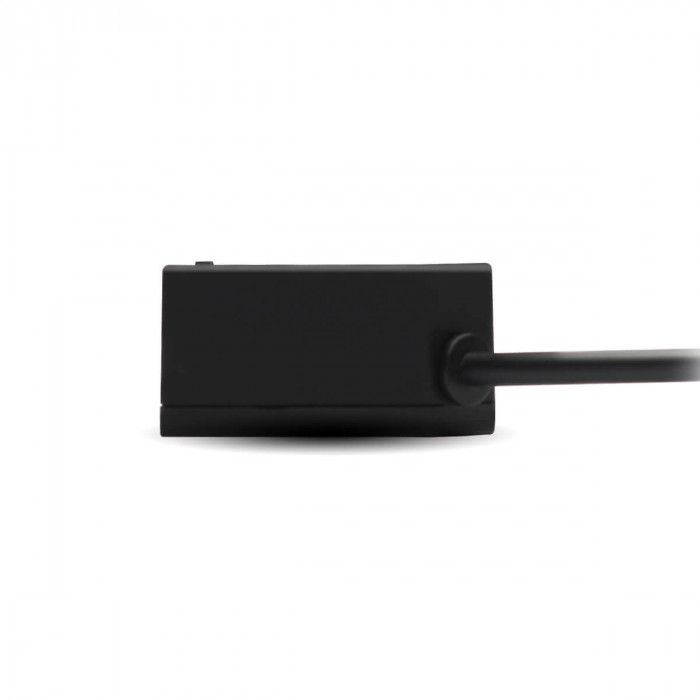

MERTECH N200 P2D Barcode Scanner Black

Name: MERTECH N200 P2D Barcode Scanner Black
SKU: 4102
Price: 111 USD
Availability: InStock

Product Code: 4102

Reviews: (0)

In Stock

$111.00

Specifications: (see all)

13 MIL

60-180 mm

5 MIL

40-90 mm

Audio and visual indication

Yes

Automatic scanning

Barcode Reading

1D, 2D

The MERTECH N200 2D is an embedded two-dimensional barcode scanner. The device reads all known 1D and 2D codes. The innovative SuperLead technology is used for reading. This compact model is suitable for use in vending machines.

Technical specifications

The size of the device is only 49mm*38mm*20mm, and the weight is 37 g. The product body is made of primary plastic and polycarbonate (ABC+PC). Due to its small size, this device can be used as a regular mobile scanner.

Main technical characteristics of the model:

Operation speed: up to 100 scans per second.
Code recognition range: 370 mm.
Minimum barcode contrast: 25%.
Coverage angle: 360*65*60 degrees.
The backlight is 6500K white LED.
The screen resolution is 640x480 pixels.
Power supply: 5V/400mA.

The embedded scanner is connected via USB-HID, USB-COM (emulation) and RS-232 (optional). The package includes a 205 cm long USB type A cable. Synchronization with the system is performed automatically.

Advantages of the model

The 2D Image scanning module reads markings from any surface. The MERTECH N200 2D reads codes from smartphone screens and mirrored surfaces. It recognizes damaged and poorly printed markings.

Due to the ergonomic design of the case, the device has high impact resistance. It can withstand multiple falls from a height of up to 150 cm. Enclosure dust and moisture protection class: IP 54. This is a fairly high degree of protection that allows the device to be used indoors or outdoors.

The device automatically wakes up from sleep mode when a product with a label is brought to the reader module. The automatic scanning mode is available. The operation is accompanied by an audible and visual indication.

Place an order

You can buy an embedded MERTECH N200 2D scanner at a low price from the manufacturer. We will deliver the order to any point in Russia. To make a purchase, leave a request on the website, place an order in the online store, or call us by phone.

13 MIL

60-180 mm

5 MIL

40-90 mm

Audio and visual indication

Yes

Automatic scanning

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Slope ± 65 °/360° rotation/Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Box dimensions, mm

100*80*105

Colour

Black

Connection type

Wired

Drop test

It can withstand multiple falls from a height of 1.5 m.

Equipment

Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging

Gross weight

0.182 kg

Guarantee

3 years old

Interface

USB-HID; USB-COM emulation; RS232 - optional

Masterbox sizes

52x42x45 cm

Masterbox weight, kg

19.6 kg

Minimum barcode contrast

25%

Minimum scan resolution

4 MIL

Operating temperature

0°C ~ +50°C

Overall dimensions (WxDxH), mm

49*38*20

Package dimensions (1 pc.)

10x8x10.5 cm

Permissible humidity

0% ~ 95%

Quantity in the masterbox, pcs

100 pieces

Resistance to external influences

IP54

Scanner resolution

640(H)x480(V)Px

Scanner type

Embedded

Scanning coverage angle

45º(h)x35º(v)

Scanning range

Up to 370 mm

Scanning speed

100 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal

Supported 2D barcodes

PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin

The backlight

White 6500K LED

Type of scanning module

2D image

USAIS support

Yes

Weight

37 grams
