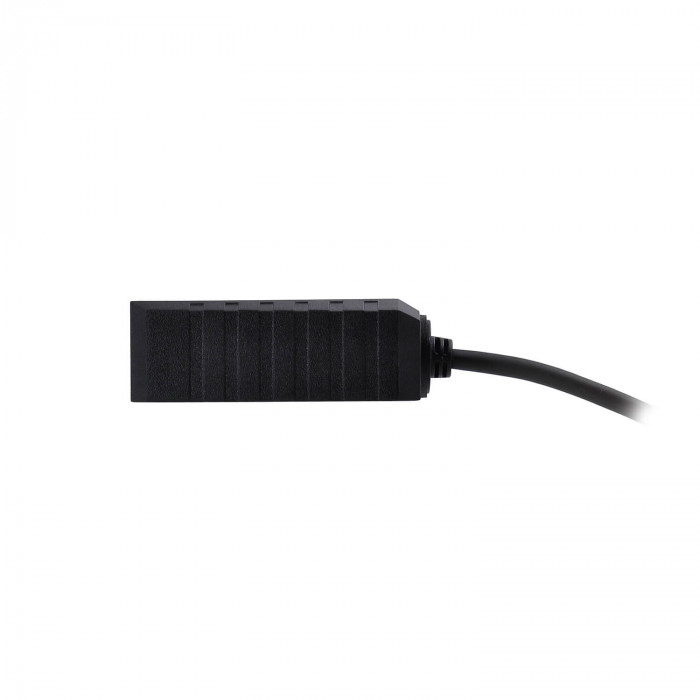

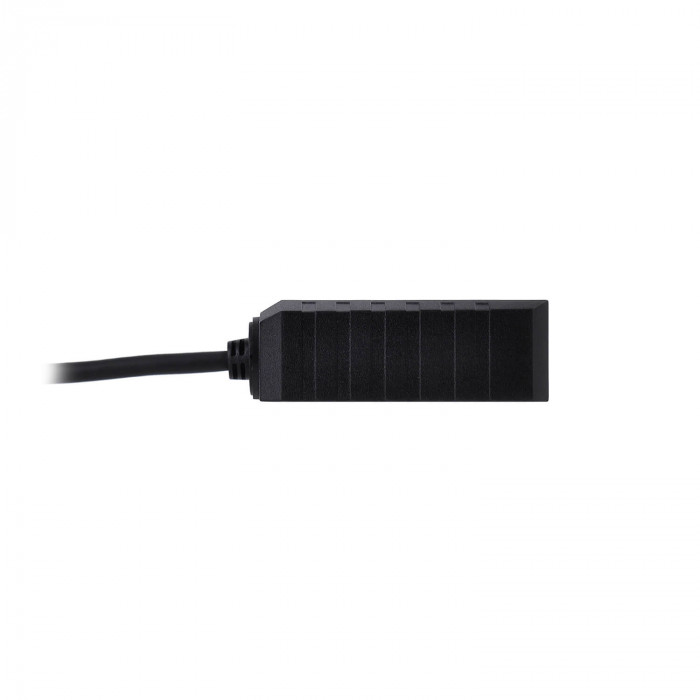

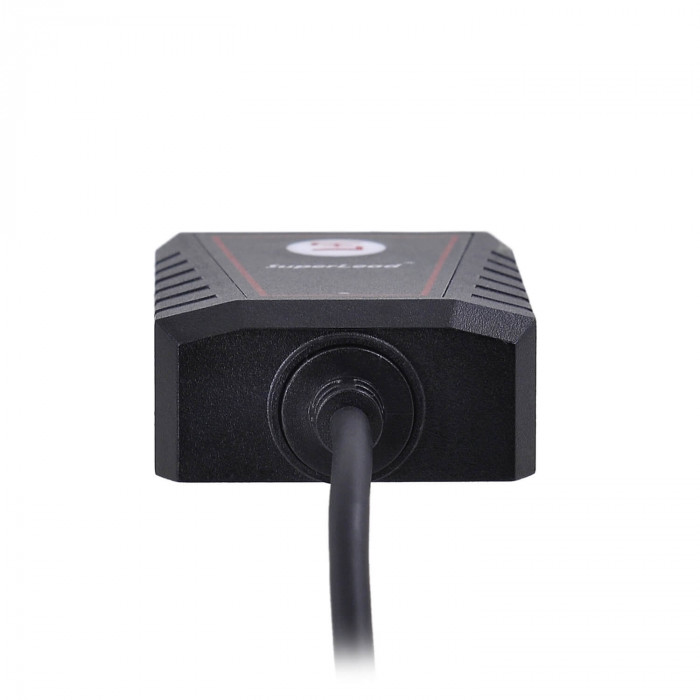

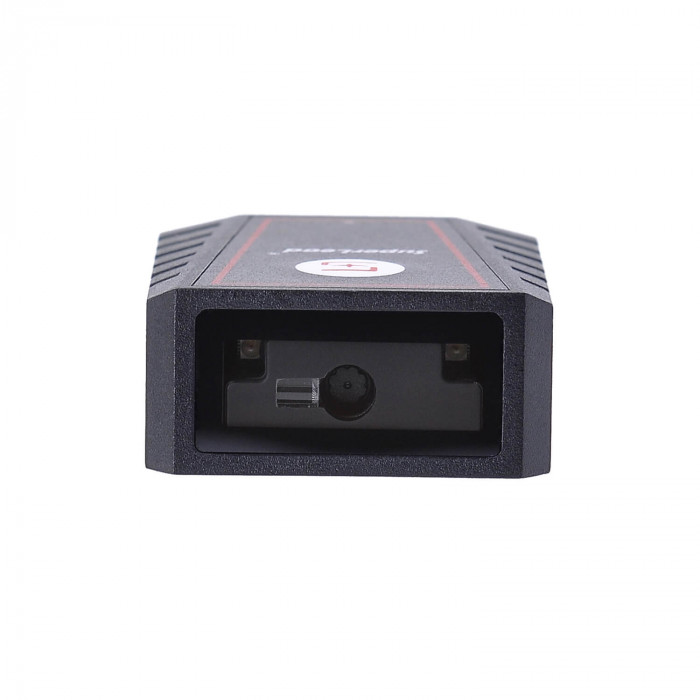

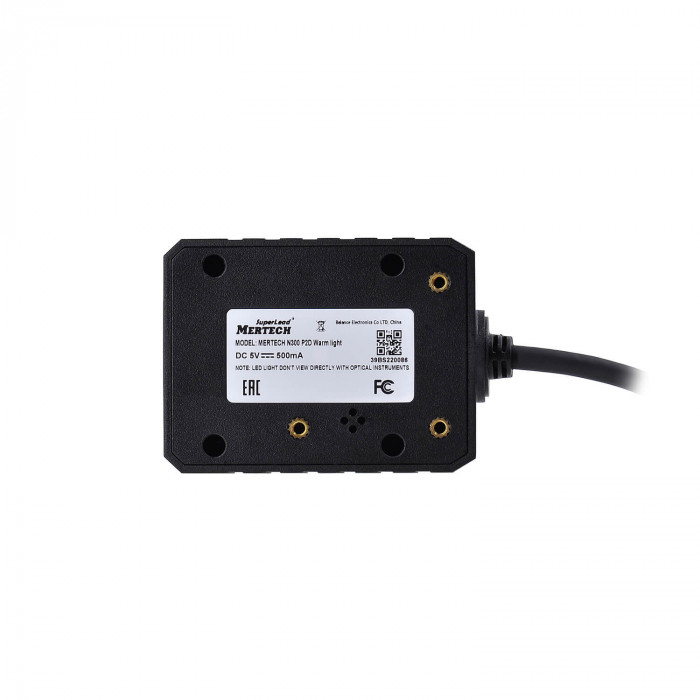

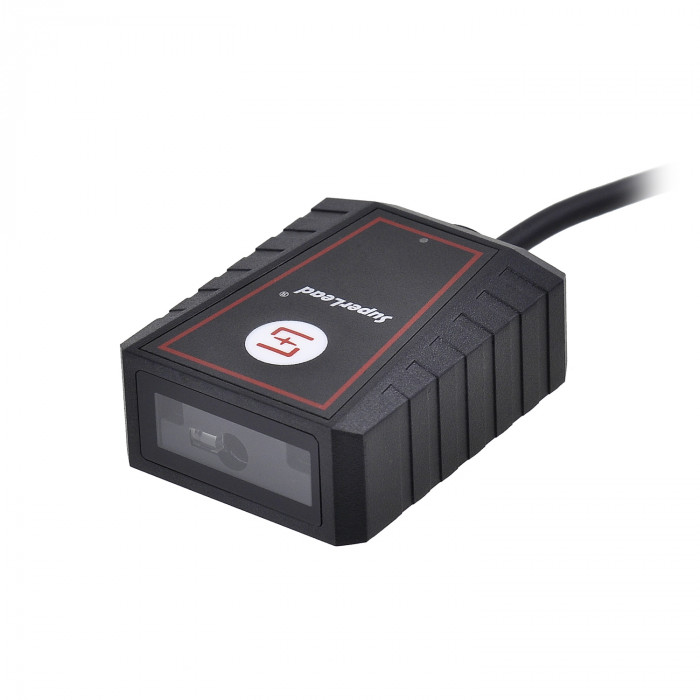

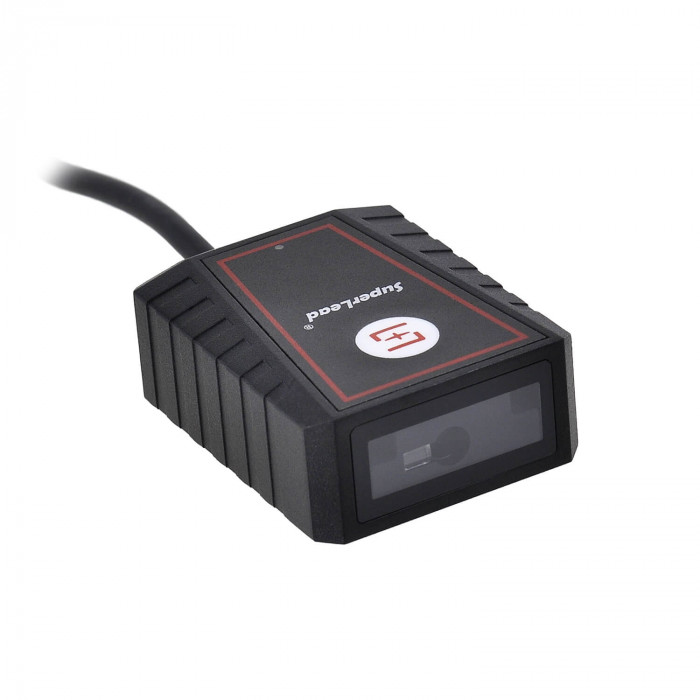

MERTECH N300 warm light 2D embedded barcode scanner

Name: MERTECH N300 warm light 2D embedded barcode scanner
SKU: 4861
Price: 124 USD
Availability: InStock

Product Code: 4861

Reviews: (0)

In Stock

$124.00

Specifications: (see all)

13 MIL

40-300 mm

5 MIL

50-110 mm

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

The embedded MERTECH N300 warm light 2D scanner is suitable for installation inside the cashier's workplace. Thanks to its closed case, it can be used as a stationary barcode scanner. A small appliance does not require much space on the table. The model is suitable for outlets with high traffic.

Technical specifications

The size of the embedded scanner 67*50*27 mm. The small device has a sturdy housing made of polycarbonate and aluminum. The device can withstand falls from the height of the table (up to 150 cm).

The main characteristics of the model:

The scanning speed is 100 scans/sec.
The recognition distance is up to 500 mm.
Warm red illumination of 617 nm.
Automatic scanning mode.
High enclosure protection class IP 65.

The USB-HID interface is used to connect to the online sales register. USB-COM and RS-232 emulation is available upon customer's request.

Advantages of the model

The main feature of the MERTECH N300 warm light 2D model is the 617 nm red backlight. The warm backlight reduces the strain on the cashier's eyes without losing the scanning efficiency. In automatic mode, scanning occurs automatically when the label is applied.

Barcode reading is performed using SUPERLEAD technology. The 2D Image scanning module is suitable for recognizing barcodes from complex surfaces, including mobile device screens. Damaged and indistinct labels are detected with a contrast of 25%.

The embedded scanner can recognize any barcodes, including PDF417 excise stamps and Data Matrix labels. You can use it to sell alcohol and labeled goods (support for the Honest SIGN system).

To order the equipment, make a request on the website. Low prices are available when placing an order on the MERTECH website or at one of the authorized dealers.

13 MIL

40-300 mm

5 MIL

50-110 mm

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABS+PC

Box dimensions, mm

100*80*105

Colour

Black

Connection type

Wired

Drop test

It can withstand a fall from a height of 1.5 m.

Equipment

Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging

Food

5V/400mA

Gross weight

0.164 kg

Guarantee

3 years old

Interface

USB-HID; USB-COM emulation

Masterbox sizes

52x42x45 cm

Masterbox weight, kg

17.8 kg

Minimum barcode contrast

25%

Minimum scan resolution

4 MIL

Operating temperature

0°C ~ +50°C

Overall dimensions (WxDxH), mm

67*50*27

Package dimensions (1 pc.)

10x8x10.5 cm

Permissible humidity

0% ~ 95%

Quantity in the masterbox, pcs

100 pieces

Resistance to external influences

IP65

Scanner resolution

640(H)x480(V)Px

Scanner type

Embedded

Scanning coverage angle

45º(h)x35º(v)

Scanning range

Up to 500 mm

Scanning speed

100 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal

Supported 2D barcodes

PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin

The backlight

Red 617nm

Type of scanning module

2D image

USAIS support

Yes

Weight

50 g
