$137.00

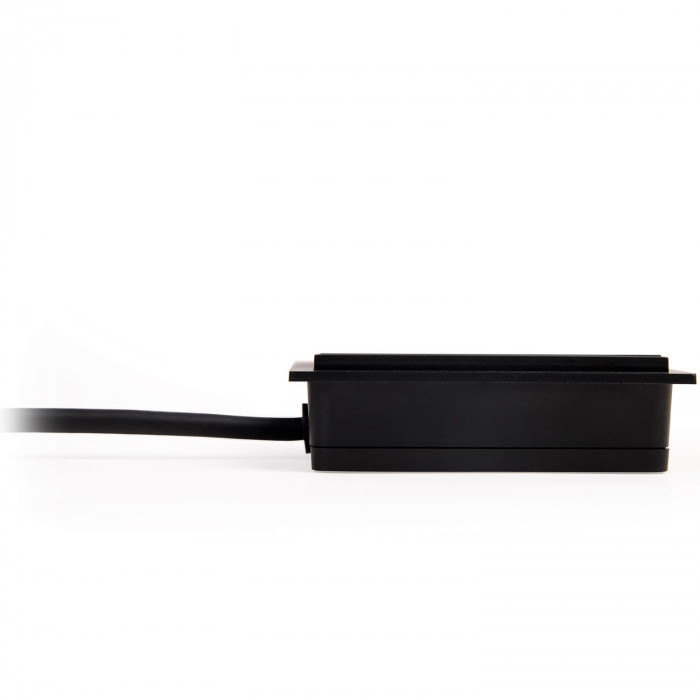

Embedded Barcode Scanner MERTECH SF50 P2D USB

Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Embedded Barcode Scanner MERTECH SF50 P2D USB
Product Code: 4855
Reviews: (0)
In Stock
$137.00
Buy in one click
Specifications: (see all)
13 MIL
20 - 150 mm
6,8 MIL
10 - 50 mm
Audible and visual indication during scanning
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D

The embedded MERTECH SF50 scanner (IC, Mifare, Phone) P2D USB reads any 1D and 2D codes. It recognizes the Data Matrix encoding and is suitable for working with labeled products. You can integrate it into the operator's desktop or use it as a separate device.

Device Characteristics

The main characteristics of the presented model:

  1. Barcode reading speed: 100 scans/sec.
  2. The angle of capture during scanning: 72° x 57°.
  3. The resolution of the photo scanner is 640x480.
  4. Range of operation: up to 170 mm.
  5. Bright 5000K LED backlight in white.
  6. Encoding recognition with 20% contrast.
  7. Working with labels pasted on complex surfaces.
  8. Sound and light indication of scanning.

USB-HID is used to connect to the system. Optionally, USB-COM or RS232 emulation is available.

Housing Characteristics

The small device can be easily integrated into any workplace structure. Its dimensions are 78*67*23 mm. The barcode reader weighs only 91 grams.

The case is made of reliable materials: plastic and polycarbonate. The scanning window is covered with scratch-resistant glass. This technical solution increases the impact resistance of the housing.

Protection class of the device: IP54. The device is suitable for long-term operation in difficult conditions. It operates at temperatures from -30 °C to +70 °C and humidity up to 95%.

Order embedded scanners

You can buy barcode scanners from the manufacturer in the MERTECH online store. Low prices from the manufacturer are available when ordering through the website. The warranty for embedded scanners is valid for 3 years.

The equipment is delivered throughout Russia. Make a request or call us by phone to place an order.

13 MIL
20 - 150 mm
6,8 MIL
10 - 50 mm
Audible and visual indication during scanning
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes
Barcode sensitivity
Tilt ± 65° / 360° Rotation / Deviation ± 60 °
Body material
ABC + PC (plastic + polycarbonate)
Colour
Black
Connection type
Wired
Equipment
Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging
Food
3.3-5V/300mA
Gross weight
0.22 kg
Guarantee
3 years old
Interface
USB-HID; USB-COM emulation; RS232 optional
Minimum barcode contrast
20%
Minimum scan resolution
5 MIL
Operating temperature
-30°C ~ +70°C
Overall dimensions (WxDxH), mm
78mm*67mm*23mm
Package dimensions (1 pc.)
21.5x7.5x10 cm
Permissible humidity
0% ~ 95%
Protection of the scanning module
Scratch-resistant glass
Resistance to external influences
IP54
Scanner resolution
640(H)x480(V)Px
Scanner type
Embedded
Scanning coverage angle
72º(h)x57º(v)
Scanning range
Up to 170 mm
Scanning speed
100 scans/sec
Storage temperature
-40°C ~ +150°C
Support is an honest SIGN
No
Supported 1D barcodes
UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal
Supported 2D barcodes
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin
The backlight
White 5000K LED
The scanning module
2D image
USAIS support
No
Weight
91 grams
