MERTECH N200 industrial P2D USB Barcode Scanner

Name: MERTECH N200 industrial P2D USB Barcode Scanner
SKU: 4854
Price: 128 USD
Availability: InStock

Product Code: 4854

Reviews: (0)

In Stock

$128.00

Specifications: (see all)

13 MIL

60-180 mm

5 MIL

40-90 mm

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical

Audible and visual indication during scanning

Yes

Automatic scanning

Yes

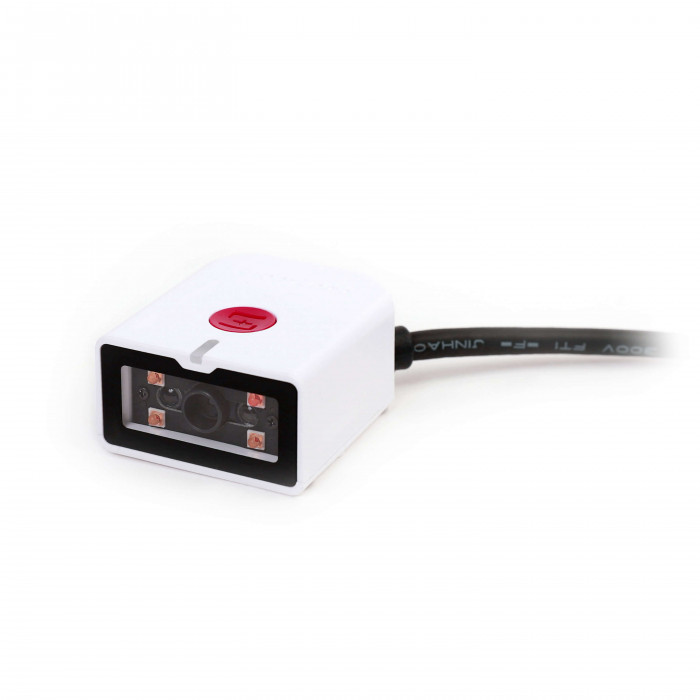

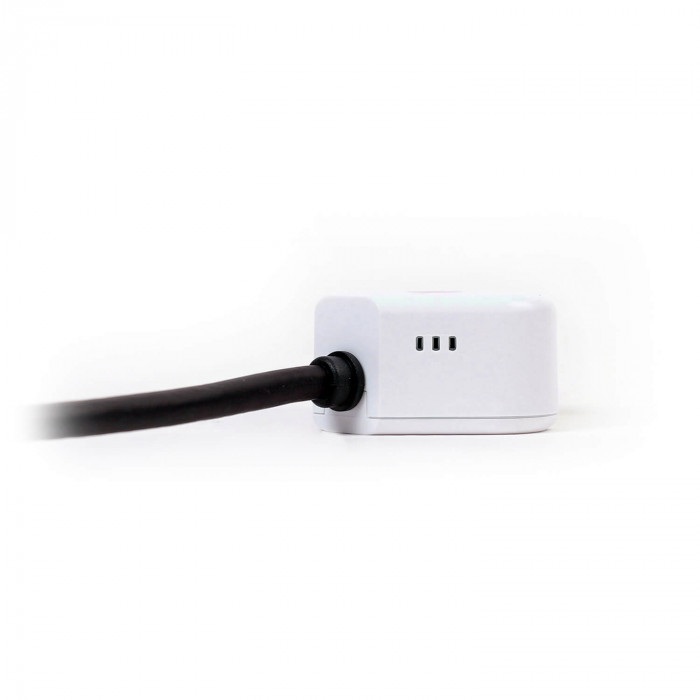

The MERTECH N200 industrial P2D USB is an embedded two-dimensional barcode scanner. The device reads all known 1D and 2D codes. The innovative SuperLead technology is used for reading. This compact model is suitable for use in vending machines.

Technical specifications

The size of the device is only 49mm*40mm*22mm, and the weight is 66 g. The product body is made of primary plastic and polycarbonate (ABC+PC). Due to its small size, this device can be used as a regular mobile scanner.

Main technical characteristics of the model:

Operation speed: up to 180 scans per second.
Code recognition range: 370 mm.
Minimum barcode contrast: 20%.
Coverage angle: '40°(H)x35 °(V).
The backlight is 625nm red LED.
The screen resolution is 640x480 pixels.
Power supply: 5V/500mA.

The embedded scanner is connected via USB-HID, USB-COM (emulation) and RS-232 (optional). The kit includes a 2.05 m long USB type A cable. Synchronization with the system is performed automatically.

Advantages of the model

The 2D Image scanning module reads markings from any surface. The MERTECH N200 industrial P2D USB reads codes from smartphone screens and mirrored surfaces. It recognizes damaged and poorly printed markings.

Due to the ergonomic design of the case, the device has high impact resistance. It can withstand multiple falls from a height of up to 150 cm. Enclosure dust and moisture protection class: IP 54. This is a fairly high degree of protection that allows the device to be used indoors or outdoors.

Place an order

You can buy an embedded MERTECH N200 industrial P2D USB scanner at a low price from the manufacturer. We will deliver the order to any point in Russia. To make a purchase, leave a request on the website, place an order in the online store, or call us by phone.

13 MIL

60-180 mm

5 MIL

40-90 mm

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical

Audible and visual indication during scanning

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Colour

White

Connection type

Wired

Drop test

It can withstand a fall from a height of 1.5 m.

Equipment

Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging

Food

5V/400mA

Gross weight

0.264 kg

Guarantee

3 years old

Interface

USB-HID; USB-COM emulation; RS232 - optional

Masterbox sizes

43x43.5x30.5 cm

Masterbox weight, kg

10.346 kg

Minimum barcode contrast

20%

Minimum scan resolution

4 MIL

Operating temperature

0°C ~ +50°C

Overall dimensions (WxDxH), mm

49mm*40mm*22mm

Package dimensions (1 pc.)

13.5x13.5x7 cm

Permissible humidity

0% ~ 95%

Quantity in the masterbox, pcs

36 pcs

Resistance to external influences

IP54

Scanner resolution

640(H)x480(V)Px

Scanner type

Stationary

Scanning coverage angle

40º(h)x35º(v)

Scanning range

Up to 370 mm

Scanning speed

100 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal

Supported 2D barcodes

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin

The backlight

Red 625nm

The scanning module

2D image

USAIS support

Yes

Weight

66 g
