$111.00

MERTECH S100 2D two-dimensional scanner

MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
MERTECH S100 2D two-dimensional scanner
Product Code: 4103
Reviews: (0)
In Stock
$111.00
Buy in one click
Specifications: (see all)
13 MIL
40-300 mm
5 MIL
50-110 mm
Audio and visual indication
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D

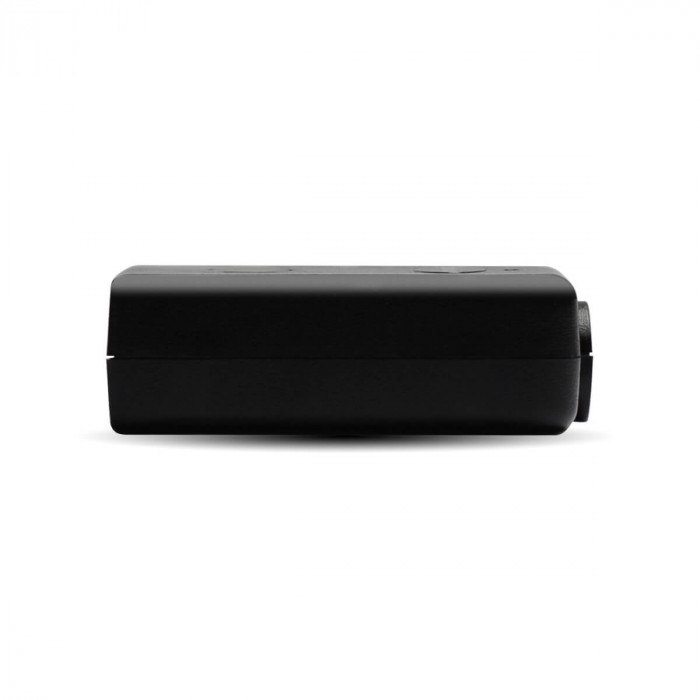

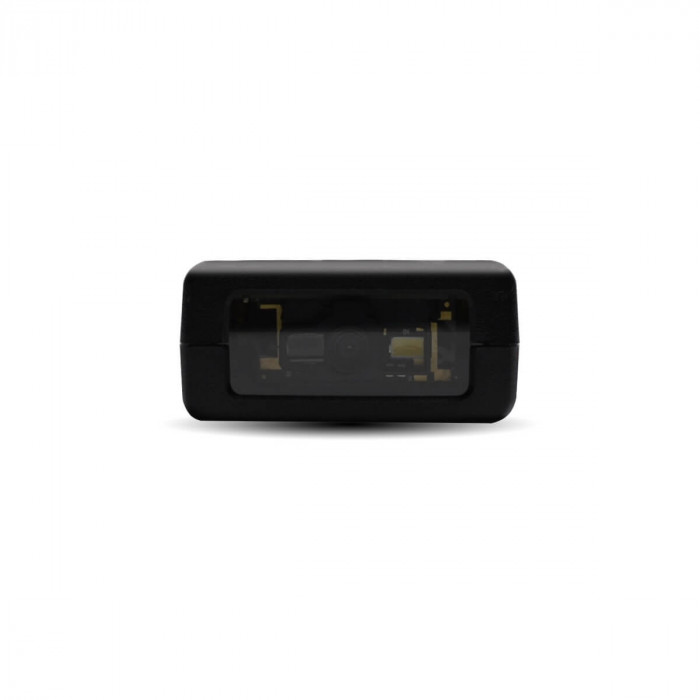

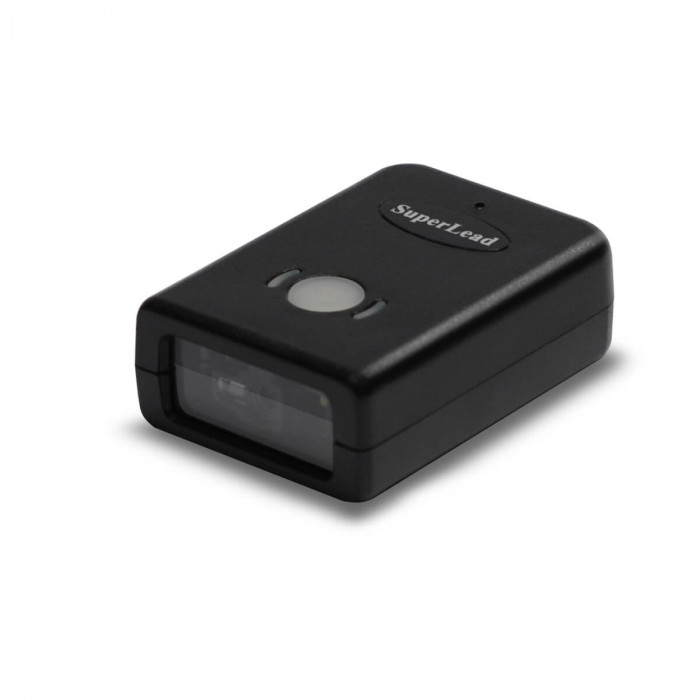

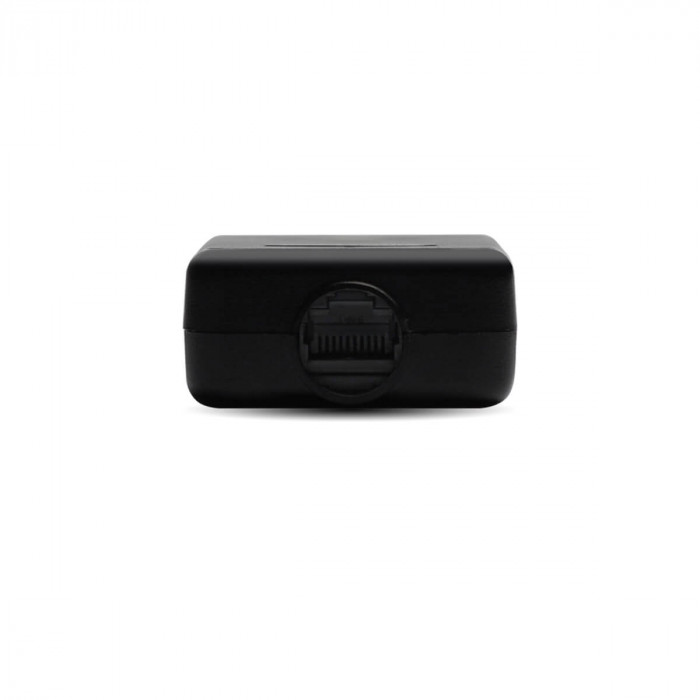

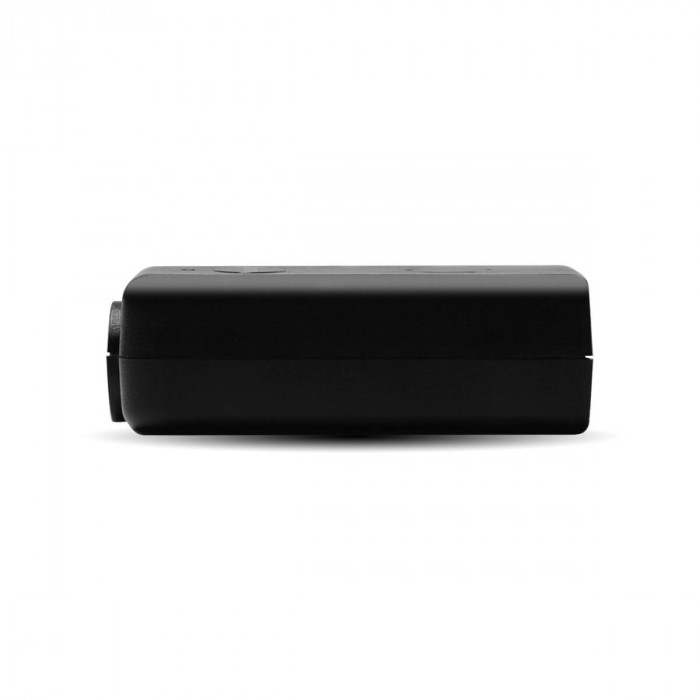

The MERTECH S100 is an embedded 2D scanner from MERTECH. It reads two-dimensional and linear barcodes quickly. The small device can be integrated into a vending machine or used as a mobile scanner.

Technical specifications

The model is small in size. The dimensions of the case are 69mm*47mm*26mm. The device weighs only 50 grams. Despite its small size, the construction is very durable. The case is made of plastic and polycarbonate (ABC+PC). The device can withstand shocks and repeated falls from a height of up to 150 cm.

Operating characteristics of the model:

  1. Scanning module: 2D Image.
  2. Working speed: 100 scans per second.
  3. Scanning range: up to 370 mm.
  4. Minimum contrast ratio: 25%.
  5. Sensitivity: 360*65*60 degrees.
  6. Screen resolution: 640*480 pixels.
  7. The backlight is 6500K LED (white).
  8. Dust and moisture protection: IP42.
  9. Power Consumption: 5V/400mA.

The wired scanner is connected to the system via a USB-HID interface. USB-COM, RS-232 emulation is possible (optional). A USB connection cable is included.

Advantages of the model

The embedded MERTECH S100 scanner recognizes all popular 1D and 2D barcodes. The improved backlight makes it easier to read data. The device successfully recognizes damaged and unclear codes. It can read data from a mobile phone screen or from a mirrored surface.

The patented SuperLead technology ensures fast and accurate data reading. This is a unique technology that is not available in similar models from other manufacturers. The work is accompanied by an audible and visual indication of the process.

An automatic code reading mode is provided. When the device is not active, it goes into sleep mode to reduce power consumption. After bringing the product to the reader, the device will automatically wake up from sleep mode.

Place an order

You can buy a MERTECH S100 scanner at a low price in our online store. We are an official MERTECH dealer and sell equipment at factory prices. You can order the delivery of goods in Moscow or to your city. The delivery service operates in all regions of Russia. To place an order, leave a request on our website.

13 MIL
40-300 mm
5 MIL
50-110 mm
Audio and visual indication
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes
Barcode sensitivity
45º(h)x35º(v)
Body material
ABC + PC (plastic + polycarbonate)
Box dimensions, mm
100*80*105
Colour
Black
Connection type
Wired
Drop test
It can withstand multiple falls from a height of 1.5 m.
Equipment
Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging
Gross weight
0.16 kg
Guarantee
3 years old
Interface
USB-HID; USB-COM emulation; RS232 - optional
Masterbox sizes
52x42x45 cm
Masterbox weight, kg
17.2 kg
Minimum barcode contrast
25%
Minimum scan resolution
4 MIL
Operating temperature
0°C ~ +50°C
Overall dimensions (WxDxH), mm
69*47*26
Package dimensions (1 pc.)
10x8x10.5 cm
Permissible humidity
0% ~ 95%
Quantity in the masterbox, pcs
100 pieces
Resistance to external influences
IP42
Scanner resolution
640(H)x480(V)Px
Scanner type
Embedded
Scanning coverage angle
45º(h)x35º(v)
Scanning range
Up to 370 mm
Scanning speed
100 scans/sec
Storage temperature
-40°C ~ +70°C
Support is an honest SIGN
Yes
Supported 1D barcodes
UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal
Supported 2D barcodes
PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin
The backlight
White 6500K LED
Type of scanning module
2D image
Weight
50 g
