$83.00

MERTECH T5930 P2D Embedded Barcode Scanner

MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
MERTECH T5930 P2D Embedded Barcode Scanner
Product Code: 4862
Reviews: (0)
In Stock
$83.00
Buy in one click
Specifications: (see all)
13 MIL
40-200 mm
5 MIL
30-90 mm
Audible and visual indication during scanning
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D

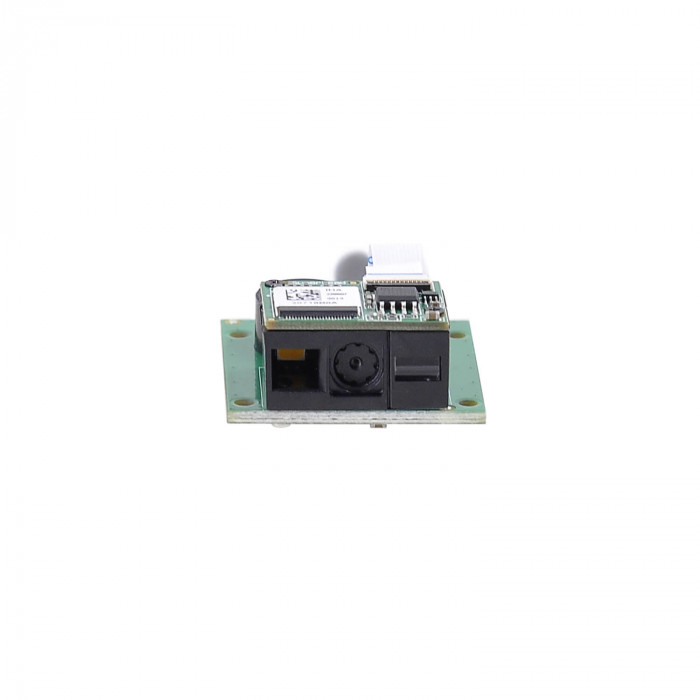

The MERTECH T5930 P2D barcode scanner can be integrated into the operator's work area. Using the embedded model allows you to free up a useful workspace and speed up queue movement. The cashier can bring barcodes to the scanning module and transfer purchases with two hands, so the service time for one customer will decrease.

Advantages

The embedded MERTECH T5930 P2D scanner can be used in retail stores, banks or offices. The scanning module recognizes all popular 1D and 2D barcodes, including Data Matrix and QR Code. The scanner is suitable for the retail sale of alcohol and labeled products.

Advantages of the MERTECH T5930 P2D model:

  • miniature case size;
  • SUPERLEAD scanning technology;
  • The working speed is 100 scans/sec;
  • code recognition range up to 370 mm;
  • Antiferlected® glare suppression technology;
  • Multi-plane scanning support;
  • 1 million trigger triggers without breakdowns.

The device quickly recognizes any barcodes, including small images. The minimum image contrast is 20%. Antiferlected® technology provides accurate scanning from glare surfaces, including transparent film. It is convenient to work with the stationary model in automatic mode.

Technical specifications

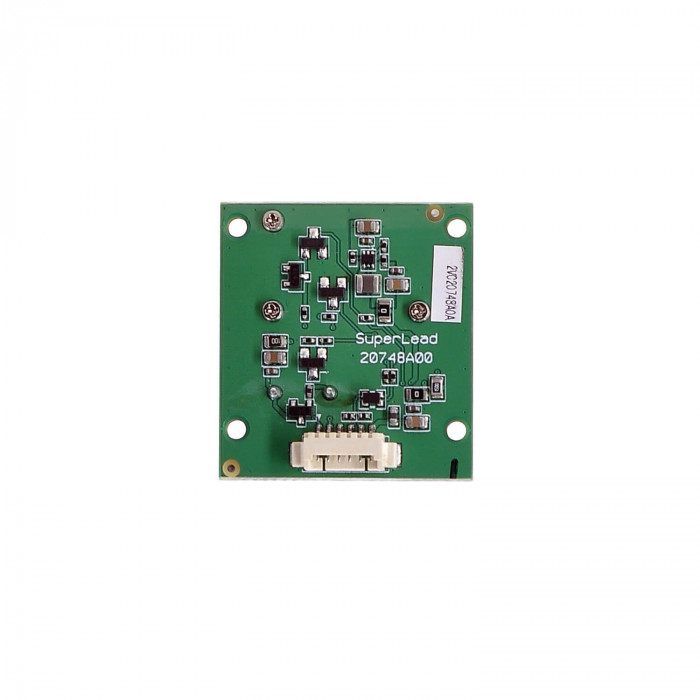

The MERTECH T5930 P2D model has a miniature size. Dimensions of the device: 30*30*17 mm. All the necessary components for scanning barcodes and transmitting information are located in a small area. The absence of external body panels makes it easier to embed the device and reduce the cost.

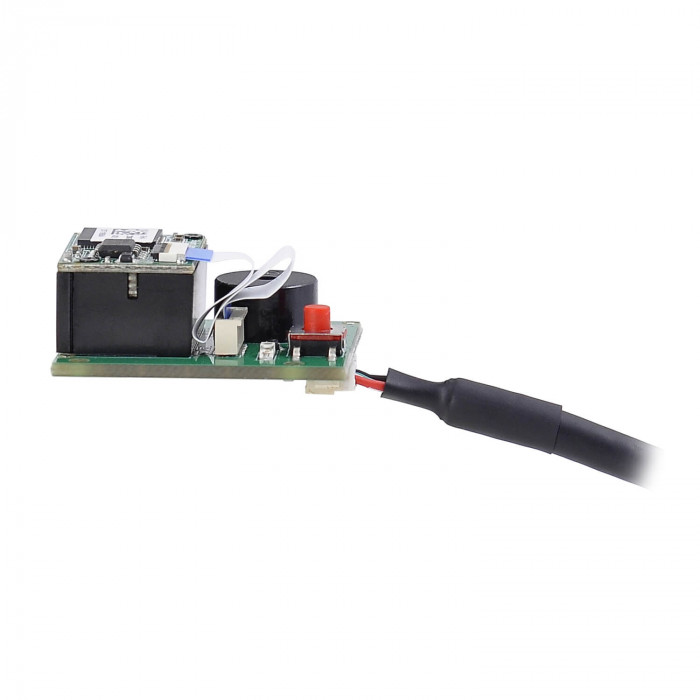

A USB-HID cable is included in the basic package. USB-COM and RS232 interfaces are optionally available. You can select the interface during the checkout process. To order an embedded scanner at a low price from the manufacturer, leave a request on the website.

13 MIL
40-200 mm
5 MIL
30-90 mm
Audible and visual indication during scanning
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes
Barcode sensitivity
Tilt ± 65° / 360° Rotation / Deviation ± 60 °
Equipment
Scanner; USB type A cable (15 cm); Instructions; Warranty card; Packaging
Food
5V/300mA
Gross weight
0.06 kg
Guarantee
3 years old
Minimum barcode contrast
20%
Minimum scan resolution
3,9 MIL
Number of trigger triggers without breakdowns
1 million
Operating temperature
-20°C ~ +50°C
Overall dimensions (WxDxH), mm
30mm*30mm*17mm
Package dimensions (1 pc.)
10x8x10.5 cm
Permissible humidity
0% ~ 95%
Resistance to external influences
IP54
Scanner resolution
640(H)x480(V)Px
Scanner type
Embedded
Scanning coverage angle
40º(h)x32º(v)
Scanning range
Up to 370 mm
Scanning speed
100 scans/sec
Storage temperature
-40°C ~ +70°C
Support is an honest SIGN
Yes
Supported 1D barcodes
UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar,MSI Plessey, GS1 DataBar, China Postal, Korean Postal
Supported 2D barcodes
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin
The backlight
Antireflected, 3500K LED
Type of scanning module
2D image
USAIS support
Yes
Weight
15 grams
