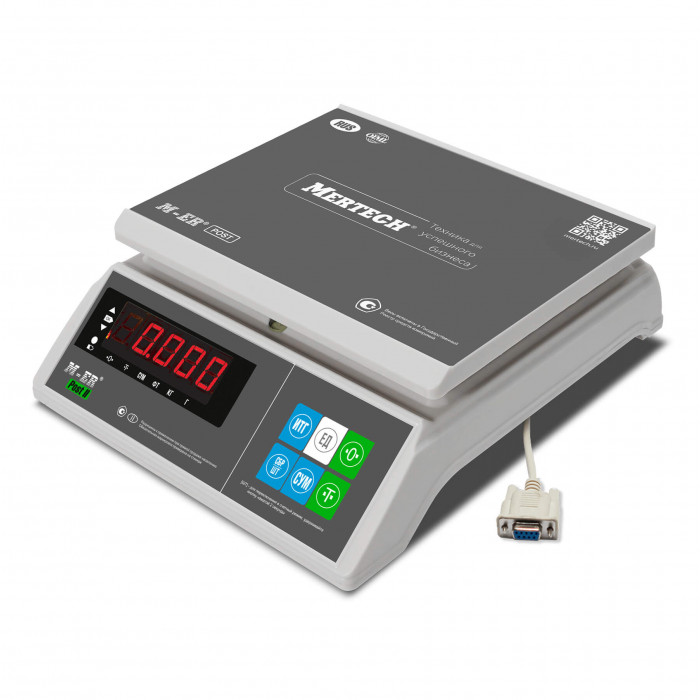

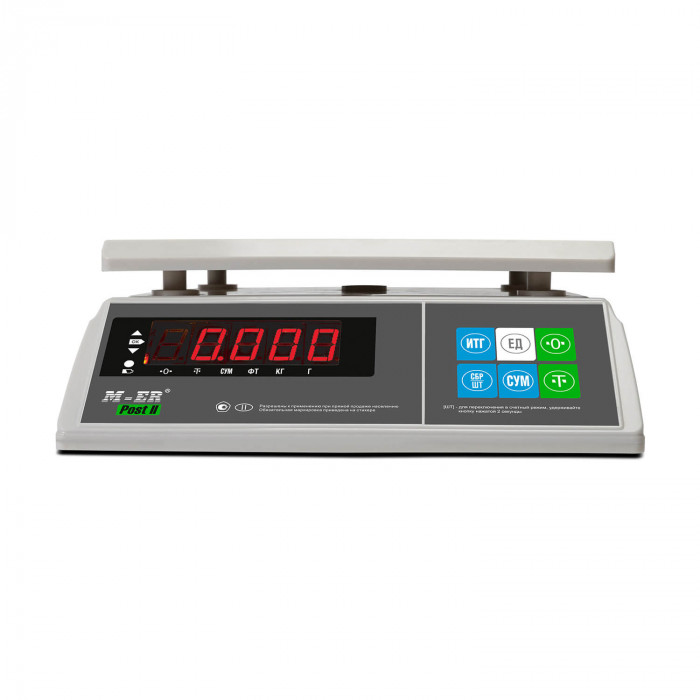

Batch scales M-ER 326 AFU-15.1 Post II LED RS-232

Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Batch scales M-ER 326 AFU-15.1 Post II LED RS-232
Product Code: 3102
Reviews: (0)
In Stock
$79.00
Buy in one click
Specifications: (see all)
Accuracy class
High (II)
Adjustable supports
Yes
Areas of application of scales
For connecting to 1C, For a store, For hardware, For connecting to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food, For catering
Atmospheric pressure
630...800 mmHg (84...106.7 kPa)
Battery
4V-4.5A

This product is currently under redesign. The product's appearance, including color, may differ slightly from those shown in the photo. The discrepancy between the appearance of the real product and the photos on the website is not an indicator of poor product quality.

M-ER 326 AFU-15.1 "Post II" LED RS-232 – packing scales of the II accuracy class according to GOST. They can be used as laboratory equipment. The model has improved metrological characteristics. The stated parameters were confirmed by state verification. A certificate confirming the successful completion of the tests has been obtained.

Design features

Small scales do not take up much space on the table. Case Size: 265*290*110 mm. The size of the weighing platform: 255*205 mm. Product weight: 2.5 kg. The device is easy to carry from place to place. The model is used in laboratories, in production, as packing scales for trade.

The device operates in several modes:

  • Simple weighing;
  • Comparator mode;
  • Summation mode;
  • The result of weighing;
  • Tare weight accounting;

The M-ER 326 AFU-15.1 "Post II" LED RS-232 model has several modifications. They differ in the maximum weighing limit. On this page there are scales with an MPV of 15 kg. The minimum weighing limit is 50 g. The measurement results are displayed on the LED display. The RS-232 interface is used to connect to the POS system.

Operating rules

Packing scales M-ER 326 AFU-15.1 "Post II" LED RS-232 RS232 LED have the following advantages:

  • A simple and intuitive control panel.
  • The case is made of high-strength plastic.
  • Select the unit of measurement: grams, kilograms, pounds.
  • Modifications with 2 additional modes are available: comparator and piece-by-piece weighing.
  • Enlarged numbers on the LED display (9*21 mm or 11*21 mm).
  • Adjustable height of the supports. The platform's stabilization level.

Temperature differences from +10C to +40C do not affect the measurement accuracy. However, the case has no additional protection against dust and humidity. Only a protective dust film is provided. The device is designed to work in indoor, heated rooms.

Place an order

You can buy packing scales M-ER 326 AFU-15.1 "Post II" LED RS-232 RS232 LED at a low price. We sell the equipment without a trade mark-up. Deliveries are made from the manufacturer's warehouse. Orders are sent to any city in Russia. Courier delivery of orders in Moscow is available. To make a purchase, leave a request on the website.

Accuracy class
High (II)
Adjustable supports
Yes
Areas of application of scales
For connecting to 1C, For a store, For hardware, For connecting to a POS computer, For food production, For meat, For confectionery, For bulk materials, For food, For catering
Atmospheric pressure
630...800 mmHg (84...106.7 kPa)
Battery
4V-4.5A
Body material
Plastic
Calibration
External
CAS-M (Active)
Yes
CAS-M (Passive)
Yes
Character size, mm
11x20
Container sampling range
The whole range
Corrosion protection
Galvanization
Discreteness
1 gram
Display Type
LED
Energy-saving mode
Yes
Equipment
Power adapter, length 1.4m, Platform, Dust cover, Warranty card, Instruction manual
Execution
Desktop
Food
5.8V - 0.5A
Guarantee
2 years old
Interfaces
RS232 (DB-9F), length 2.7m
Keyboard Type
Membrane
Label printing
No
Level
Yes
Load cells, pcs
1
Minimum weight
50 g
Number of digits of the display
6
Number of displays
1
Number of keys
6
Operating modes
Simple weighing; Comparator mode; Summation mode; Weighing result; Tare weight accounting; Counting mode; Data transmission mode
Operating temperature
+10...+40
Overall dimensions (WxDxH), mm
265x290x110
Overload protection
No
Permissible humidity
80% at 40 °C without condensation of moisture
Platform Material
Plastic
Platform shape
Rectangular
Platform size
255x205 mm
POS2-M
Yes
Protection from moisture
Dust film
Self-diagnosis mode
Yes
Software compatibility
SetRetail10, Agorta, RED OS, Artix, Aitida, Cashier-5, Shtrik Cashier-5, GBS Market, Dancy Cash Register, Service+, IIKO, Bifit, 1C, R-Keeper, Mercury-ERP, Triar
Type of scales
Packing, Portioned
Units of measurement
G; kg; ft; oz (optional)
Verification
Yes
Visual indication
Yes
Weight
2.5 kg
Weight with platform
2.23 kg
