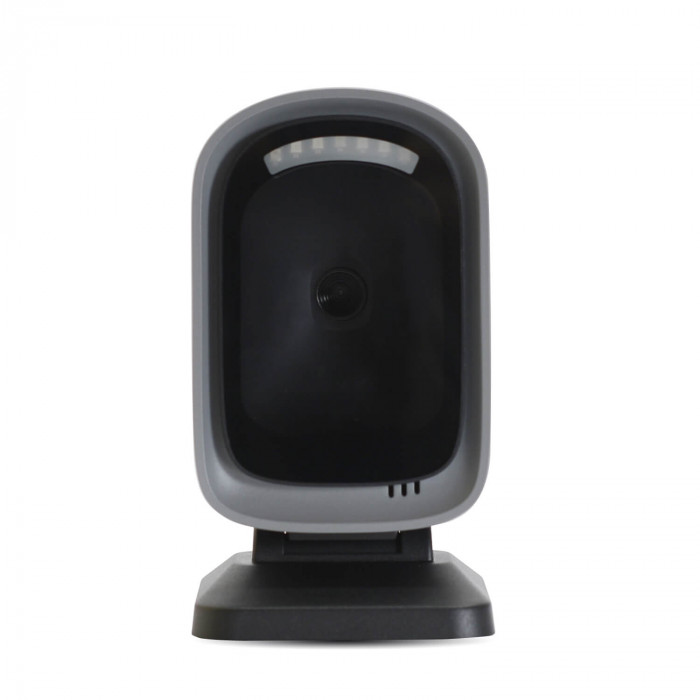

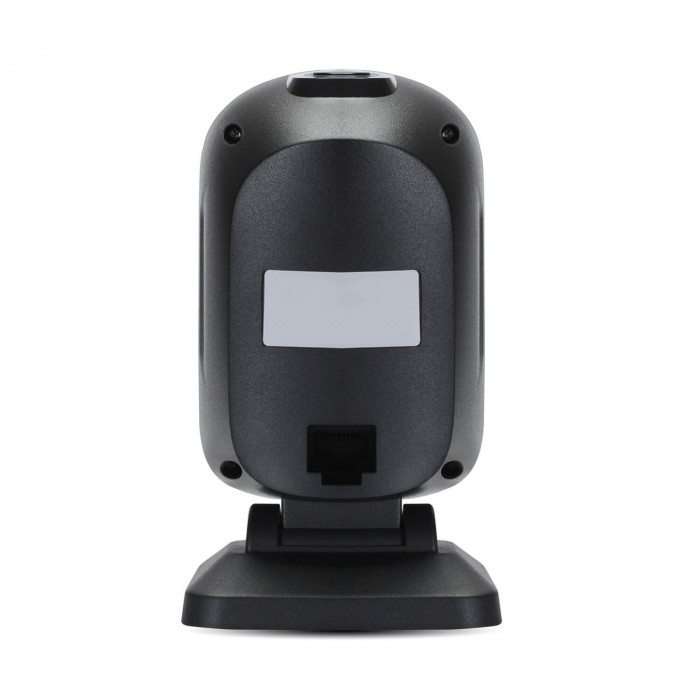

Stationary barcode scanner MERTECH 8500 P2D Mirror Black

Name: Stationary barcode scanner MERTECH 8500 P2D Mirror Black
SKU: 4109
Price: 137 USD
Availability: InStock

Product Code: 4109

Reviews: (0)

In Stock

$137.00

Specifications: (see all)

13 MIL

0-200mm

5 MIL

0-60mm

Admissible humidity

0% ~ 95%

Application areas

For 1C, For alcohol, For marking, For a pharmacy, For perfumes, For EGAIS, For a store, For marking shoes, For cigarettes, For an honest sign, For EVOTOR, Medical

Auto Scan

Yes

2D barcodes.

Recognizes damaged and poorly printed codes.

Reads markings from smartphone screen, mirror surfaces.

A photocell has been installed instead of a laser, which is safe for the cashier's eyes.

Improved backlighting improves scanning speed and accuracy.

Special grooves for a firm hold on the cashier's desk.

The angle of tilt can be adjusted manually.

Recommended by 1C Company and "Honest Sign" system. The device synchronizes with online cash registers Mercury, ATOL, Evotor, Shtrich and other brands. It can be used in retail and wholesale stores, drugstores, gas stations.

To place an order

On our site you can buy the scanner MERTECH 8500 P2D Mirror at a price from the manufacturer. We deliver the technique MERTECH Equipment in any region of your country. Delivery is made through our own dealer network without a surcharge. To make an order, make an order on the site.

Specifications

Barcode Reading

1D, 2D

Scan Angle

50º(h)x35º(v)

Equipment

Box dimensions, mm

160*95*85

Gross weight, g

430

Scan Range

13 MIL

0-200mm

5 MIL

0-60mm

Minimum Scan Resolution

4 MIL

Housing

Overall dimensions (WxDxH), mm

147*83*80

Weight

270 gr

Technical parameters

Barcode Sensitivity

Tilt ± 65° / Swivel 360° / Deviate ± 60°

Connection type

Wired

Minimum barcode contrast

25%

Scan range

up to 210 mm

Scan speed

350 scans/sec

Scanner resolution

640(h)x480(v)Px

Scanner type

Stationary

Scanning element

2D image

Interfaces

Interface

USB HID; USB-COM - emulation; RS232 - optional

Body

Body Material

ABC + PC (plastic + polycarbonate)

Color

Black

Operation parameters

Drop test

Withstands multiple drops from a height of 1.5 m

Storage temperature

-40°C ~ +70°C

Functionality

Auto Scan

Yes

Honest Sign Support

Yes

Recognition of barcodes from complex surfaces

Yes

Sound and visual indication

Yes

Support EGAIS

Yes

Supported 1D Barcodes

UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Post; Korean Postal

Supported 2D Barcodes

PDF417; MicroPDF417; data matrix; Maxicode; QR code; MicroQR; Aztec; Hanxin

Performance parameters

Resistance to external influences

IP54

Warranty

3 years

Operating parameters

Admissible humidity

0% ~ 95%

Operating temperature

0°С ~ +50°С

Options

Packages

Scanner, USB type A cable (205 cm), Manual, Warranty card, Packaging

Scanner Features

Illumination

White 6500 LED

Functional parameters

Application areas

For 1C, For alcohol, For marking, For a pharmacy, For perfumes, For EGAIS, For a store, For marking shoes, For cigarettes, For an honest sign, For EVOTOR, Medical
