Stationary barcode Scanner MERTECH 8500 P2D Mirror Black

Name: Stationary barcode Scanner MERTECH 8500 P2D Mirror Black
SKU: 4109
Price: 104 USD
Availability: InStock

Product Code: 4109

Reviews: (0)

In Stock

$104.00

Specifications: (see all)

13 MIL

0-200 mm

5 MIL

0-60 mm

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical

Audio and visual indication

Yes

Automatic scanning

Yes

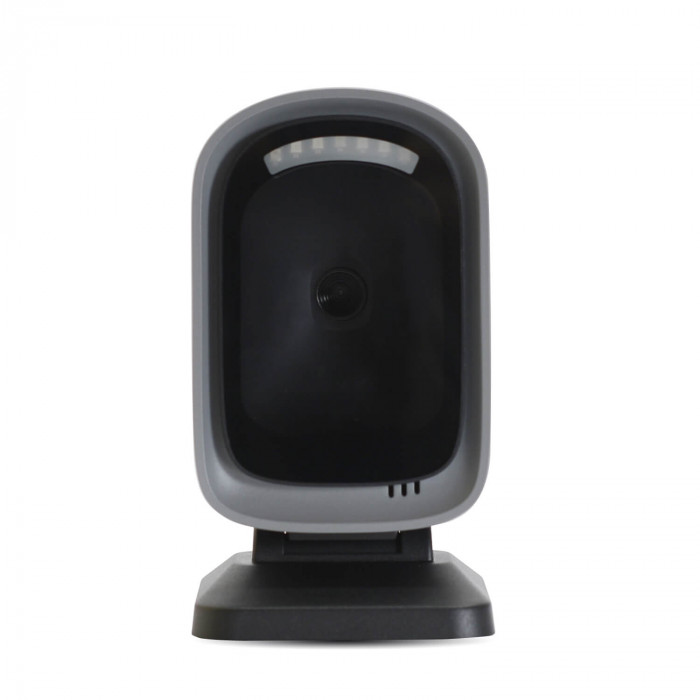

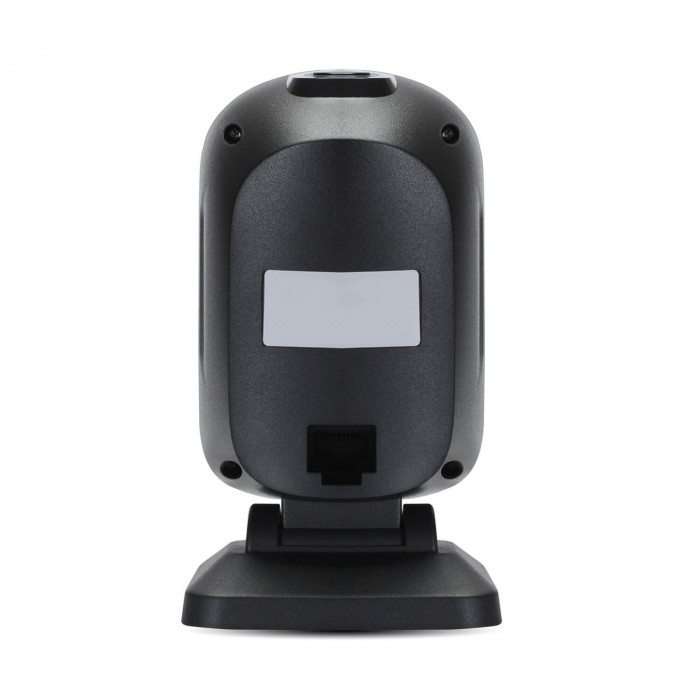

The stationary MERTECH 8500 P2D Mirror scanner recognizes linear and two-dimensional barcodes. SuperLead technology, patented by MERTECH, is used to read the codes. The device performs up to 350 scans per second. The model is characterized by its small size and original design.

Technical specifications

The case is made of primary plastic and polycarbonate (ABC+PC). Material color: Black. Case dimensions: 150*85*80 mm, the weight of the device is 270 grams. Thanks to its reinforced construction, this scanner can withstand impacts and falls from a height of up to 1.5 meters. Degree of protection of the case from dust and moisture: IP 54.

Let's list the characteristics of the model:

Barcode recognition range: 210 mm.
Type of scanning module: 2D Image.
Acceptable code contrast: 25%.
Barcode resolution: up to 4mil.
Scanning angle: 50°(H)x35°(V).
Screen resolution: 640*480 pixels.
Screen illumination: 650 nm LED (red).
Power Consumption: 5V/500mA.

The device operates in manual or automatic mode. A convenient control button is used to switch between the modes. The scanner is connected to a POS system or workstation via a USB-HID interface. Emulation of USB-COM and RS-232 interfaces is available.

Advantages of the model

The MERTECH 8500 P2D Mirror is suitable for use with the USAIS and the Fair Mark trademark. In terms of functionality, it is not inferior to expensive multi-plane scanners. The price of the device is available to a wide range of entrepreneurs.

The main advantages of the model:

Reads all popular 1D and 2D barcodes.
Recognizes corrupted and poorly typed codes.
Reads markings from the smartphone screen, from mirrored surfaces.
Instead of a laser, a photocell is installed, which is safe for the cashier's eyes.
Improved illumination improves scanning speed and accuracy.
Special slots for strong fixation on the cashier's desk.
The angle of the case is adjusted manually.

The model is recommended by 1C and the Honest Sign system. The device is synchronized with online sales registers of Mercury, ATOL, Evotor, Shtrik and other brands. You can use it in retail and wholesale stores, pharmacies, and gas stations.

Place an order

On our website, you can buy the MERTECH 8500 P2D Mirror scanner at the manufacturer's price. We deliver MERTECH equipment to all regions of Russia. Delivery is carried out through our own dealer network, at no extra charge. To place an order, place a request on the website.

13 MIL

0-200 mm

5 MIL

0-60 mm

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, Medical

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Box dimensions, mm

160*95*85

Colour

Black

Connection type

Wired

Drop test

It can withstand multiple falls from a height of 1.5 m.

Equipment

Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging

Gross weight

0.441 kg

Guarantee

3 years old

Interface

USB-HID; USB-COM emulation; RS232 - optional

Masterbox sizes

50x34x45 cm

Masterbox weight, kg

9.703 kg

Minimum barcode contrast

25%

Minimum scan resolution

4 MIL

Operating temperature

0°C ~ +50°C

Overall dimensions (WxDxH), mm

147*83*80

Package dimensions (1 pc.)

16x11x10 cm

Permissible humidity

0% ~ 95%

Quantity in the masterbox, pcs

20 pcs

Resistance to external influences

IP54

Scanner resolution

640(H)x480(V)Px

Scanner type

Stationary

Scanning coverage angle

50º(h)x35º(v)

Scanning range

Up to 210 mm

Scanning speed

350 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal

Supported 2D barcodes

PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin

The backlight

White 6500 LED

Type of scanning module

2D image

USAIS support

Yes

Weight

270 g
