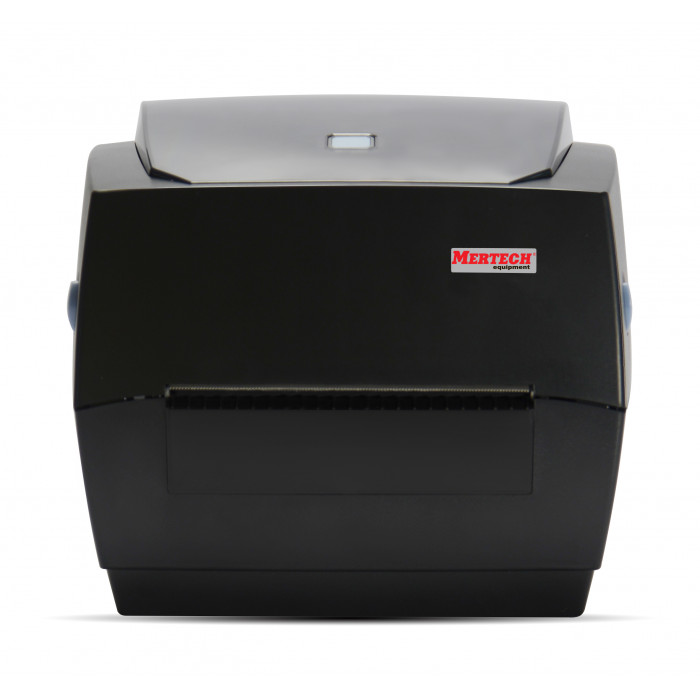

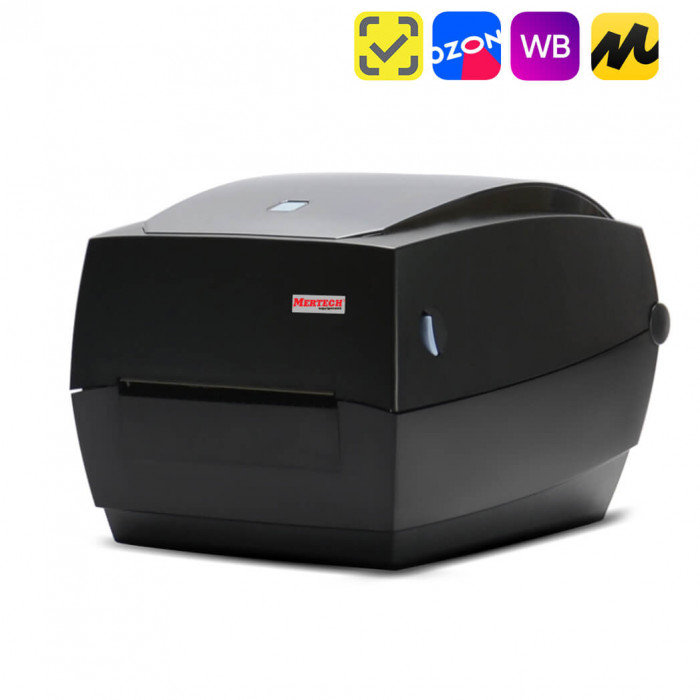

Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black

Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP100 TERRA NOVA USB, RS232, Ethernet Black
Product Code: 4588
Reviews: (0)
In Stock
$225.00
Buy in one click
Specifications: (see all)
Audio and visual indication
yes
Bartender Support
yes
Built-in sensors
Paper Availability, Lid Opening, Label Gap, Printhead Temperature, Black Marks, Tape Termination
Colour
black
Diameter of the roll sleeve
0.5 inches (12.7mm), 1 inch (25.4mm), 1.5 inches (38.1 mm)

The MERTECH TERRA NOVA TLP100 thermal transfer printer is designed for printing receipts and labels. It performs thermal transfer printing and thermal printing. The device prints on synthetic, textile, paper tapes, receipt thermal tape and labels. The model has a practical design, a modern mechanism, and an extended interface board.

Advantages of the model

MERTECH TERRA NOVA TLP100 from MERTECH has the following advantages:

  1. The print speed is 127 mm per second. The resolution is 203 DPI.
  2. Printing of all known barcodes (including PDF417 and QR codes).
  3. Easy Load system for fast loading of ribbon or label tape.
  4. Service life: up to 10,000 labels or receipts per day.

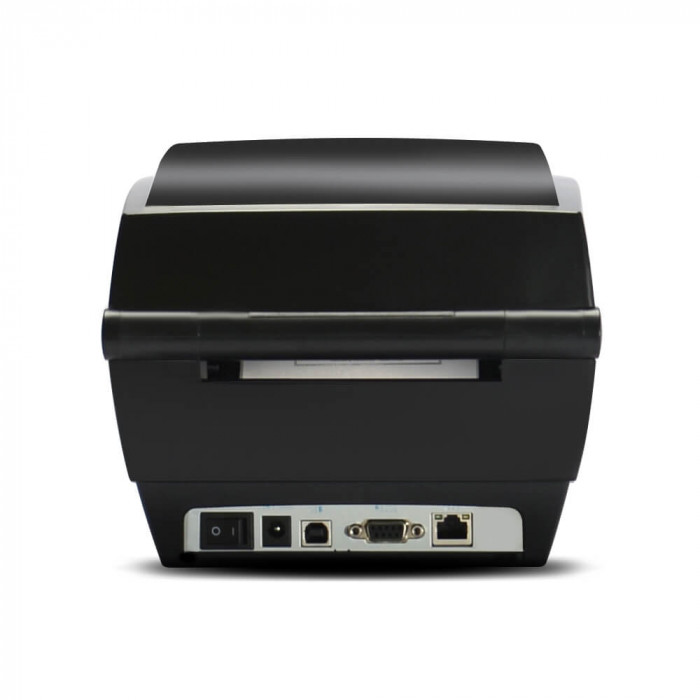

  5. Three interfaces for connection to the POS system: USB, Ethernet, RS-232.
  6. Meets the requirements of FGIS, USAIS and the Honest SIGN system
  7. Low noise level: up to 50 DB (no louder than human speech).

There is an intelligent system board inside the device. It supports two printing protocols. This is the TSPL protocol from TSC. And Zebra's ZPL protocol. The system board is compatible with the BARTENDER printing software. This software is from Seagull Scientific (USA).

Technical specifications

The NOVA TLP100 printer is compact in size. The case length is 240 mm. The width is 198 mm. The height is 171 mm. The device will not take up much space on the desktop. The device is suitable for any line of business. It can be used in shops, pharmacies, markets, warehouses, offices.

The model is equipped with four sensors: a fixed transmitting sensor; an adjustable reflecting sensor; sensors for the end of the tape and the position of the thermal head. In case of errors, sound and light indications are activated.

Acceptable label length: 15-1200 mm. Ribbon length is up to 100 m. This printer can print labels with a gap, hole, black mark or continuous labels. Accepts a ribbon based on wax, resin, or wax + resin. (The type of material affects the quality of transmission of texts and images).

The 1C Enterprise 7.7 and 8.0 software, as well as the BARTENDER program, are suitable for management. The drivers are suitable for Windows computers. The kit includes a power adapter, label tape and ribbon, instructions and warranty card.

Audio and visual indication
yes
Bartender Support
yes
Built-in sensors
Paper Availability, Lid Opening, Label Gap, Printhead Temperature, Black Marks, Tape Termination
Colour
black
Diameter of the roll sleeve
0.5 inches (12.7mm), 1 inch (25.4mm), 1.5 inches (38.1 mm)
Diameter of the sleeve, mm
0.5 inches (12.7 mm)
EasyLoad
yes
Equipment
Printer, USB interface connection cable, Power supply, Warranty Card, Packaging
External holder
Yes (optional)
Flash memory
16 Mb
Food
24 V / 2.5A
Gross weight
2.799 kg
Guarantee
2 years old
Interfaces
USB + RS232, Ethernet
Label Separator
Yes (optional)
Length of network adapter cable (m)
1,5
Length of the printing area, mm
15-1200 mm
Masterbox sizes
50.5x35x44 cm
Masterbox weight, kg
12.178 kg
Maximum ribbon length
100 m
Operating temperature
5 ~ 40°C
OS Support
Windows 7/ 8/ 10, Linux, MacOS
Overall dimensions (WxDxH), mm
198*240*171
Package dimensions (1 pc.)
33x24x20 cm
Paper thickness, mm
0.08 - 0.18 (80 microns - 180 microns)
Paper width, mm
20 - 118
Permissible humidity
90%
Print resolution
203 dpi
Print speed
127 mm/sec
Print type
Thermal transfer
Printer Applications
For 1C, For OZON, For Inventory, For Shoe labeling, For Warehouse, For Labeling, For Marketplace, For Textile Labels, For EVOTOR, For Wildberries
Printer Class
Desktop
Printer Type
Label Printer
Printing material
Paper tapes; textile tapes; synthetic tapes; labels
Printing protocol
TSPL, ZPL and EPL
Processor
NUC976
QR Code Printing
yes
Quantity in the masterbox, pcs
4 pcs
RAM memory
32 Mb
Recommended print volume per day
10,000 labels
Ribbon band width (min/max), mm
33,8 - 110
Ribbon roll winding length
up to 100 m
Ribbon sleeve diameter
0.5 inches (12.7 mm)
Ribbon sleeve length
110 mm
Ribbon type
Wax-based; wax- and resin-based; resin-based
Ribbon winding
OUT
Roll diameter, mm
up to 127
Roll winding length, m
up to 100 m
Software compatibility
GBS.Market, Service+, Triar, Labeling.Simply, Saby, Clever, , Union Label
Storage temperature
-20°C ~ +50°C
Supported 1D barcodes
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
Supported 2D barcodes
PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code
Supported code pages
PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)
Tape rewinding function
Yes
The ability to download fonts
Yes
The cutter
Yes (optional , the cutter life is 1 million)
The Feed function
yes
Thermal head resource
50 km
USAIS support
yes
Weight
2.26 kg
Width of the material (min/max), mm
118
Width of the printing area, mm
20-108
Width of the roll sleeve
110 mm
Width of the tape (min/max), mm
33,8 - 110
