$239.00

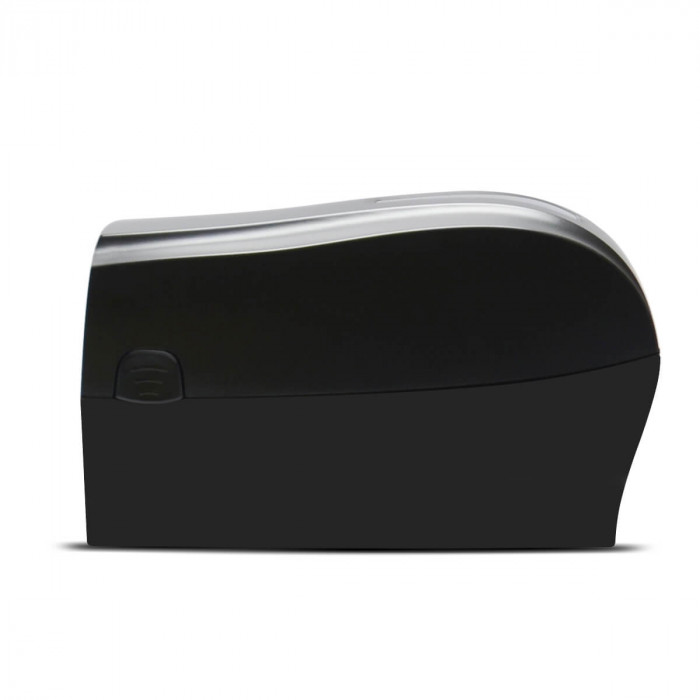

Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black

Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Thermal Transfer Label Printer MERTECH TLP300 TERRA NOVA USB, RS232, Ethernet Black
Product Code: 4592
Reviews: (0)
In Stock
$239.00
Buy in one click
Specifications: (see all)
Audio and visual indication
yes
Bartender Support
yes
Colour
black
Diameter of the roll sleeve
1 inch (25.4 mm), 1.5 inches (38.1mm), 3 inches (76.2mm)
Diameter of the sleeve, mm
25.4 (1 inch)

The MERTECH TERRA NOVA TLP300 printer is designed for thermal printing of labels and receipts. It can print on paper, textile, synthetic tapes, sticky labels, receipt thermal tape and labels. This is a model with a modern mechanism, an improved motherboard, a practical design and compact dimensions. It differs from the TLP100 model by the increased ribbon length (300 m instead of 100 m).

Advantages of the model

The NOVA TLP300 thermal printer from MERTECH has many advantages:

  1. The print speed is 127 mm/sec. The extension can be configured in the range of 203 DPI.
  2. The system board supports printing one-dimensional and two-dimensional barcodes (PDF417 and QR code).
  3. The Easy Load function allows you to change ribbon or cash register in 10 seconds.
  4. There are 3 interfaces available for connection to the POS system: USB, Ethernet, RS-232C.
  5. Functionality: up to 10,000 receipts and labels per shift.
  6. Meets the requirements of the FGIS, USAIS and the Honest SIGN system.
  7. Low noise level: up to 50 decibels (no louder than a voice).

An intelligent system board is installed inside. The device supports two protocols for thermal printing: Zebra's ZPL protocol and TSC's TSPL protocol. The model is compatible with the BARTENDER program. This is an American printing management software. The software was created by Seagull Scientific.

Technical specifications

The NOVA TLP300 stationary printer has small dimensions. The length of the model is 285 mm, width 226 mm, height 171 mm. The printer will not take up much space on the table. The model is suitable for any business area. It is used in sales halls, warehouses and offices, pharmaceutical enterprises.

The device is equipped with 4 sensors:

  1. Fixed transmission.
  2. Adjustable reflective.
  3. Tape termination control.
  4. Thermal head position control.

If the sensor registers an error, a light and sound indication is triggered. The MERTECH TERRA NOVA TLP300 prints labels and receipts 15-1200 mm long and 108 mm wide. The maximum ribbon length is 300 meters.

Different materials are suitable for printing. It can be printed on labels with a gap, a hole with a black mark. Use a ribbon based on resin, wax, or a mixture of materials. But the print quality depends not only on the device, but also on the chosen basis.

Equipment

The kit includes the printer itself, instructions and warranty card, label tape and ribbon. Before starting work, you need to install the drivers from the service site. After installing the drivers, you can connect the device to the POS system, change its settings, and set the appearance of receipts and labels.

Audio and visual indication
yes
Bartender Support
yes
Colour
black
Diameter of the roll sleeve
1 inch (25.4 mm), 1.5 inches (38.1mm), 3 inches (76.2mm)
Diameter of the sleeve, mm
25.4 (1 inch)
EasyLoad
yes
Equipment
Printer, Interface connection cables (RS232 and USB), Power supply, Warranty card, Packaging
External holder
Yes (optional)
Flash memory
16 Mb
Food
24 V / 2.5A
Gross weight
3.8 kg
Guarantee
2 years old
Interface
RS-232; USB; Ethernet
Label Separator
Yes (optional)
Length of the printing area, mm
15 - 1200
Masterbox sizes
75x58x28 cm
Masterbox weight, kg
3.875 kg
Maximum ribbon length
300 m
Operating temperature
5 ~ 40°C
OS Support
Windows 7/ 8/ 10, Linux, MacOS
Overall dimensions (WxDxH), mm
285*226*171
Package dimensions (1 pc.)
36x28x24 cm
Paper thickness, mm
0.08 - 0.18 (80 microns - 180 microns)
Paper width, mm
25.4 -108 mm
Permissible humidity
90%
Print resolution
203 dpi
Print speed
127 mm/sec
Print type
Thermal transfer
Printer Applications
For 1C, For OZON, For Inventory, For Shoe labeling, For Warehouse, For Labeling, For Marketplace, For Textile Labels, For EVOTOR, For Wildberries
Printer Class
Desktop
Printer Type
Label Printer
Printing material
Paper tapes; textile tapes; synthetic tapes; labels
Printing protocol
TSPL, ZPL and EPL
Processor
NUC976
QR Code Printing
yes
Quantity in the masterbox, pcs
4 pcs
RAM memory
32 Mb
Recommended print volume per day
up to 10,000 58x40 labels
Ribbon band width (min/max), mm
33,8 / 110
Ribbon roll winding length
300 m
Ribbon sleeve diameter
25.4 mm (1 inch)
Ribbon type
Wax-based; wax- and resin-based; resin-based
Ribbon winding
OUT
Roll diameter, mm
up to 127 mm
Software compatibility
GBS.Market, Service+, Triar, Labeling.Just, Saby, FIT,
Storage temperature
-20°C ~ +50°C
Supported 1D barcodes
Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
Supported 2D barcodes
PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code
Supported code pages
PC437, 720, 737, 755, 775, 850, 852, 855, 856, 857, 858, 860, 862, 863, 864, 865, 866; Windows1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257, 1258; ISO8859-1, 2, 3, 4, 5, 6, 8, 9, 15; DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)
Tape rewinding function
Yes
The ability to download fonts
Yes
The cutter
Yes (optional , the cutter life is 1 million)
The Feed function
yes
Thermal head resource
50 km
USAIS support
yes
Weight
2.45 kg
Width of the material (min/max), mm
118
Width of the printing area, mm
25,4 - 108
Width of the roll sleeve
110 mm
Width of the tape (min/max), mm
33,8 / 110
