Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB

Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Trading table scales M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB
Product Code: 3159
Reviews: (0)
In Stock
$82.00
Buy in one click
Specifications: (see all)
Accuracy class
Medium (III)
Admissible humidity
80%
Application areas of scales
For connection to 1C, For shop, For hardware, For EVOTOR, For connection to POS-computer, For food production, For meat, For confectionery, Construction, For loose materials, For food
Atmospheric pressure
630...800 mm Hg Art.
Battery
4.5A*4.5V

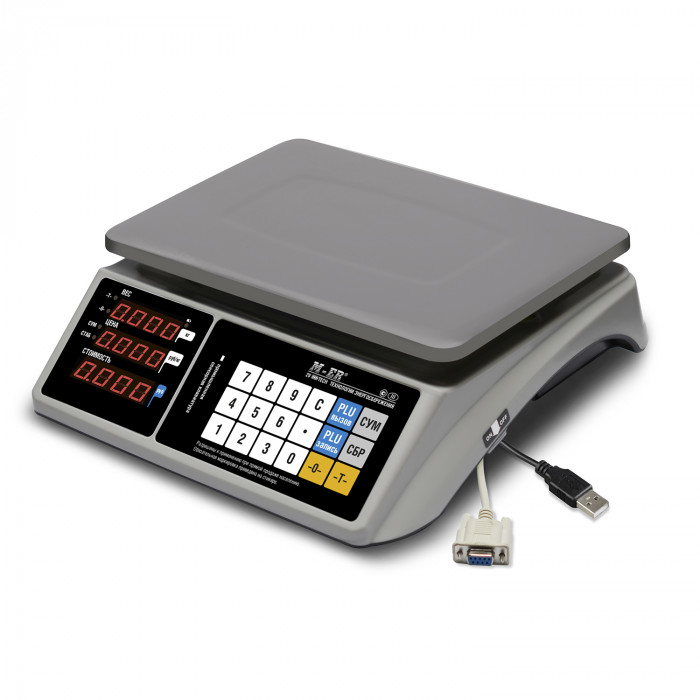

M-ER 328 AC-15.2 "TOUCH-M" LED RS232 and USB are desktop—type trading scales. They are used for weighing and packing goods, calculating the price of the lot and the amount of delivery. The measurement results are displayed on 2 LED screens (for buyer and seller). The device can be connected to the database via USB or RS232 channel. Case color: White

Construction Description

The main characteristics of the model are encrypted in its name. The letter A means that the device is powered by a built-in battery. The letter C indicates the presence of the counting mode in the control menu.

The body of the scale is made of durable materials. Body dimensions: 350*345*120 mm. The size of the weighing platform: 325*230 mm. An industrial touch keyboard for data entry is installed.

Available modes:

  • The usual weighing.
  • Summation of values.
  • Counting (piece) mode.
  • Programmed prices.
  • Deduction of the tare mass.
  • Calculating the change.

Electronic scales have 2 modifications with different ranges. On this page there are scales with a weighing range from 40 g to 15 kg and a discreteness of 2 g.

Advantages of this model

The model is included in the State Register of Measuring Instruments. A certificate confirming the declared characteristics has been received. Each device undergoes factory verification.

Advantages of the model:

  • Enhanced protection of the case from deformation.
  • Double galvanization of metal elements.
  • Polyfilm to protect the case from moisture and dust.
  • There are 10 memory cells available for recording prices.
  • The load cell operates stably at temperatures from +5C to +40C.
  • Protection against 5-fold overload of the weighing platform.
  • The battery lasts from one charge up to 90 days.
  • You can charge the battery from a 220 V outlet.

buy electronic scales on the MERTECH Equipment website. We offer weighing equipment at low prices. Delivery is carried out in Moscow or other regions. To place an order, call us or leave a request on the website.

Housing
Corrosion Protection
Galvanization
Keyboard Type
Industrial sensor
Levelling feet
Yes
Overall dimensions (WxDxH), mm
350*345*120
Weight
2.7 kg
Technical parameters
Accuracy class
Medium (III)
Discreteness
2 gr
Execution
Desktop
Load cells, pcs
1
Maximum weighing limit
15 kg
Minimum weight
40 gr
Platform size
325*230mm
Verification
Yes
Weighing type
Trading
Interfaces
Interfaces
RS-232; USB
Body
Body Material
Plastic
Color
White
Platform Material
Stainless steel
Operation parameters
Atmospheric pressure
630...800 mm Hg Art.
Battery
4.5A*4.5V
Power
5.6V
Verification
Yes
Functionality
Calibration
Yes
Change Stabilization Speed
Yes
Energy Saving Mode
Yes
Level
Yes
Operating modes
Simple weighing; summation mode; Work with programmed prices; Change calculation; Counting mode; Accounting for tare weight
Print Labels
No
Programmable Memory
10 price memories
Self-diagnostic mode
Yes
Sound and visual indication
Yes
Tare selection range
Whole Range
Units
Kg
Performance parameters
Warranty
2 years
Operating parameters
Admissible humidity
80%
Operating temperature
+5…+40
Display
Display type
LED
Number of digits of indication
16
Number of Displays
2
Symbol size, mm
15*9
Case
Moisture protection
Dustproof cover
Chassis
Overload Protection
Sound and visual notification
Rack
No
Functional parameters
Application areas of scales
For connection to 1C, For shop, For hardware, For EVOTOR, For connection to POS-computer, For food production, For meat, For confectionery, Construction, For loose materials, For food
