Weighing table scales M-ER 224 AF-15.2 STEEL LCD USB

Name: Weighing table scales M-ER 224 AF-15.2 STEEL LCD USB
SKU: 3767
Price: 135 USD
Availability: InStock

Product Code: 3767

Reviews: (0)

In Stock

$135.00

Specifications: (see all)

Accuracy class

Medium (III)

Admissible humidity

up to 85% at 40°C, non-condensing

Atmospheric pressure

630...800 mm Hg

Battery

Optional

Body Material

Metal; plastic

The M-ER 224 AF-15.2 STEEL LCD USB bench scale is designed for packing goods in a warehouse or store. The maximum weighing limit is 15 kg. The size of the weighing platform is standard. The design has LCD display. The device can operate from a battery. The USB cable is used to connect it to the cash register and to charge the battery.

Model advantages

Scales belong to III accuracy class according to State Standard. The model is suitable for all products and nonfood items. Each device is factory verified, which is confirmed by a certificate.

The advantages of weighing equipment:

measurements in kilograms or pounds;
CAS-M (Passive) and POS2-M protocols;
Advanced load cell for 7000 divisions;
Short-term overload resistance;
Double galvanization of steel parts.

The menu provides 2 modes: simple weighing and weight fixation. The process of weighing is accompanied by sound and light indication. The minimum step is 2 grams. The device has a self-diagnostic mode.

Features of design

M-ER 224 AF-15.2 STEEL is a classic bench scale with a platform. The body is made of metal with plastic. The platform is 325*275 mm all-metal. The rugged case protects electronic components from shocks, water and dust. The metal panels are reliably protected against corrosion.

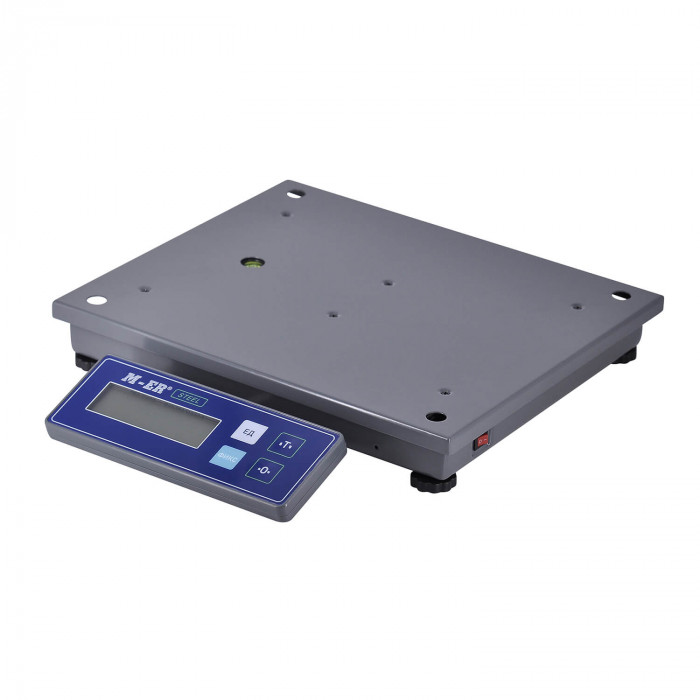

A simple keyboard with 4 buttons is used for control. The control panel is hermetically sealed. LCD screen shows the results of weighing. The display has 5 digits of indication with character height of 8*21 mm.

The device has a power-consuming battery. The device consumes the battery charge extremely slowly. A USB(COM) cable to recharge the battery is included.

Order the electronic scales at a low price on the official website of MERTECH. The delivery of the equipment is carried out all over your country.

Housing

Keyboard Type

Push-button

Overall dimensions (WxDxH), mm

325*350*46

Weight

4.75 kg

Technical parameters

Accuracy class

Medium (III)

Discreteness

2 gr

Execution

Desktop

Load cells, pcs

Maximum weighing limit

15 kg

Minimum weight

40 gr

Number of keys

Platform size

325*275

Possibility of height adjustment, mm

Desktop

Verification

Yes

Weighing type

Weighing

Interfaces

USB

Body

Body Material

Metal; plastic

Color

Black

Platform Material

Stainless steel

Operation parameters

Atmospheric pressure

630...800 mm Hg

Battery

Optional

Power

from USB 5V, 0.5A

Functionality

Level

Yes

Operating modes

Weighing mode; Weight fixation mode; Sound and visual indication; Self-diagnosis mode

Tare selection range

Whole Range

Units

Kg, Pound

Operating parameters

Admissible humidity

up to 85% at 40°C, non-condensing

Operating temperature

+5°C ~ +40°C

Options

Packages

Scales; Warranty card; Manual; USB(COM) cable

Display

Display type

LCD

Number of digits of indication

Number of Displays

Symbol size, mm

8*21

Case

Moisture protection

Control panel sealing

Chassis

Overload Protection

Sound and visual notification

Data transfer protocols

СAS-M (Passive)

Yes

Communication protocols

POS2-M

Yes
