Packing table scales M-ER 224 AF-15.2 STEEL LCD USB

Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Packing table scales M-ER 224 AF-15.2 STEEL LCD USB
Product Code: 3767
Reviews: (0)
In Stock
$132.00
Buy in one click
Specifications: (see all)
Accuracy class
Average (III)
Atmospheric pressure
630...800 mmHg
Battery
Optional
Body material
Metal; plastic
CAS-M (Passive)
Yes

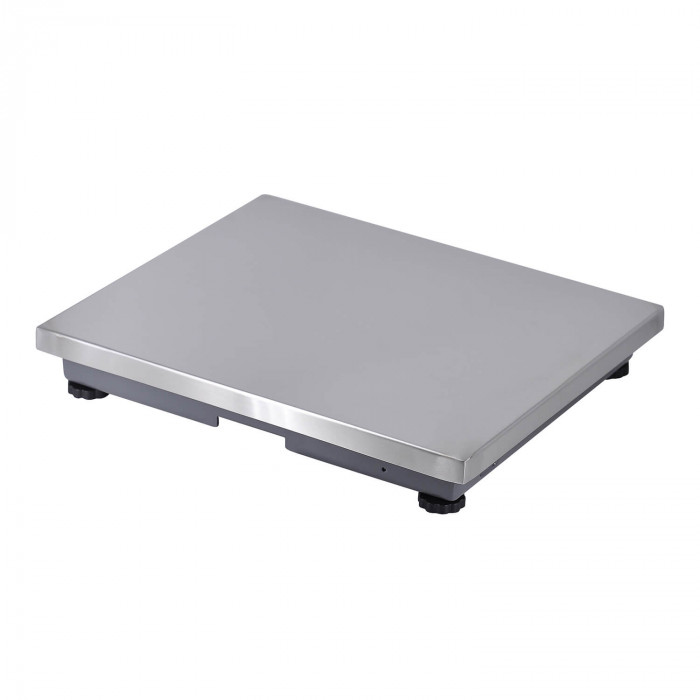

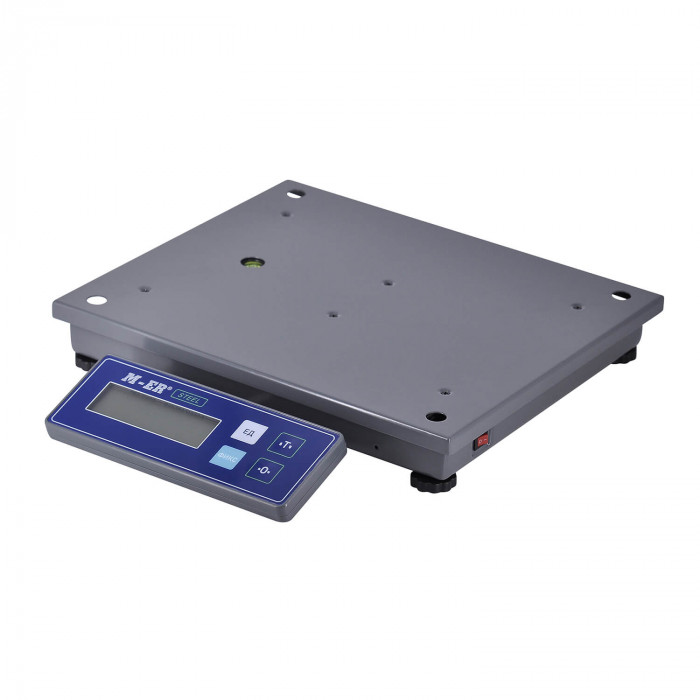

The M-ER 224 AF-15.2 STEEL LCD USB table scales are designed for packing goods in a warehouse or in a store. The maximum weighing limit is 15 kg. The size of the weighing platform is standard. The design is equipped with an LCD display. The device can be powered by a battery. A USB cable is used to connect to the cash register and recharge the battery.

Advantages of the model

Weighing equipment belongs to the III accuracy class according to GOST. The model is suitable for all products and non-food items. Each device undergoes factory verification, which confirms the certificate.

Advantages of weighing equipment:

  • measurements in kilograms or pounds;
  • CAS-M (Passive) and POS2-M protocols;
  • improved strain gauge for 7,500 divisions;
  • resistance to short-term overload;
  • double galvanization of steel parts.

There are 2 modes in the menu: simple weighing and weight fixing. The weighing process is accompanied by a sound and light indication. The minimum step is 2 grams. The device has a self-diagnosis mode.

Design features

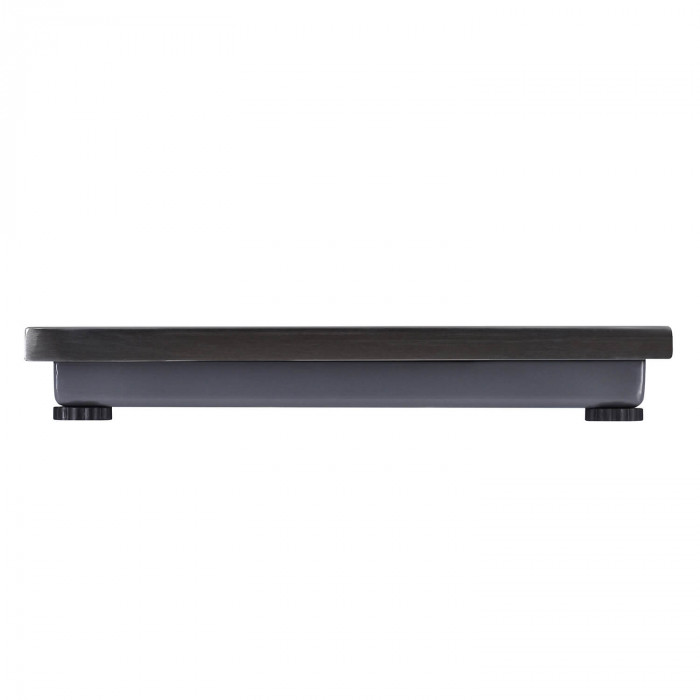

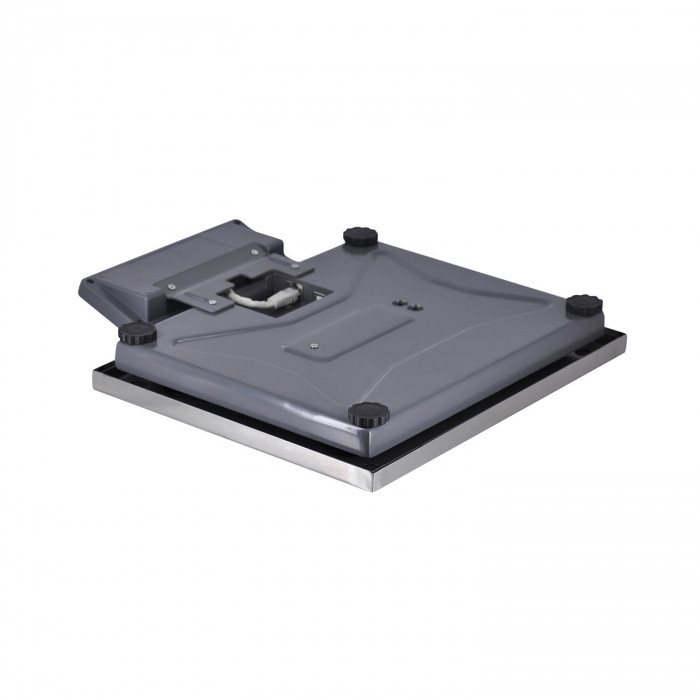

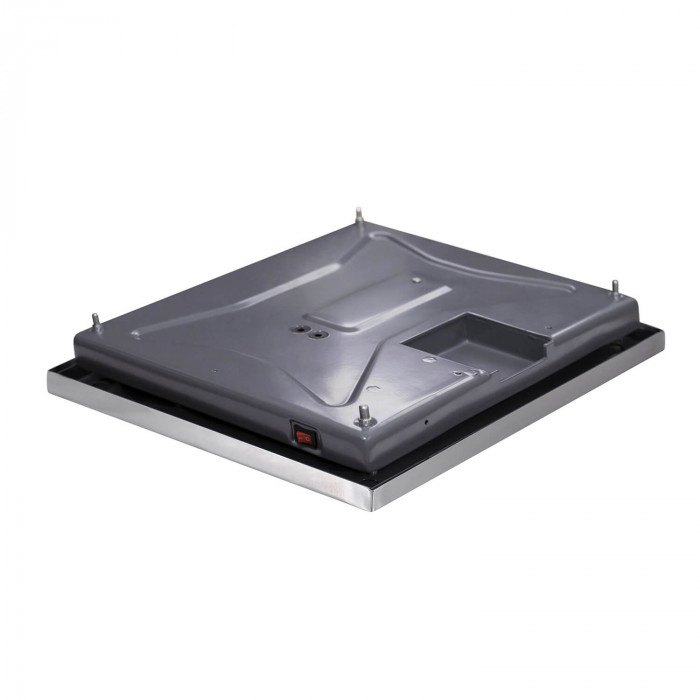

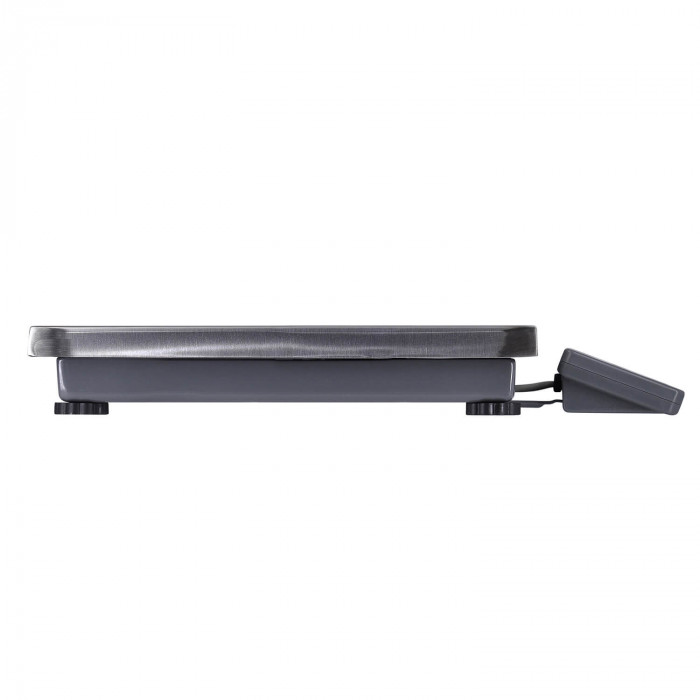

The M-ER 224 AF-15.2 STEEL is a classic table scale with a platform. The case is made of metal and plastic. The 325*275 mm platform is completely metal. The robust housing protects electronic components from shocks, water and dust. Metal panels are reliably protected from corrosion.

A simple keyboard with 4 buttons is used for control. The control panel is sealed. The LCD screen shows the weighing results. The display has 5 digits of indication with a character height of 8*21 mm.

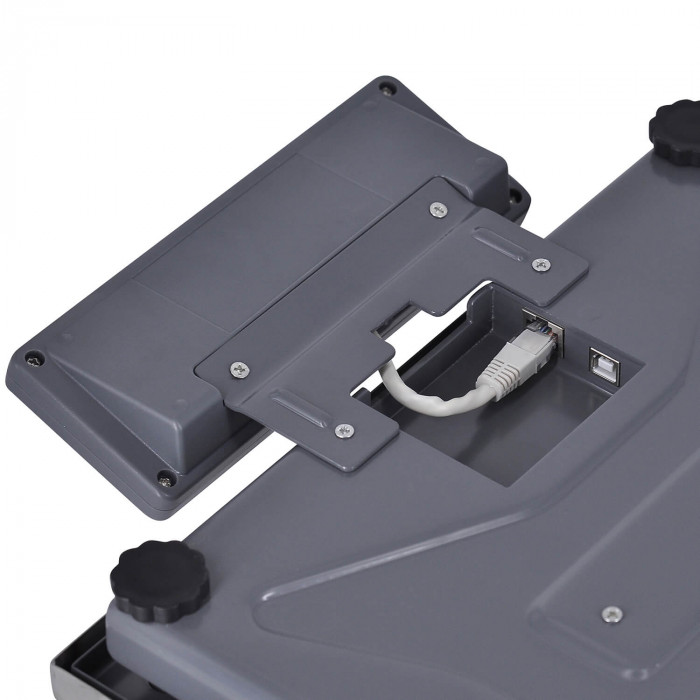

The device has an energy-intensive battery. The device consumes battery power extremely slowly. A USB(COM) cable for charging the battery is included.

You can order electronic scales at a low price on the official MERTECH website. The equipment is delivered across Russia.

Accuracy class
Average (III)
Atmospheric pressure
630...800 mmHg
Battery
Optional
Body material
Metal; plastic
CAS-M (Passive)
Yes
Character size, mm
8*21
Colour
Black
Container sampling range
The whole range
Discreteness
2 grams
Display Type
LCD
Equipment
Scales, Warranty card, User Manual, USB(COM) Type A - Type B cable, length 1.8 m
Execution
Desktop
Food
from USB 5V, 0.5A
Gross weight
5,333 kg

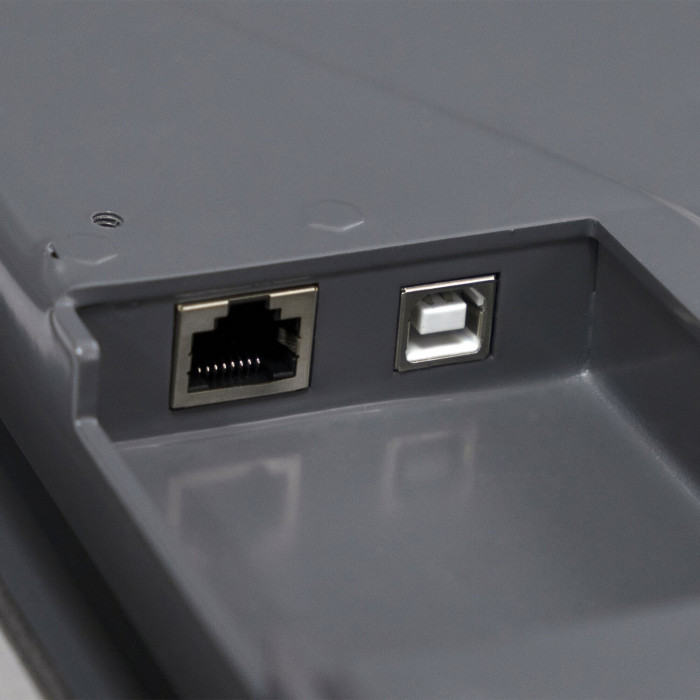

Interfaces
USB(type-b)
Keyboard Type
Push button
Level
Yes
Load cells, pcs
1
Masterbox sizes
43.5x39x34.8 cm
Masterbox weight, kg
22.2 kg
Minimum weight
40 g
Number of digits of the display
5
Number of displays
1
Number of keys
4
Operating modes
Weighing mode; Weight fixation mode; Audio and visual indication; Self-diagnosis mode
Operating temperature
+5°C ~ +40°C
Overall dimensions (WxDxH), mm
325*350*46
Overload protection
Audio and visual alerts
Package dimensions (1 pc.)
42x37.8x8 cm
Permissible humidity
up to 85% at 40 °C, without condensation of moisture
Platform Material
Metal
Platform size
325*275
POS2-M
Yes
Protection from moisture
Sealing the control panel
Quantity in the masterbox, pcs
4 pcs
Software compatibility
SetRetail10, Artix, Aitida, Cashier-5, Barcode Cashier-5, GBS Market, Dancy Cash Register, Service+, IIKO, Bifit, 1C, R-Keeper, Mercury-ERP, Triar, Contour Market
The possibility of height adjustment, mm
Desktop
Type of scales
Packing rooms
Units of measurement
Kg, Lb
Verification
Yes
Weighing limit
15 kg
Weight
4.75 kg
