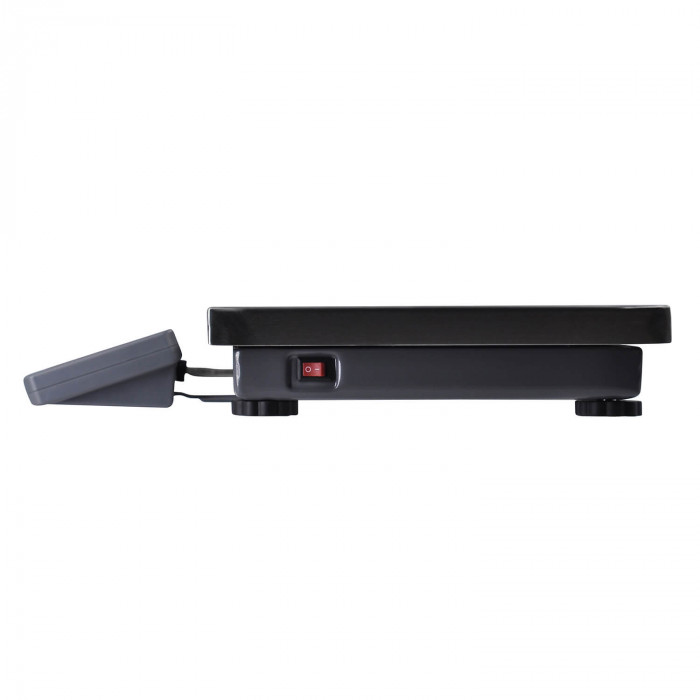

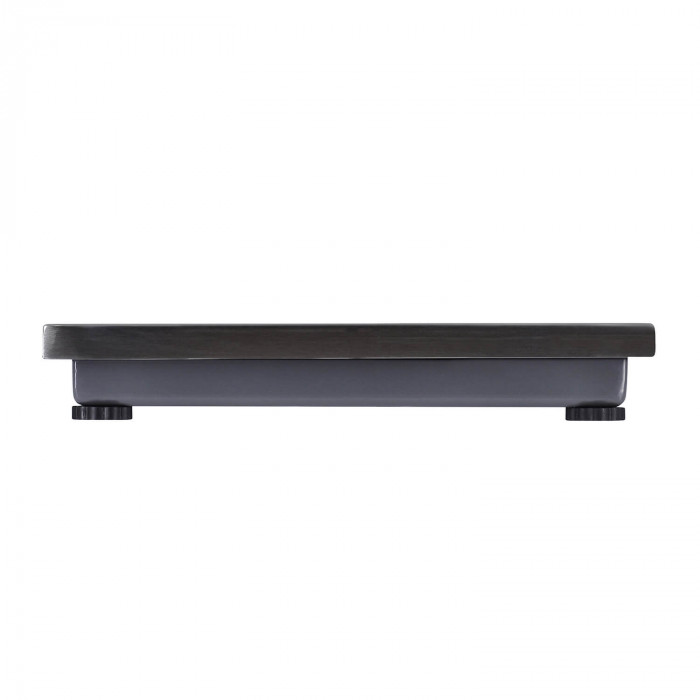

Packing table scales M-ER 224 AFU-15.2 STEEL LCD USB

Name: Packing table scales M-ER 224 AFU-15.2 STEEL LCD USB
SKU: 3769
Price: 123 USD
Availability: InStock

Product Code: 3769

Reviews: (0)

In Stock

$123.00

Specifications: (see all)

Accuracy class

Average (III)

Atmospheric pressure

630...800 mmHg

Battery

Optional

Body material

Metal; plastic

CAS-M (Passive)

Yes

The M-ER 224 AFU-15.2 STEEL LCD USB table scale with a reduced platform of 300*200 mm is suitable for rooms where space for installation of equipment is limited. You can use this model for pre-sale packaging of goods or as a control scale. The device is powered by a battery. A USB cable is used to recharge the battery.

Advantages of the model

The equipment is suitable for weighing goods in the warehouse, at the factory and in the sales area of the store. The device belongs to the III accuracy class according to GOST. The maximum value for measurement is 15 kg. The step between adjacent scale values is 2 grams. Compliance with the stated characteristics is confirmed by a verification certificate.

Advantages of the model:

weighing in kilograms or pounds;
POS2-M and CAS-M (Passive) protocols;
A 7,000-division sensitive load cell;
protection against short-term overloads;
double galvanization of steel panels.

The device can operate in the mode of normal weighing or weight fixation, as well as perform self-diagnosis. The visual and light indication system simplifies the operator's work.

Design features

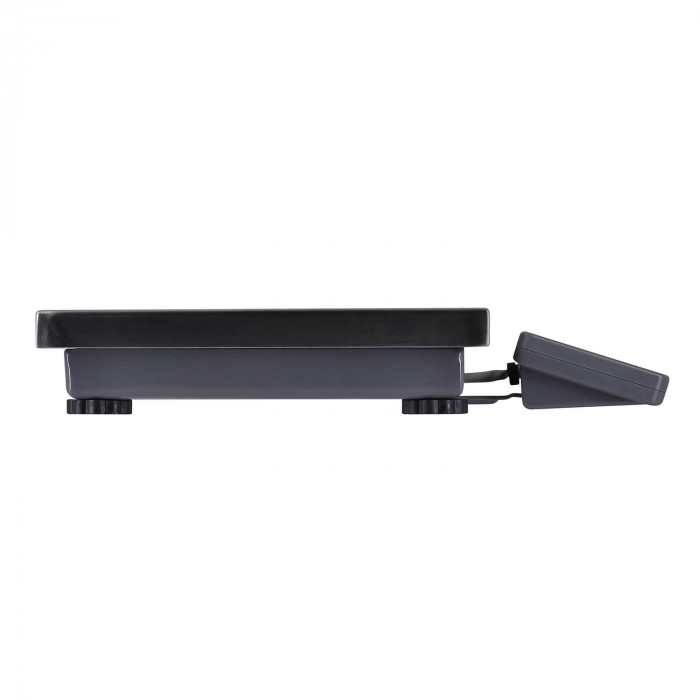

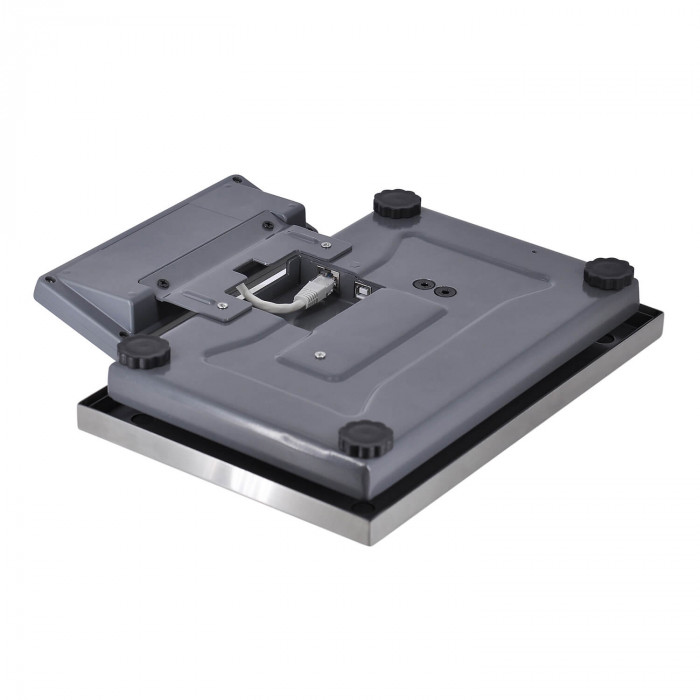

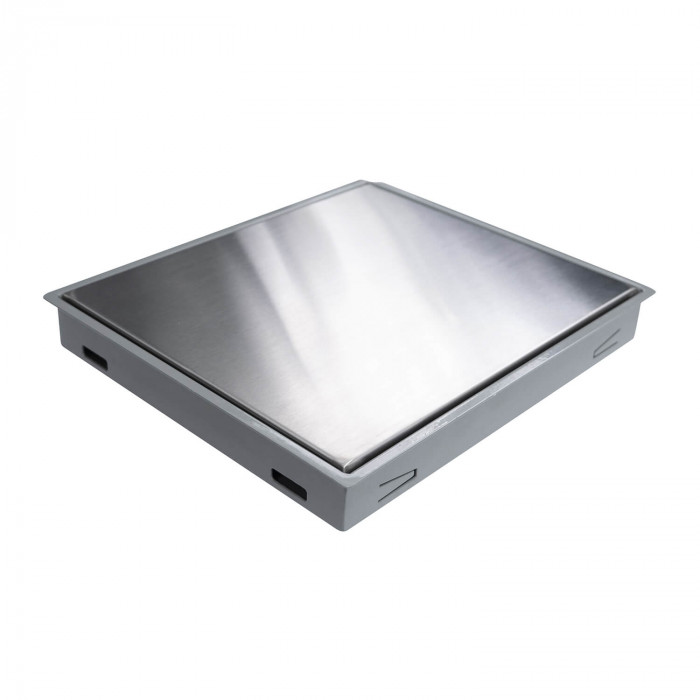

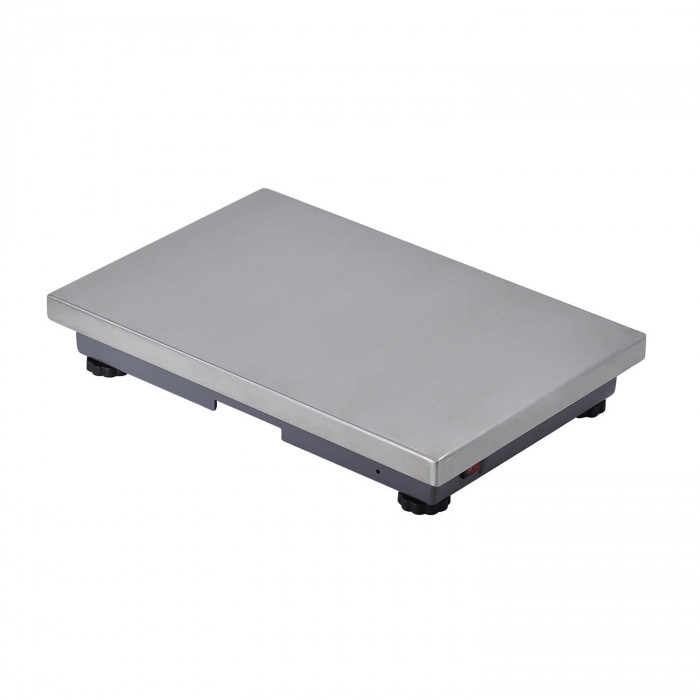

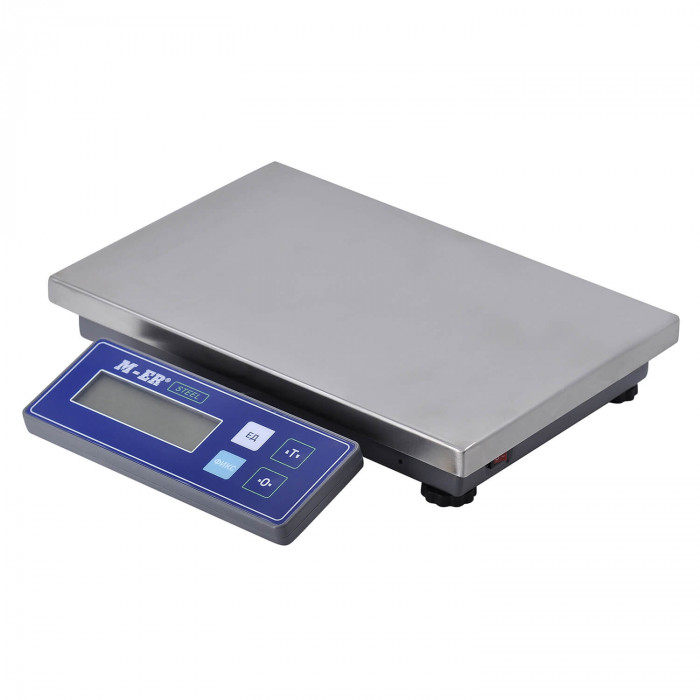

The M-ER 224 AFU-15.2 STEEL model has a rectangular housing with an LCD screen without a stand. The construction is based on a strong and stable steel frame. The body is made of metal and plastic, and the weighing platform is made of stainless steel. The structure is reliably protected from external factors.

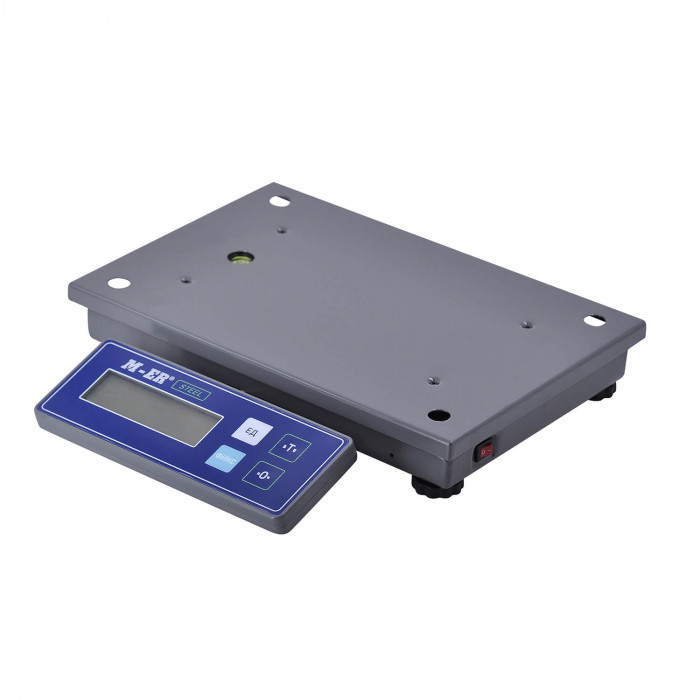

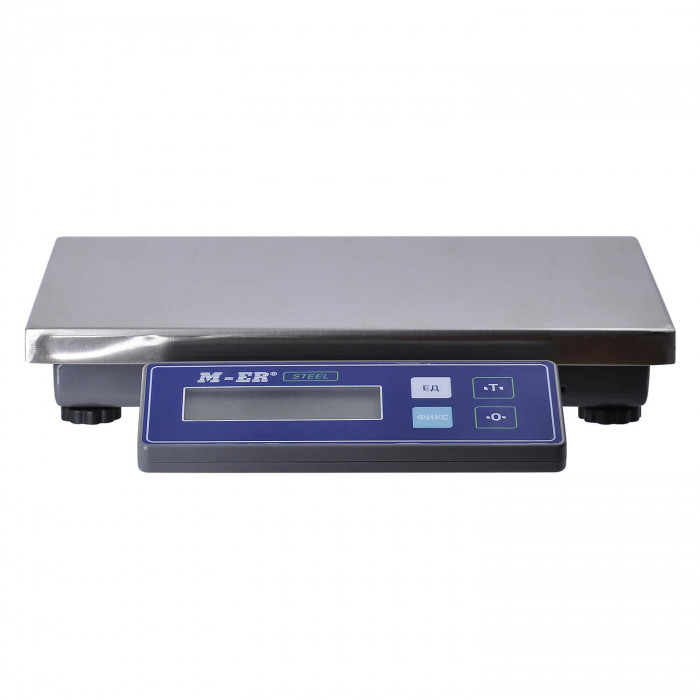

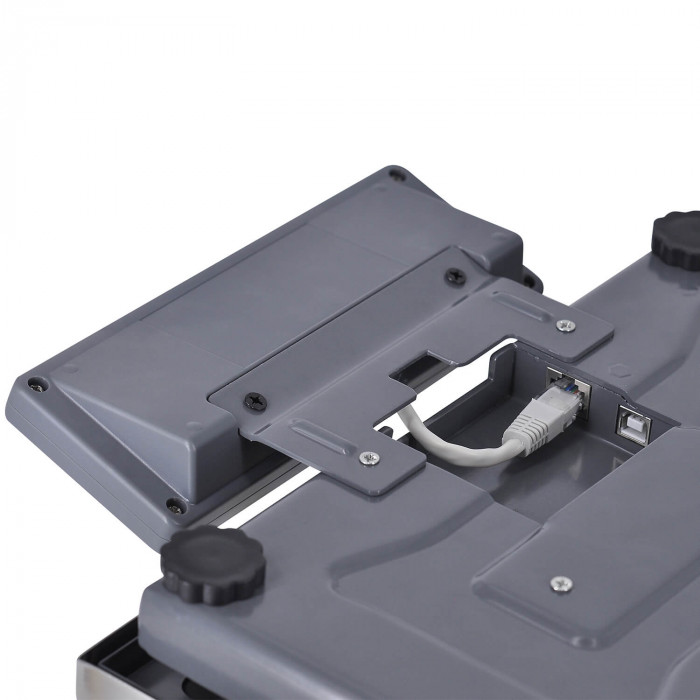

The control panel is completely sealed. 4 buttons are used for control. It doesn't take much time to learn the workflow. The results are displayed on an LCD screen with 5 digits of 8*21 mm display. The device is powered by an energy-intensive battery. A full battery charge lasts for a long time. A USB (COM) cable is included.

You can purchase electronic scales at the lowest price on the MERTECH website. Orders are delivered throughout Russia.

Accuracy class

Average (III)

Atmospheric pressure

630...800 mmHg

Battery

Optional

Body material

Metal; plastic

CAS-M (Passive)

Yes

Character size, mm

8*21

Colour

Black

Container sampling range

The whole range

Discreteness

2 grams

Display Type

LCD

Equipment

Scales, Warranty card, User Manual, USB(COM) Type A - Type B cable, length 1.8 m

Execution

Desktop

Food

from USB 5V, 0.5A

Gross weight

3.74 kg

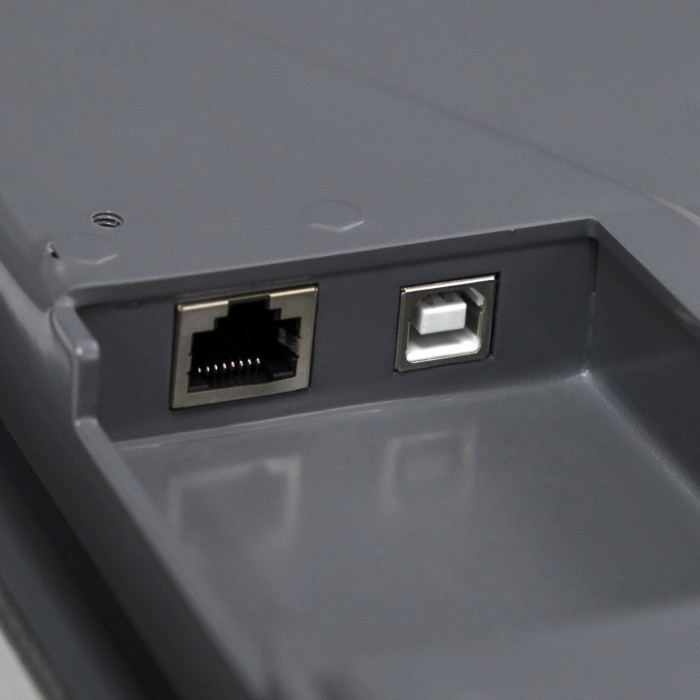

Interfaces

USB(type-b)

Keyboard Type

Push button

Level

Yes

Load cells, pcs

Masterbox sizes

43.5x39x34.8 cm

Masterbox weight, kg

15 kg

Minimum weight

40 g

Number of digits of the display

Number of displays

Number of keys

Operating modes

Weighing mode; Weight fixation mode; Audio and visual indication; Self-diagnosis mode

Operating temperature

+5°C ~ +40°C

Overall dimensions (WxDxH), mm

300*280*46

Overload protection

Audio and visual alerts

Package dimensions (1 pc.)

42x38x8 cm

Permissible humidity

up to 85% at 40 °C, without condensation of moisture

Platform Material

Metal

Platform size

300*200

POS2-M

Yes

Protection from moisture

Sealing the control panel

Quantity in the masterbox, pcs

4 pcs

Software compatibility

SetRetail10, Artix, Aitida, Cashier-5, Barcode Cashier-5, GBS Market, Dancy Cash Register, Service+, IIKO, Bifit, 1C, R-Keeper, Mercury-ERP, Triar, Contour Market

Type of scales

Packing rooms

Units of measurement

Kg, Lb

Verification

Yes

Weighing limit

15 kg

Weight

3.15 kg
