MERTECH 2310 P2D HR SUPERLEAD USB White Wired Barcode Scanner

Name: MERTECH 2310 P2D HR SUPERLEAD USB White Wired Barcode Scanner
SKU: 4831
Price: 74 USD
Availability: InStock

Product Code: 4831

Reviews: (0)

In Stock

$74.00

Specifications: (see all)

13 MIL

40-200 mm

5 MIL

30-90 mm

Analogues of manufacturers

Datalogic, Zebra, Mindeo, Sunlux, Newland

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ, Medical

Audio and visual indication

Yes

The MERTECH 2310 is a handheld scanner with a wired connection. The device is equipped with a 2D Image scanning module with a resolution of 1.38 Mp (1280*1080). It easily recognizes all known 2D and 1D barcodes. Data is read using SUPERLEAD technology.

Technical specifications

The reader is made of impact-resistant plastic and polycarbonate. Case colors: white and gray. Dimensions of the device: 170x95x70 mm. Device weight: 125 grams. The electronics are protected from falls from 2 meters. Dust and moisture protection level: IP 54.

Operating characteristics of the MERTECH 2310 model:

Scanning range: up to 370mm
Data recognition rate: 100 scans/sec.
A scanning module with a resolution of 1280*1080 pixels.
Coverage angle: 42°(H)x32 °(V).
Trigger resource: 5 00 00 triggers.
Sensitivity: 65° tilt, 360° rotation, 60° deviation.
Minimum scan resolution: 3.9 MIL.

Connection to the online sales register, POS terminal and PC is carried out only via cable. The standard interface for connection is USB-HID. USB-COM connection or RS-232 emulation is available on request. The scanner is easily connected to the online sales registers of Atol Sigma, Evotor, Shtrik-M, Mercury, and other popular brands.

Advantages of the model

The MERTECH 2310 barcode scanner is designed to work with labeled goods. This model is designed to work in the Honest SIGN system. It also meets the requirements of the USAIS and FGIS.

Advantages of the barcode reader:

Antireflected backlight, 3500K LED for accelerated reading.
Scan labels with 20% contrast.
Recognition of damaged barcodes.
Reading data from complex surfaces.
Automatic activation when the code is presented.
Temperature for reading: from 0 ° C to 50 °C.
The warranty is valid for 3 years.

You can buy a barcode reader with delivery in Russia. When ordering on the website, favorable prices from the manufacturer apply. You can order delivery to the company's address or to the pick-up point.

To make a purchase, call us by phone or leave a request. A manager will answer you and help you choose the equipment for your business.

13 MIL

40-200 mm

5 MIL

30-90 mm

Analogues of manufacturers

Datalogic, Zebra, Mindeo, Sunlux, Newland

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ, Medical

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Box dimensions, mm

180*75*105

Colour

White

Connection type

Wired

Drop test

It can withstand 50 falls from a height of 2 m on a concrete surface or multiple falls from a height of 1.5 m.

Equipment

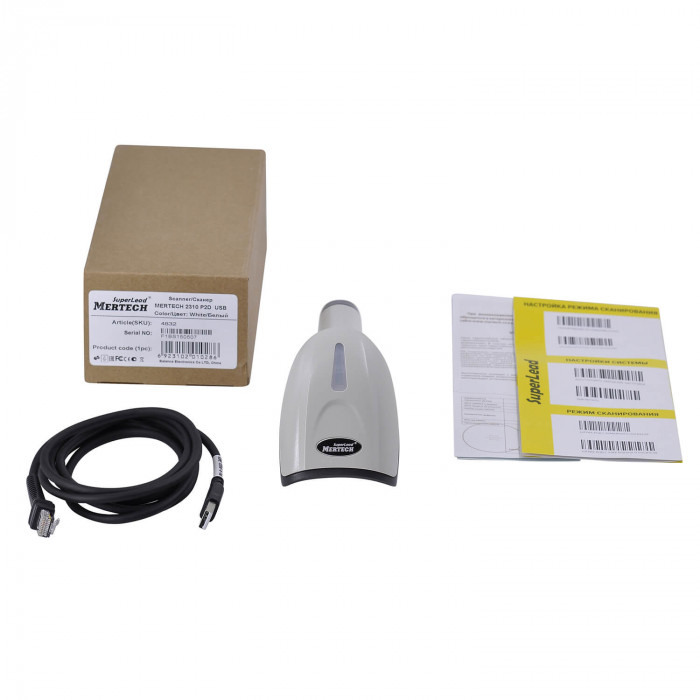

Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging

Gross weight

0.282 kg

Guarantee

3 years old

Interface

USB-COM emulation

Interface cable

USB

Masterbox sizes

53x42x45 cm

Masterbox weight, kg

15.217 kg

Minimum barcode contrast

20%

Minimum scan resolution

3,9 MIL

Number of trigger triggers without breakdowns

5 million

Operating temperature

-20°C ~ +40°C

Overall dimensions (WxDxH), mm

170*95*70

Package dimensions (1 pc.)

21.5x7.5x10 cm

Permissible humidity

0% ~ 95%

Quantity in the masterbox, pcs

50 pcs

Resistance to external influences

IP54

Scanner resolution

1280(H)x1080(V)Px

Scanner type

Manual

Scanning coverage angle

42º(h)x32º(v)

Scanning range

Up to 370 mm

Scanning speed

100 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal

Supported 2D barcodes

PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin

The backlight

Antireflected, 3500K LED

Type of scanning module

2D image

USAIS support

Yes

Weight

162 grams
