MERTECH 2310 P2D HR SUPERLEAD USB Wired Barcode Scanner

Name: MERTECH 2310 P2D HR SUPERLEAD USB Wired Barcode Scanner
SKU: 4559
Price: 74 USD
Availability: InStock

Product Code: 4559

Reviews: (0)

In Stock

$74.00

Specifications: (see all)

13 MIL

40-200 mm

5 MIL

30-90 mm

Analogues of manufacturers

Proton, Cipherlab, Globalpos, Urovo, Idzor, Moyros, Poscenter, Cino

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

The MERTECH 2310 is a hand—held wired scanner. The device recognizes all known 2D and 1D barcodes. The labels are scanned using SUPERLEAD technology.

Technical specifications

The device body is made of impact-resistant plastic and polycarbonate. Plastic color: black. Reader Size: 170*95*70 mm. The device weighs 125 grams. Repeated falls from a height of 2 m do not affect the operation of the electronic filling. Enclosure protection level from external influences: IP54.

Main features of the MERTECH 2310:

Scanning range: up to 370 mm.
Scanning at a speed of 100 scans/sec.
A scanning module with a resolution of 1280*1080 pixels.
Coverage angle: 42°(H)x32 °(V).
Trigger resource: 5 million triggers.
Sensitivity: 65° tilt, 360° rotation, 60° deviation.
Minimum reading resolution: 3.9 MIL.

Connection to the online sales register, smart terminal or computer is carried out via USB-HID. USB-COM and RS232 interfaces are also available as an option. The device connects to the online sales registers of Atol Sigma, Evotor, Shtrik-M, Mercury and other well-known brands.

Advantages of the model

The wired scanner was created specifically for the Honest SIGN system. The device complies with the requirements of the USAIS and FGIS. Compliance with the stated requirements is confirmed by the test results.

Advantages of the MERTECH 2310 reader:

Antireflected backlight, 3500K LED
Barcode recognition with 20% contrast.
Scan damaged labels.
Recognition of data from complex surfaces.
Automatic activation when applying a barcode.
Temperature for reading: from 0 ° C to 50 °C.
Warranty period: 3 years.

You can buy a wired 2D barcode scanner with delivery across Russia. When ordering on the MERTECH website, low prices from the manufacturer apply. You can arrange delivery to the company's address or pick up the goods at the pick-up point.

To buy 2D scanners, send a request or call by phone. The manager will answer you and help you choose the equipment for your business, arrange payment and delivery of the purchase.

13 MIL

40-200 mm

5 MIL

30-90 mm

Analogues of manufacturers

Proton, Cipherlab, Globalpos, Urovo, Idzor, Moyros, Poscenter, Cino

Areas of application

For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ

Audio and visual indication

Yes

Automatic scanning

Yes

Barcode Reading

1D, 2D

Barcode recognition from complex surfaces

Yes

Barcode sensitivity

Tilt ± 65° / 360° Rotation / Deviation ± 60 °

Body material

ABC + PC (plastic + polycarbonate)

Box dimensions, mm

180*75*105

Colour

Black

Connection type

Wired

Drop test

It can withstand 50 falls from a height of 2 m on a concrete surface or multiple falls from a height of 1.5 m.

Equipment

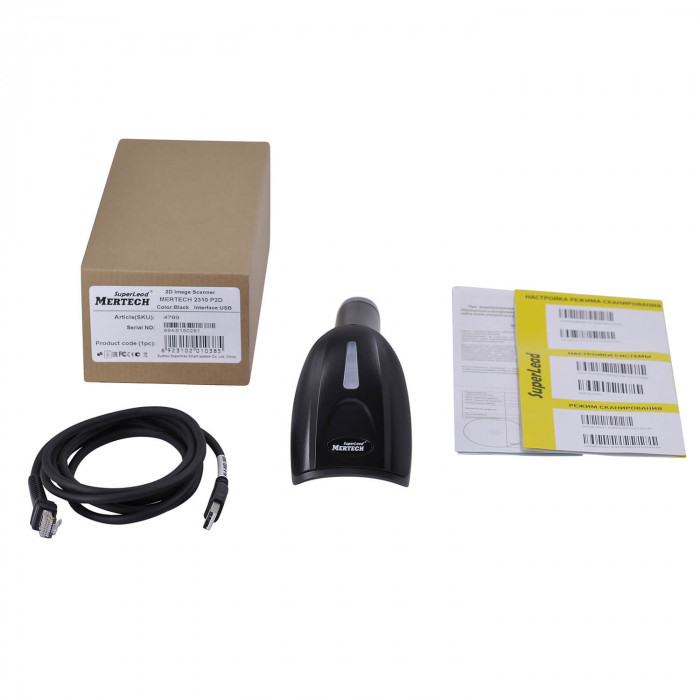

Scanner, USB type A cable (205 cm), Instructions, Warranty card, Packaging

Gross weight

0.277 kg

Guarantee

3 years old

Interface

USB-HID; USB-COM emulation; RS232 - optional

Interface cable

USB

Masterbox sizes

53x42x45 cm

Masterbox weight, kg

15.104 kg

Minimum barcode contrast

20%

Minimum scan resolution

3,9 MIL

Number of trigger triggers without breakdowns

5 million

Operating temperature

-20°C ~ +40°C

Overall dimensions (WxDxH), mm

170*95*70

Package dimensions (1 pc.)

21.5x7.5x10 cm

Permissible humidity

0% ~ 95%

Quantity in the masterbox, pcs

50 pcs

Resistance to external influences

IP54

Scanner resolution

1280(H)x1080(V)Px

Scanner type

Manual

Scanning coverage angle

42º(h)x32º(v)

Scanning range

Up to 370 mm

Scanning speed

100 scans/sec

Storage temperature

-40°C ~ +70°C

Support is an honest SIGN

Yes

Supported 1D barcodes

UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal

Supported 2D barcodes

PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin

The backlight

Antireflected, 3500K LED

Type of scanning module

2D image

USAIS support

Yes

Weight

162 grams
