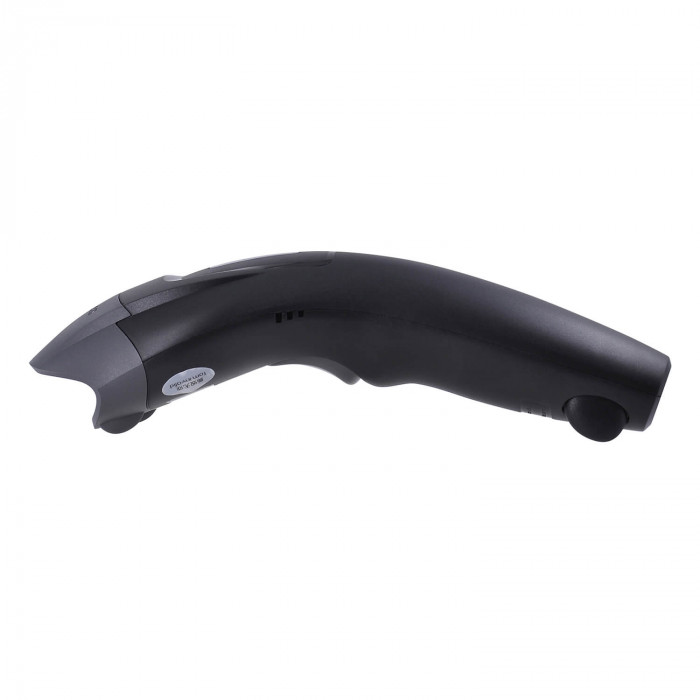

MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner

MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
MERTECH CL-610 BLE Dongle USB Black Wireless Barcode Scanner
Product Code: 4813
Reviews: (0)
In Stock
$101.00
Buy in one click
Specifications: (see all)
13 MIL
40-170 mm
5 MIL
30-90 mm
Analogues of manufacturers
Datalogic, Zebra, Mindeo, Sunlux, Newland
Areas of application
For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ
Audio and visual indication
Yes

The MERTECH CL-610 BLE Dongle is a new generation wireless handheld scanner. The model implements improved SUPERLEAD scanning technology. For remote reading, a BLE 5.0 connection is used. A key for data transfer is included.

Advantages of the model

We have implemented 6 important improvements in the new line of barcode readers.:

  1. Antireflect® backlight technology filters glare during scanning.
  2. The bright contrast sight speeds up aiming at the label. The sight is clearly visible at any lighting level.
  3. The advanced SUPERLEAD technology allows you to recognize large and small barcodes.
  4. Operation at a wide angle of inclination. The angle of coverage of the CL-610 model is 40 °(h) x 32 °(V).
  5. Increased reading distance. The CL-610 has a scanning distance of 37 cm.
  6. The Vibrocheck® system sends a vibration response when the code is successfully read. The vibration response duplicates the sound indication, which is convenient when working in noisy rooms.

The new generation of scanners can easily read damaged and blurred images. They recognize labels that are covered with a transparent film or pasted on glass. It is possible to read codes from the displays of electronic devices.

Technical specifications

The handheld reader is made of polycarbonate and plastic. The case and electronics can withstand drops from 1.5-1.8 m. The impact resistance of the case is confirmed by the results of drop tests. Enclosure protection class: IP 54.

BLE technology provides energy savings when working wirelessly. Connection distance to the database: up to 300 m. If the signal is lost, the data is stored in the built-in memory. Device memory capacity: 512 KB (4000 USAIS codes).

Installed battery capacity: 2600 mAh. One battery charge is enough for a full shift.

How to place an order

On the MERTECH website, you can buy barcode scanners at the manufacturer's price. We quickly deliver equipment to any region of Russia. Leave a request on the website, and we will prepare a favorable offer for you.

13 MIL
40-170 mm
5 MIL
30-90 mm
Analogues of manufacturers
Datalogic, Zebra, Mindeo, Sunlux, Newland
Areas of application
For EVOTOR, For marking shoes, For 1C, For VLSI, For alcohol, For pharmacy, For cigarettes, For perfumes, For EGAIS, For warehouse, For store, For marking, For Honest sign, For PVZ
Audio and visual indication
Yes
Automatic scanning
Yes
Barcode Reading
1D, 2D
Barcode recognition from complex surfaces
Yes
Barcode sensitivity
Tilt ± 65° / 360° Rotation / Deviation ± 60 °
Battery capacity
2600 mAh
Body material
ABC + PC (plastic + polycarbonate)
Box dimensions, mm
215*75*100
Built-in memory
Yes
Colour
Black
Connection type
Wireless
Drop test
It can withstand 30 falls from a height of 1.8 m on a concrete surface or multiple falls from a height of 1.5 m.
Equipment
Scanner, USB Receiver, USB type A - USB type C cable (105 cm), Instructions, Warranty card, Packaging
Gross weight
0.256 kg
Guarantee
3 years old
Interface
USB-HID; USB-COM emulation; Bluetooth - BLE 5.0
Masterbox sizes
53x42x45 cm
Masterbox weight, kg
14.1 kg
Minimum barcode contrast
20%
Minimum scan resolution
3,9 MIL
Number of trigger triggers without breakdowns
5 million
Operating temperature
0°C ~ +50°C
Overall dimensions (WxDxH), mm
190*65*55
Package dimensions (1 pc.)
21.5x7.5x10 cm
Permissible humidity
0% ~ 95%
Quantity in the masterbox, pcs
50 pcs
Receiver power supply
5V/100mA
Resistance to external influences
IP54
Scanner power supply
5V/1000mA
Scanner resolution
640(H)x480(V)Px
Scanner type
Manual
Scanning coverage angle
40º(h)x32º(v)
Scanning range
Up to 370 mm
Scanning speed
100 scans/sec
Storage temperature
-40°C ~ +70°C
Support is an honest SIGN
Yes
Supported 1D barcodes
UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal
Supported 2D barcodes
PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin
The amount of internal memory
512 KB (more than 4,000 USAIS codes)
The backlight
Antireflected, 3500K LED
Transmission range
Up to 300 m
Type of scanning module
2D image
USAIS support
Yes
Weight
125 gr.
